Delta Industrial Automation Industrial Ethernet Solution DVW-ANTRM7G Series High-Gain Antenna Hardware Installation Guide
Summary
Enhance your wireless coverage with the Delta DVW Series High-gain Antenna system, a complete solution for robust WLAN RF networking. This package includes the high-gain antenna unit, magnetic base, and necessary connecting cables. The included manual provides comprehensive, step-by-step instructions dedicated solely to ensuring smooth and proper installation of every component. This essential guide is designed for users needing reliable setup tutorials for optimal placement and connectivity of their powerful network antennas.
Page 1 Text Content

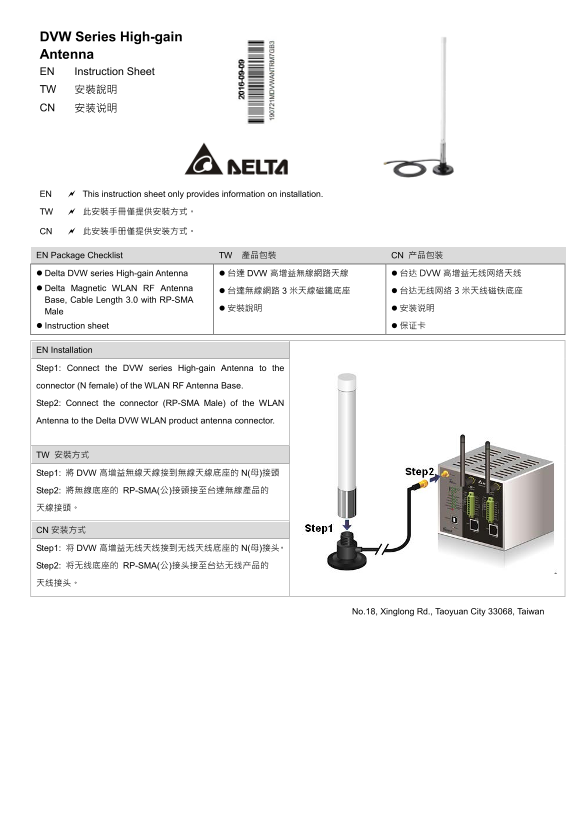

DVW Series High-gain Antenna EN Instruction Sheet TW 安裝說明 CN 安装说明
EN This instruction sheet only provides information on installation.
TW 此安裝手冊僅提供安裝方式。
CN 此安装手册僅提供安装方式。
EN Package Checklist TW 產品包裝 CN 产品包装
Delta DVW series High-gain Antenna 台達 DVW 高增益無線網路天線 台达 DVW 高增益无线网络天线 Delta Magnetic WLAN RF Antenna
Base, Cable Length 3.0 with RP-SMA
Male Instruction sheet 保证卡
EN Installation
Step1: Connect the DVW series High-gain Antenna to the
connector (N female) of the WLAN RF Antenna Base.
Step2: Connect the connector (RP-SMA Male) of the WLAN
Antenna to the Delta DVW WLAN product antenna connector.
TW 安裝方式
Step1: 將 DVW 高增益無線天線接到無線天線底座的 N(母)接頭
Step2: 將無線底座的 RP-SMA(公)接頭接至台達無線產品的
CN安装方式
Step1: 将 DVW 高增益无线天线接到无线天线底座的 N(母)接头。
Step2: 将无线底座的 RP-SMA(公)接头接至台达无线产品的
No.18, Xinglong Rd., Taoyuan City 33068, Taiwan
Page Summary Contents For Delta Industrial Automation Industrial Ethernet Solution DVW-ANTRM7G Series High-Gain Antenna Hardware Installation Guide
Manual Details
| Brand | Delta |
|---|---|
| Pages | 1 |
| File Size | 147.26 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I properly install the DVW antenna system?
First, connect the DVW high-gain Antenna to the N female connector on the WLAN RF Antenna Base. Then, attach the base's RP-SMA Male connector to the Delta DVW product's main antenna connection.
What core components are included in the package?
The package contains the Delta DVW Series High-gain Antenna, a Magnetic WLAN RF Antenna Base (with an RP-SMA Male connector), and installation instruction sheets.
Which connectors should I use for connecting the units?
You must connect the antenna to the N female connector on the base. The base then connects to the Delta WLAN product via its dedicated RP-SMA male connector.
