Dell Vostro 5502 Statement of Volatility
Summary
The Statement of Volatility for Dell Vostro 5502 documents all volatile and non-volatile components on the system board. It details storage components (SSD drives), system BIOS/EC firmware, Thunderbolt EEPROM, USB-C PD firmware, LCD panel EDID, DDR4 memory, RTC CMOS, video memory, Intel ME firmware, security controller, and TPM. Target users are IT security professionals, compliance auditors, and data sanitization specialists.

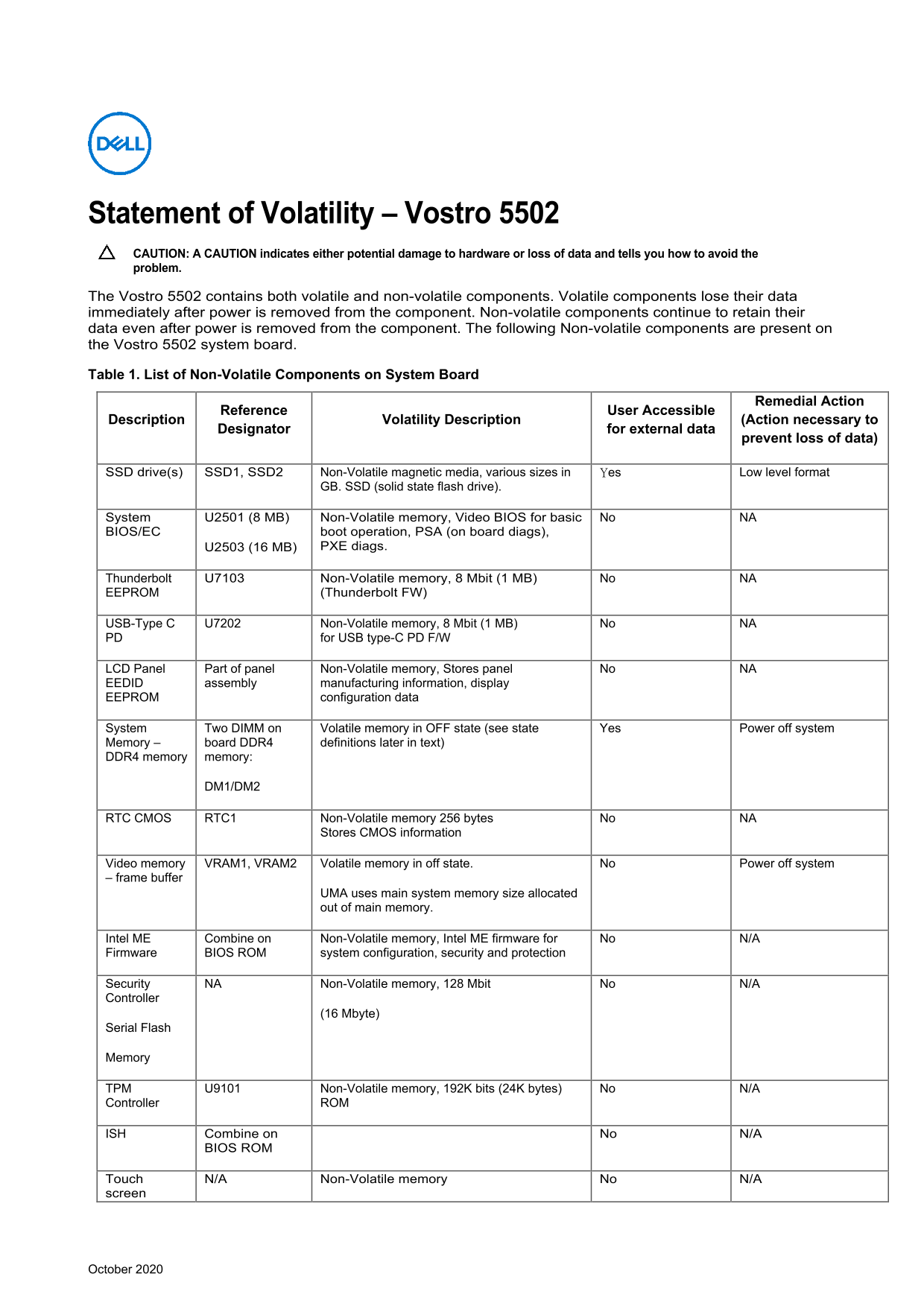

Page 1 Text Content
Statement of Volatility – Vostro 5502 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Vostro 5502 contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Vostro 5502 system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action
Description Reference (Action necessary to
Designator Volatility Description User Accessible for external data
prevent loss of data)
SSD drive(s) SSD1, SSD2 Non-Volatile magnetic media, various sizes in Yes Low level format
GB. SSD (solid state flash drive).
System U2501 (8 MB) Non-Volatile memory, Video BIOS for basic No NA BIOS/EC boot operation, PSA (on board diags),
U2503 (16 MB) PXE diags.
Thunderbolt U7103 Non-Volatile memory, 8 Mbit (1 MB) No NA EEPROM (Thunderbolt FW)
USB-Type C U7202 Non-Volatile memory, 8 Mbit (1 MB) No NA PD for USB type-C PD F/W
LCD Panel Part of panel Non-Volatile memory, Stores panel No NA EEDID assembly manufacturing information, display EEPROM configuration data
System Two DIMM on Volatile memory in OFF state (see state Yes Power off system Memory – board DDR4 definitions later in text) DDR4 memory memory:
DM1/DM2
RTC CMOS RTC1 Non-Volatile memory 256 bytes No NA
Stores CMOS information
Video memory VRAM1, VRAM2 Volatile memory in off state. No Power off system – frame buffer
UMA uses main system memory size allocated out of main memory.
Intel ME Combine on Non-Volatile memory, Intel ME firmware for No N/A Firmware BIOS ROM system configuration, security and protection
Security NA Non-Volatile memory, 128 Mbit No N/A Controller
(16 Mbyte)
Serial Flash
Memory
TPM U9101 Non-Volatile memory, 192K bits (24K bytes) No N/A Controller ROM
ISH Combine on
BIOS ROM No N/A
Touch N/A Non-Volatile memory No N/A screen
October 2020
Page Summary Contents For Dell Vostro 5502 Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 222.53 KB |
| Published | June 25, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Is all data lost if the system is unplugged?
No. Non-volatile components like SSDs, BIOS chips, and EEPROMs retain data even after power removal.
What should I do to prevent loss of data stored in non-volatile memory?
For attached external media (like flash drives), backup the data manually. For onboard chips, no action is specified to guarantee retention.
Are there volatile components on the Vostro 5502 system board?
Yes. Volatile memory includes DDR4 RAM and Video vRAM (VRAM1, VRAM2). All these lose their data immediately when power is removed.
What constitutes a 'primary power loss'?
Primary power loss is defined as unplugging the power cord and removing the battery. This destroys user data on the memory (DDR4).
