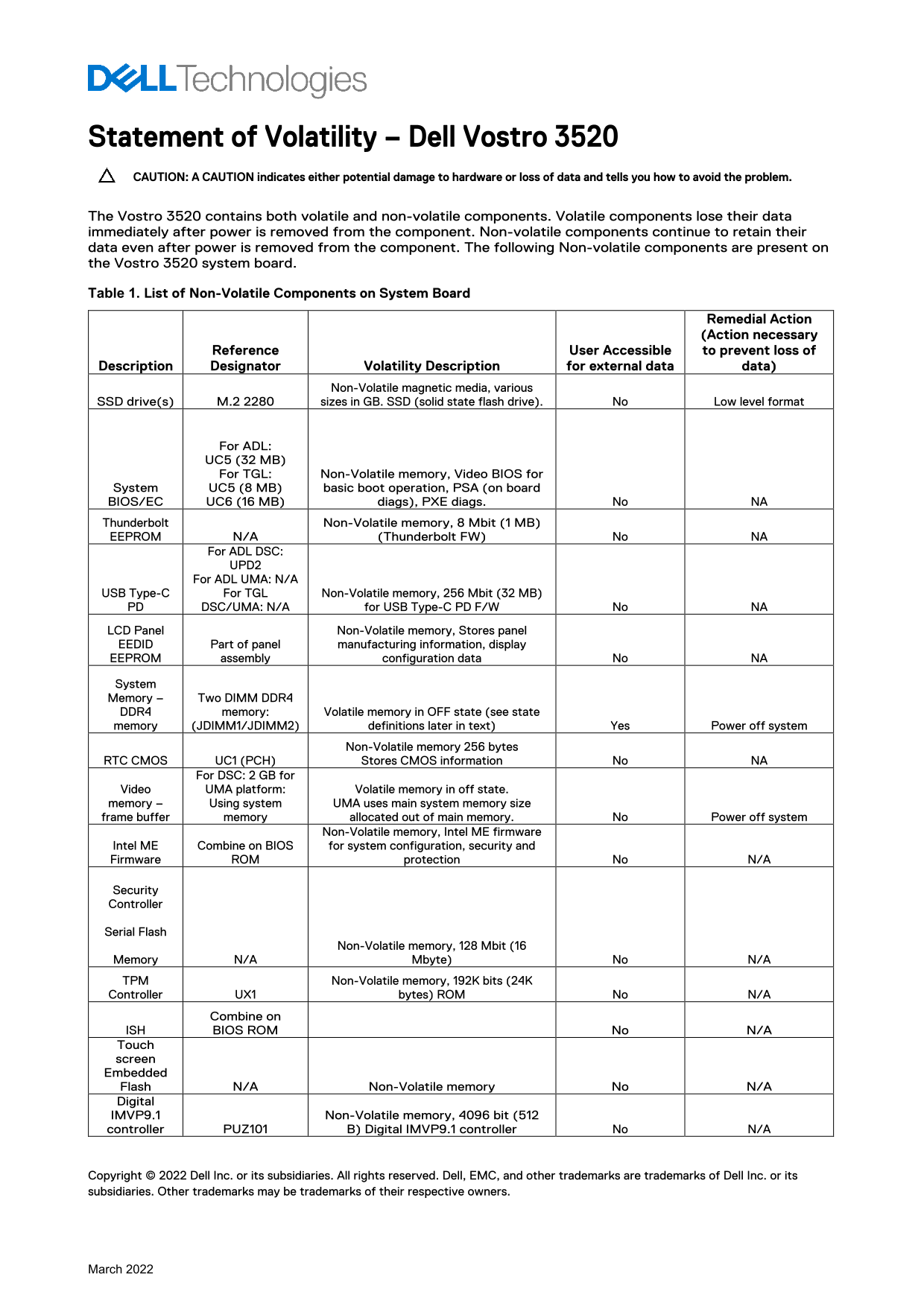

Statement of Volatility – Dell Vostro 3520 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Vostro 3520 contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Vostro 3520 system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action necessary
Reference User Accessible to prevent loss of
Description Designator Volatility Description for external data data)
Non-Volatile magnetic media, various
SSD drive(s) M.2 2280 sizes in GB. SSD (solid state flash drive). No Low level format
For ADL: UC5 (32 MB) For TGL: Non-Volatile memory, Video BIOS for System UC5 (8 MB) basic boot operation, PSA (on board
BIOS/EC UC6 (16 MB) diags), PXE diags. No NA Thunderbolt Non-Volatile memory, 8 Mbit (1 MB) EEPROM N/A (Thunderbolt FW) No NA
For ADL DSC: UPD2 For ADL UMA: N/A USB Type-C For TGL Non-Volatile memory, 256 Mbit (32 MB)
PD DSC/UMA: N/A for USB Type-C PD F/W No NA
LCD Panel Non-Volatile memory, Stores panel EEDID Part of panel manufacturing information, display EEPROM assembly configuration data No NA
System
Memory – Two DIMM DDR4 DDR4 memory: Volatile memory in OFF state (see state memory (JDIMM1/JDIMM2) definitions later in text) Yes Power off system
Non-Volatile memory 256 bytes
RTC CMOS UC1 (PCH) Stores CMOS information No NA
For DSC: 2 GB for
Video UMA platform: Volatile memory in off state. memory – Using system UMA uses main system memory size frame buffer memory allocated out of main memory. No Power off system
Non-Volatile memory, Intel ME firmware
Intel ME Combine on BIOS for system configuration, security and Firmware ROM protection No N/A
Security Controller
Serial Flash
Non-Volatile memory, 128 Mbit (16
Memory N/A Mbyte) No N/A TPM Non-Volatile memory, 192K bits (24K Controller UX1 bytes) ROM No N/A
Combine on
ISH BIOS ROM No N/A Touch screen Embedded Flash N/A Non-Volatile memory No N/A Digital IMVP9.1 Non-Volatile memory, 4096 bit (512 controller PUZ101 B) Digital IMVP9.1 controller No N/A
Copyright © 2022 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
March 2022
