Dell Vostro 3525 Statement of Volatility
Summary
This is the Statement of Volatility for the Dell Vostro 3525 laptop. The document details both volatile and non-volatile components present on the system board, including SSD drives, BIOS/EC firmware, Thunderbolt EEPROM, USB-C PD firmware, LCD panel EEPROM, DDR4 memory, RTC CMOS, video memory, Intel ME firmware, security controller memory, and TPM. It specifies which components retain data after power loss and identifies user-accessible components. Target users are IT security professionals, data sanitization technicians, and organizations requiring hardware-level data destruction compliance and asset disposal procedures.

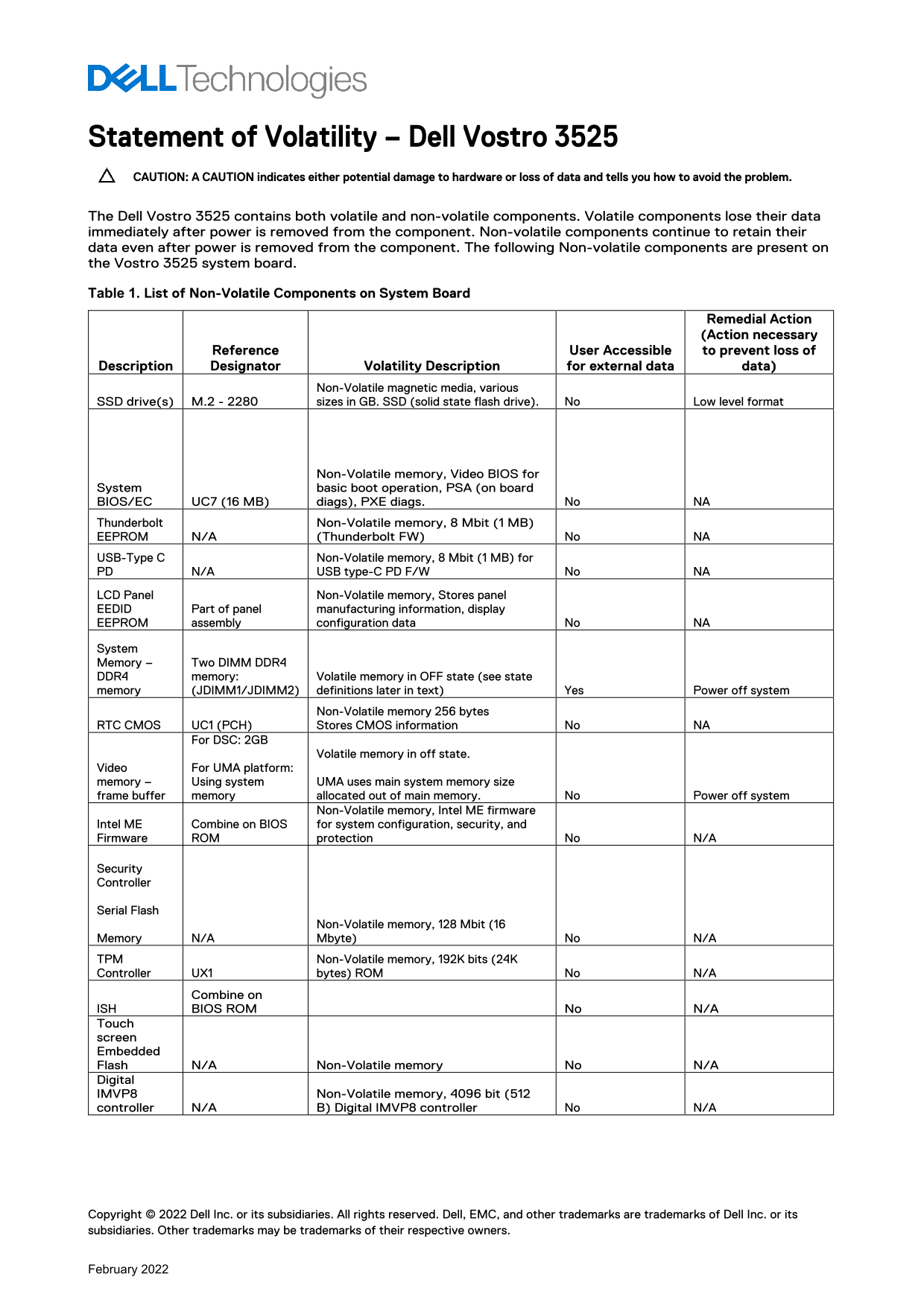

Page 1 Text Content
Statement of Volatility – Dell Vostro 3525 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Vostro 3525 contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Vostro 3525 system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action necessary
Reference User Accessible to prevent loss of
Description Designator Volatility Description for external data data)
Non-Volatile magnetic media, various
SSD drive(s) M.2 - 2280 sizes in GB. SSD (solid state flash drive). No Low level format
Non-Volatile memory, Video BIOS for System basic boot operation, PSA (on board
BIOS/EC UC7 (16 MB) diags), PXE diags. No NA Thunderbolt Non-Volatile memory, 8 Mbit (1 MB) EEPROM N/A (Thunderbolt FW) No NA USB-Type C Non-Volatile memory, 8 Mbit (1 MB) for PD N/A USB type-C PD F/W No NA
LCD Panel Non-Volatile memory, Stores panel EEDID Part of panel manufacturing information, display EEPROM assembly configuration data No NA
System
Memory – Two DIMM DDR4 DDR4 memory: Volatile memory in OFF state (see state
memory (JDIMM1/JDIMM2) definitions later in text) Yes Power off system
Non-Volatile memory 256 bytes
RTC CMOS UC1 (PCH) Stores CMOS information No NA
For DSC: 2GB
Volatile memory in off state.
Video For UMA platform: memory – Using system UMA uses main system memory size frame buffer memory allocated out of main memory. No Power off system
Non-Volatile memory, Intel ME firmware
Intel ME Combine on BIOS for system configuration, security, and Firmware ROM protection No N/A
Security Controller
Serial Flash
Non-Volatile memory, 128 Mbit (16
Memory N/A Mbyte) No N/A TPM Non-Volatile memory, 192K bits (24K Controller UX1 bytes) ROM No N/A
Combine on
ISH BIOS ROM No N/A Touch screen Embedded Flash N/A Non-Volatile memory No N/A Digital IMVP8 Non-Volatile memory, 4096 bit (512 controller N/A B) Digital IMVP8 controller No N/A
Copyright © 2022 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
February 2022
Page Summary Contents For Dell Vostro 3525 Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 161.53 KB |
| Published | June 23, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the difference between volatile and non-volatile components on this system?
Volatile components lose data immediately when power is removed, while non-volatile components retain data even after power is removed.
Where is the system BIOS located?
The BIOS is located in the System BIOS/EC UC7 component on the system board.
How do I prevent data loss from volatile memory?
Always power off the system to ensure volatile memory, such as system memory, is cleared.
What types of non-volatile storage are available on the Vostro 3525?
The system includes an M.2 SSD drive and a 128 Mbit Serial Flash memory.
