Dell Vostro 14 5410 Statement of Volatility
Summary
Statement of volatility for the Dell Vostro 14 5410 business laptop, documenting all volatile and non-volatile memory components on the system board. Non-volatile items include SSD1/SSD2 solid state storage, 32MB System BIOS U2504 (with ePSA diagnostics, Intel ME, ISH firmware), Thunderbolt EEPROM U7103 (8 Mbit firmware), USB Type-C PD firmware U7202, LCD Panel EEDID EEPROM, 256-byte RTC CMOS, and embedded Flash U2401 (256KB). DDR4 system memory via two DIMMs (4-32GB) is volatile on power remova

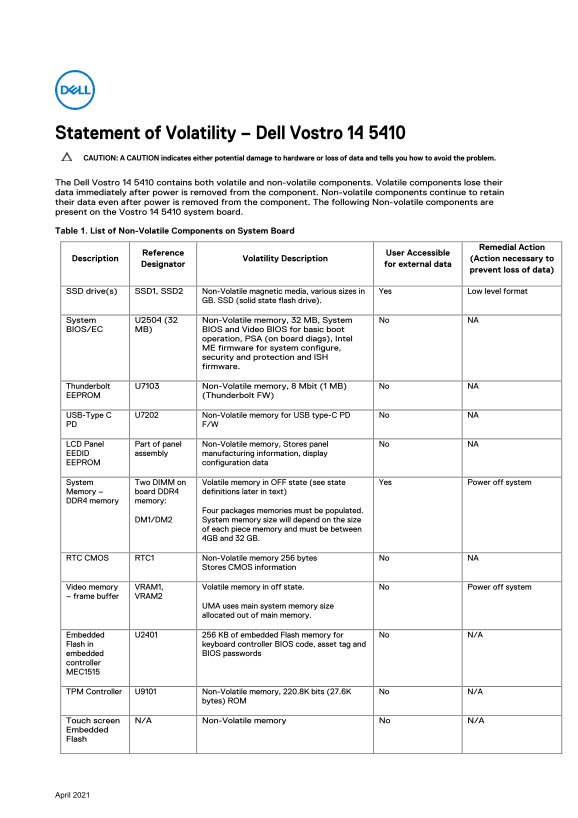

Page 1 Text Content
Statement of Volatility – Dell Vostro 14 5410 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Vostro 14 5410 contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Vostro 14 5410 system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action
Reference User Accessible
Description Volatility Description (Action necessary to
Designator for external data
prevent loss of data)
SSD drive(s) SSD1, SSD2 Non-Volatile magnetic media, various sizes in Yes Low level format
GB. SSD (solid state flash drive).
System U2504 (32 Non-Volatile memory, 32 MB, System No NA BIOS/EC MB) BIOS and Video BIOS for basic boot
operation, PSA (on board diags), Intel ME firmware for system configure, security and protection and ISH firmware.
Thunderbolt U7103 Non-Volatile memory, 8 Mbit (1 MB) No NA EEPROM (Thunderbolt FW)
USB-Type C U7202 Non-Volatile memory for USB type-C PD No NA
PD F/W
LCD Panel Part of panel Non-Volatile memory, Stores panel No NA
EEDID assembly manufacturing information, display
EEPROM configuration data
System Two DIMM on Volatile memory in OFF state (see state Yes Power off system
Memory – board DDR4 definitions later in text) DDR4 memory memory:
Four packages memories must be populated.
DM1/DM2 System memory size will depend on the size
of each piece memory and must be between 4GB and 32 GB.
RTC CMOS RTC1 Non-Volatile memory 256 bytes No NA
Stores CMOS information
Video memory VRAM1, Volatile memory in off state. No Power off system
– frame buffer VRAM2
UMA uses main system memory size allocated out of main memory.
Embedded U2401 256 KB of embedded Flash memory for No N/A
Flash in keyboard controller BIOS code, asset tag and
embedded BIOS passwords
controller MEC1515
TPM Controller U9101 Non-Volatile memory, 220.8K bits (27.6K No N/A
bytes) ROM
Touch screen N/A Non-Volatile memory No N/A
Embedded Flash
April 2021
