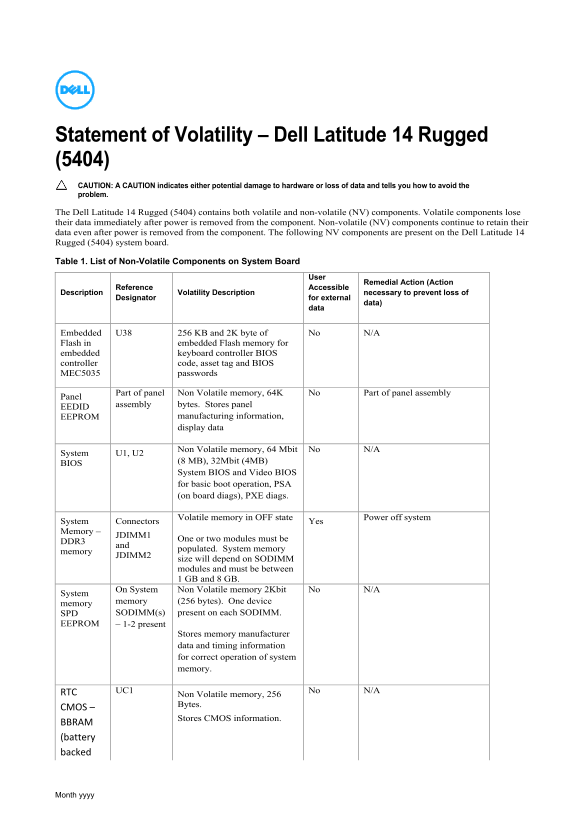

Statement of Volatility – Dell Latitude 14 Rugged (5404) CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Latitude 14 Rugged (5404) contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell Latitude 14 Rugged (5404) system board. Table 1. List of Non-Volatile Components on System Board

Remedial Action (Action

Reference Accessible

Description Volatility Description necessary to prevent loss of

Designator for external

data)

Embedded U38 256 KB and 2K byte of No N/A Flash in embedded Flash memory for embedded keyboard controller BIOS controller code, asset tag and BIOS MEC5035 passwords

Part of panel Non Volatile memory, 64K No Part of panel assembly

Panel

assembly bytes. Stores panel

EEDID

EEPROM manufacturing information, display data

No N/A

System U1, U2 Non Volatile memory, 64 Mbit

(8 MB), 32Mbit (4MB)

System BIOS and Video BIOS for basic boot operation, PSA (on board diags), PXE diags.

Volatile memory in OFF state

System Connectors Yes Power off system Memory –

JDIMM1

One or two modules must be

populated. System memory

memory

JDIMM2

size will depend on SODIMM modules and must be between 1 GB and 8 GB.

On System Non Volatile memory 2Kbit No N/A

System

memory (256 bytes). One device

memory

SPD SODIMM(s) present on each SODIMM.

EEPROM – 1-2 present

Stores memory manufacturer data and timing information for correct operation of system memory.

RTC UC1 Non Volatile memory, 256 No N/A

Bytes.

CMOS –

Stores CMOS information.

BBRAM (battery backed

Month yyyy
