Dell Latitude 5285 Statement of Volatility
Summary
Statement of volatility for the Dell Latitude 5285 2-in-1 detachable tablet, documenting all volatile and non-volatile memory components on the system board. Non-volatile items include M.2-2280 SSD storage, 128Mbit (16MB) System BIOS UH1 with PSA and PXE diagnostics, USB Type-C PD firmware U22, LCD Panel EEDID EEPROM, 256-byte RTC CMOS, Intel ME firmware, and Security Controller U1 (32 Mbit, up-sell USH). LPDDR3 system memory (four on-board packages, 4-16GB) is volatile on power removal.

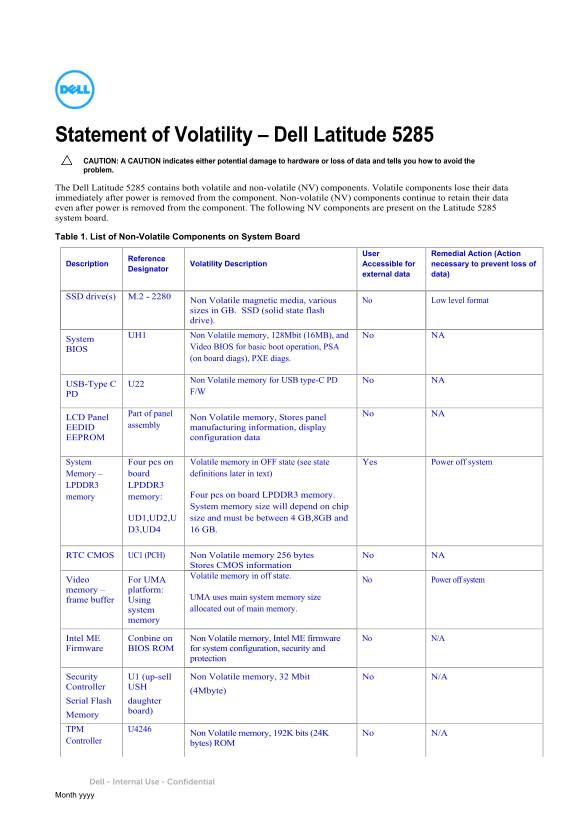

Page 1 Text Content
Statement of Volatility – Dell Latitude 5285 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Latitude 5285 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Latitude 5285 system board. Table 1. List of Non-Volatile Components on System Board
User Remedial Action (Action
Reference
Description Volatility Description Accessible for necessary to prevent loss of
Designator
external data data)
SSD drive(s) M.2 - 2280 Non Volatile magnetic media, various
No Low level format
sizes in GB. SSD (solid state flash drive).
UH1 Non Volatile memory, 128Mbit (16MB), and No NA
System
Video BIOS for basic boot operation, PSA
(on board diags), PXE diags.
No NA
USB-Type C U22 Non Volatile memory for USB type-C PD
Part of panel No NA
LCD Panel Non Volatile memory, Stores panel
assembly
EEDID manufacturing information, display EEPROM configuration data
System Four pcs on Volatile memory in OFF state (see state Yes Power off system Memory – board definitions later in text) LPDDR3 LPDDR3
memory memory: Four pcs on board LPDDR3 memory. System memory size will depend on chip
UD1,UD2,U size and must be between 4 GB,8GB and D3,UD4 16 GB.
RTC CMOS UC1 (PCH) Non Volatile memory 256 bytes No NA
Stores CMOS information Volatile memory in off state.
Video For UMA No Power off system
memory – platform:
UMA uses main system memory size
frame buffer Using
system allocated out of main memory.
memory
Intel ME Conbine on Non Volatile memory, Intel ME firmware No N/A
Firmware BIOS ROM for system configuration, security and
protection
Security U1 (up-sell Non Volatile memory, 32 Mbit No N/A
Controller USH
(4Mbyte)
Serial Flash daughter
board)
Memory TPM U4246 Non Volatile memory, 192K bits (24K
No N/A
Controller
bytes) ROM
Dell - Internal Use - Confidential Month yyyy
Page Summary Contents For Dell Latitude 5285 Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 502.18 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What components lose data when power is fully removed?
Volatile components, like system LPDDR3 memory (RAM), lose data immediately.
Which types of data are stored on non-volatile components?
Non-volatile components store permanent operating system configurations, BIOS settings, and SSD data, even without power.
What is the impact of removing the main power cord or battery?
Primary power loss destroys all user data on the memory (LPDDR3) and can destroy data stored in other volatile parts.
How does data retention differ between S4 and S5 power states?
S4 ('hibernate') saves system context to non-volatile storage. S5 ('soft' off state) saves no context, requiring a full boot.
