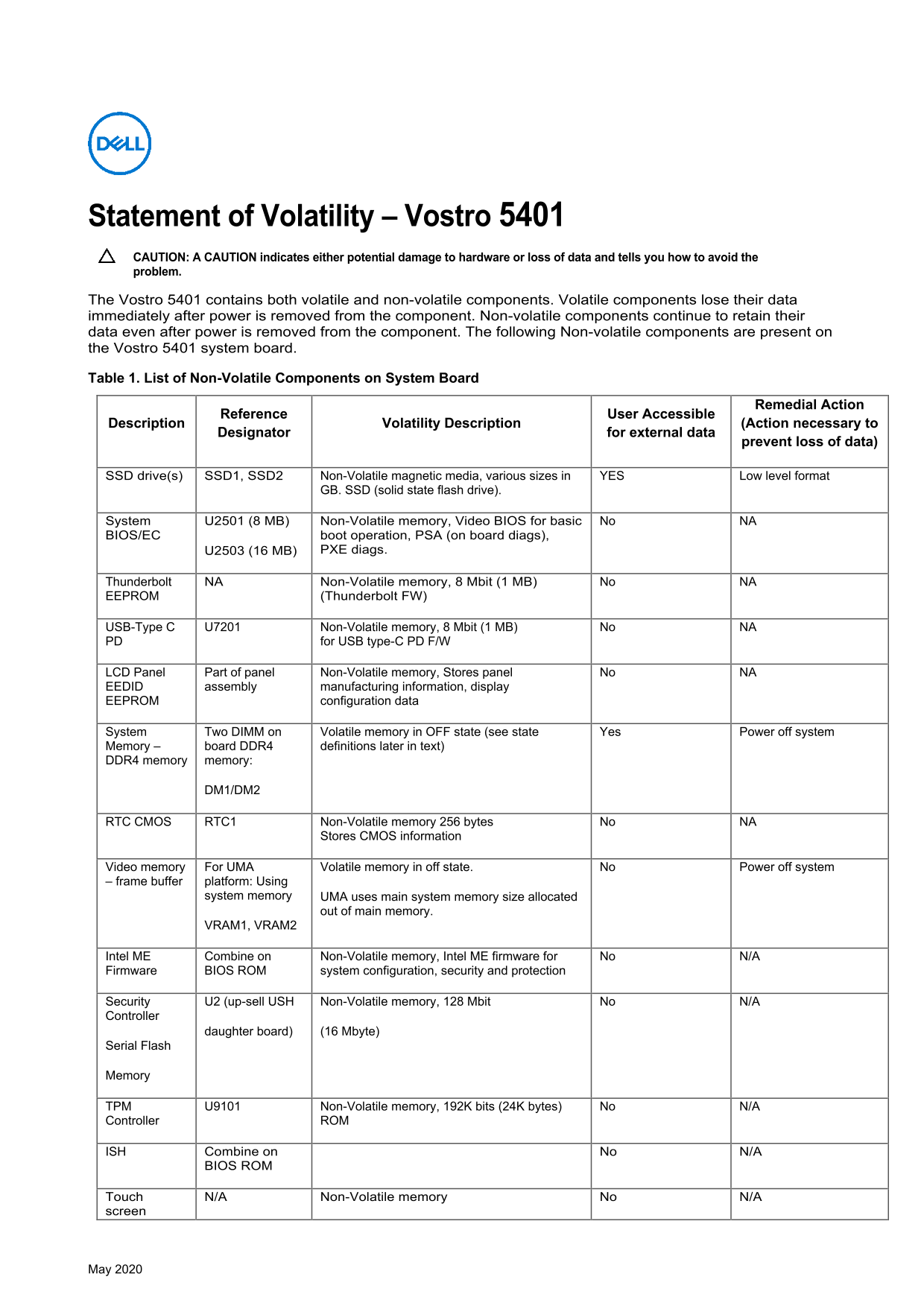

Page 1 Text Content
Statement of Volatility – Vostro 5401 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Vostro 5401 contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Vostro 5401 system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action Description Reference (Action necessary to
Designator Volatility Description User Accessible for external data
prevent loss of data)
SSD drive(s) SSD1, SSD2 Non-Volatile magnetic media, various sizes in YES Low level format
GB. SSD (solid state flash drive).
System U2501 (8 MB) Non-Volatile memory, Video BIOS for basic No NA BIOS/EC boot operation, PSA (on board diags),
U2503 (16 MB) PXE diags.
Thunderbolt NA Non-Volatile memory, 8 Mbit (1 MB) No NA EEPROM (Thunderbolt FW)
USB-Type C U7201 Non-Volatile memory, 8 Mbit (1 MB) No NA PD for USB type-C PD F/W
LCD Panel Part of panel Non-Volatile memory, Stores panel No NA EEDID assembly manufacturing information, display EEPROM configuration data
System Two DIMM on Volatile memory in OFF state (see state Yes Power off system Memory – board DDR4 definitions later in text) DDR4 memory memory:
DM1/DM2
RTC CMOS RTC1 Non-Volatile memory 256 bytes No NA
Stores CMOS information
Video memory For UMA Volatile memory in off state. No Power off system – frame buffer platform: Using
system memory UMA uses main system memory size allocated
out of main memory.
VRAM1, VRAM2
Intel ME Combine on Non-Volatile memory, Intel ME firmware for No N/A Firmware BIOS ROM system configuration, security and protection
Security U2 (up-sell USH Non-Volatile memory, 128 Mbit No N/A Controller
daughter board) (16 Mbyte)
Serial Flash
Memory
TPM U9101 Non-Volatile memory, 192K bits (24K bytes) No N/A Controller ROM
ISH Combine on
BIOS ROM No N/A
Touch N/A Non-Volatile memory No N/A screen
May 2020
