Dell E2318HN - Statement of Volatility
Summary
Dell E2318HN/HR/HX monitor Statement of Volatility documenting all volatile and non-volatile memory components on the system board. Lists four non-volatile components: an MX25L4026E 4Mbit Flash memory (U502) storing firmware, Delta-E and uniformity calibration data; an FM24C16D 16Kbit EEPROM (U503) storing scaler data; and two 24C02 2Kbit EEPROMs (U301, U401) storing VGA and HDMI EDID respectively. All non-volatile components are placed on the Interface Board with hardware/software write protect

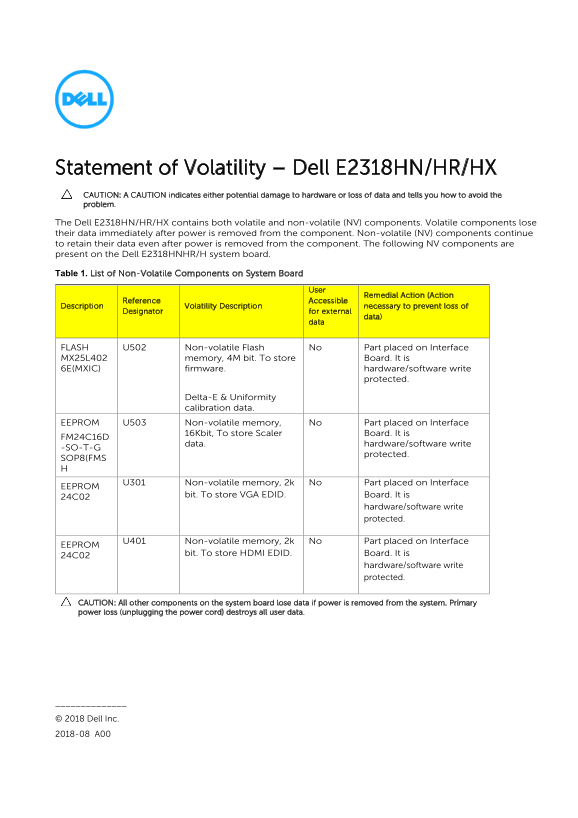

Page 1 Text Content
Statement of Volatility – Dell E2318HN/HR/HX CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell E2318HN/HR/HX contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell E2318HNHR/H system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference Accessible
Description Volatility Description necessary to prevent loss of
Designator for external
data)
FLASH U502 Non-volatile Flash No Part placed on Interface MX25L402 memory, 4M bit. To store Board. It is 6E(MXIC) firmware. hardware/software write
protected.
Delta-E & Uniformity calibration data.
EEPROM U503 Non-volatile memory, No Part placed on Interface
16Kbit, To store Scaler Board. It is
FM24C16D
data. hardware/software write
-SO-T-G
protected.
SOP8(FMS
U301 Non-volatile memory, 2k No Part placed on Interface
EEPROM
bit. To store VGA EDID. Board. It is
hardware/software write protected.
U401 Non-volatile memory, 2k No Part placed on Interface
EEPROM
bit. To store HDMI EDID. Board. It is
hardware/software write protected.
CAUTION: All other components on the system board lose data if power is removed from the system. Primary power loss (unplugging the power cord) destroys all user data.
© 2018 Dell Inc. 2018-08 A00
Page Summary Contents For Dell E2318HN - Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 59.96 KB |
| Published | May 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What happens to the Dell E2318HN after losing power?
Volatile components lose their data immediately; non-volatile (NV) components retain data even without power.
Which types of memory components are 'non-volatile' on this system board?
The system board features FLASH (MX25L402), EEPROM (FM24C16D), and other EEPROMs (24C02 U301, 24C02 U401).
How is user data protected on the non-volatile components?
The FLASH, FM24C16D, and EEPROM components are hardware/software write protected and generally not accessible to users by placement on an Interface Board.
