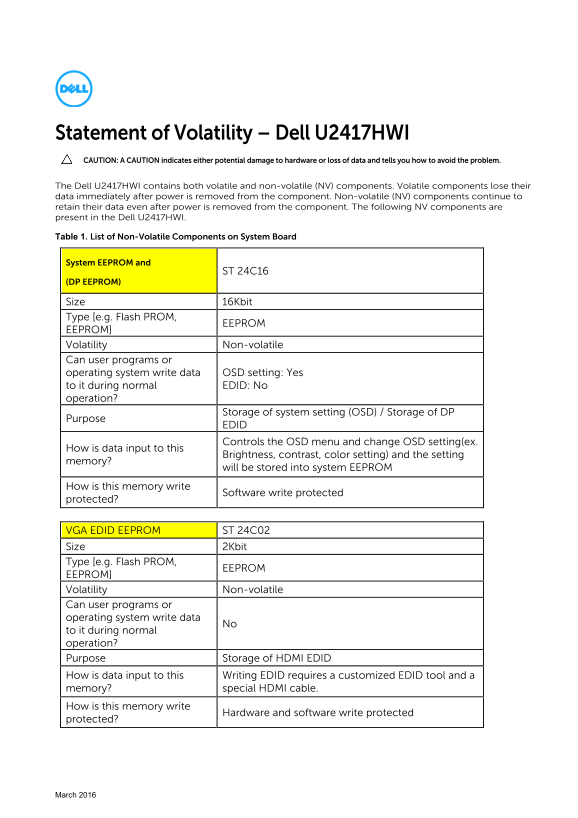

Statement of Volatility – Dell U2417HWI CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell U2417HWI contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present in the Dell U2417HWI. Table 1. List of Non-Volatile Components on System Board
System EEPROM and
ST 24C16
(DP EEPROM)
Size 16Kbit Type [e.g. Flash PROM,
EEPROM
EEPROM] Volatility Non-volatile Can user programs or operating system write data OSD setting: Yes to it during normal EDID: No operation?
Storage of system setting (OSD) / Storage of DP
Purpose
EDID Controls the OSD menu and change OSD setting(ex.
How is data input to this
Brightness, contrast, color setting) and the setting
memory?
will be stored into system EEPROM
How is this memory write
Software write protected
protected?
VGA EDID EEPROM ST 24C02 Size 2Kbit Type [e.g. Flash PROM,
EEPROM
EEPROM] Volatility Non-volatile Can user programs or operating system write data
to it during normal operation? Purpose Storage of HDMI EDID How is data input to this Writing EDID requires a customized EDID tool and a memory? special HDMI cable. How is this memory write
Hardware and software write protected
protected?
March 2016
Page Summary Contents For Dell U2417HWi - Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 175.70 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What happens to the data stored on volatile components after power is removed?
Volatile components lose their data immediately after power is removed from the component.
Can I program or change settings in the System EEPROM myself?
Yes, you can change OSD settings (e.g., Brightness) by using the controls and the setting will be stored into system EEPROM.
Is user access restricted for critical flash memory types?
The VGA EDID EEPROM is hardware and software write protected; the Flash ROM MXIC MX25L40 is software write protected.
Which component stores the full OS image, and how can it be loaded?
NAND Flash (eMMC) stores the OS image. Loading this memory requires a O.S download tool and software.
