Dell Technology Rail, Bracket, and Tray Guide June 2021 Owner's Manual
Summary
This document provides technical specifications and installation instructions for rack rails, brackets, and trays used with Dell server and storage systems. It includes detailed technical drawings, dimensions, weight capacities, and compatibility information for various rail kits, mounting brackets, and cable management trays. The guide covers rack rails technical details, brackets specifications, and trays technical details to support proper rack mounting of Dell equipment. Target users are data center technicians, system integrators, and IT infrastructure professionals responsible for physical installation and rack mounting of Dell hardware.
Page 1 Text Content

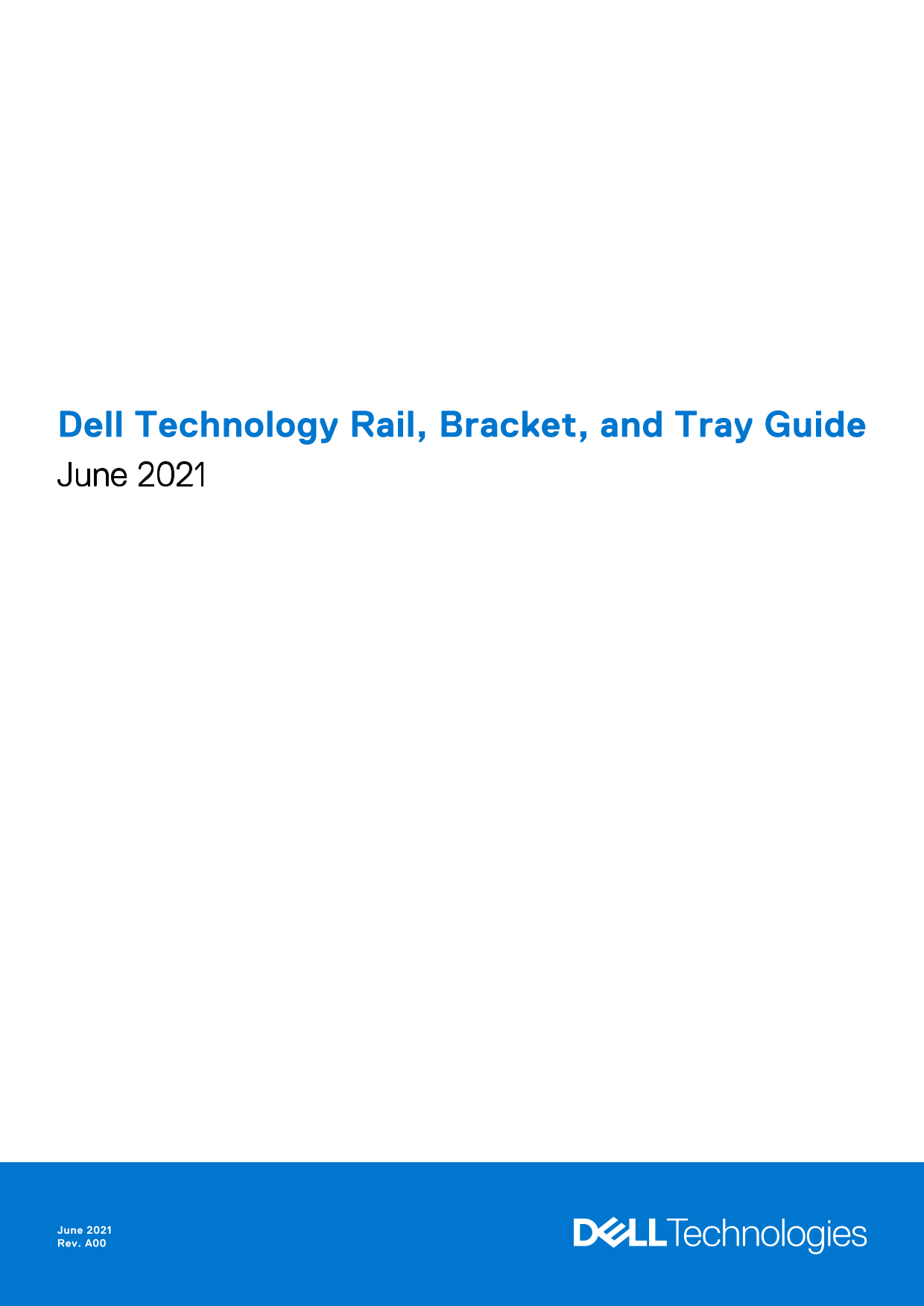

Dell Technology Rail, Bracket, and Tray Guide June 2021
June 2021 Rev. A00
Page Summary Contents For Dell Technology Rail, Bracket, and Tray Guide June 2021 Owner's Manual
Page 1
Dell Technology Rail, Bracket, and Tray Guide June 2021 June 2021 Rev. A00
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Rails............................................................................................................................. Rack rails..........................................
Page 4
Rails The following sections describe Dell EMC Networking rack rails. Topics: Rack rails Rack rails technical details Rack rails For a list of switching equipment with appropriate rails, see the Quick...
Page 5
Table 1. Rails (continued) Abbreviation Rail description Rack Part SKU Additional information height number 558.8-mm, 711.2-mm, or 787.4-mm (22-in, 28-in, or 31-in) offset 558.8 mm to 863.6 mm (22 in ...
Page 6
1U-M-RR: 1RU Modified Ready Rail (Nokia-specific rail) (HRTVK) Similar to the Standard Ready Rail but with the stop removed. Supports a 450 mm to 793 mm (17.72 in to 31.2 in)-rack span. 2U-S-RR: 2RU S...
Page 7
1U-Z93xx-RR: Z9332F-ON Ready Rails (08P6H) For four-post racks. 1U-S52-S41-12-4P: S5212F-ON or S4112-ON Series rails (TTVK9) For four-post racks. Use with the S5112F-ON or S4112-ON Series dual-trays. ...
Page 8
1U-EMC-3-RR: EMC Gen 3 bezel rails (V45CP) For rear-mount (I/O-side of the switch faces the back of the rack) four-post rack installation. 22-in, 28-in, or 31-in offset (558.8-mm, 711.2-mm, or 787.4-m...
Page 9
1U-DN-RR: Z9432F-ON & S5448F-ON Special Ready Rails (TDYXP) Four-post rack. Rack span is 21.25 in to 41 in (539.7 mm to 1041.4 mm). 2U-DN-RR: Z9664F-ON Ready Rails (N7WVX) 2U-DN-EMC-RR: Z9664F-ON ...
Page 10
Table 2. Rack types supported (continued) Product Two-post Two-post Two-post Four-post Four-post Four-post square support round support threaded square support round support threaded support support 1...
Page 11
Brackets The following sections describe Dell EMC Networking brackets. Brackets are used with rack-, wall-, or ceiling-mount installations. Topics: Brackets Brackets technical details Brackets For a l...
Page 12
Table 4. Brackets (continued) Abbreviation Rail description Rack Part SKU Additional information height number wall-mount installations. Does not work with N3208PX-ON. WM- N3208PX-ON Wall-mount N/A TK...
Page 13
1U-2P-BR: Two-post brackets (5PX47) For a 434-mm (17.08-in) wide switch, 5-in offset, two-post mount. 1U-XSeries-BR: X-Series Rack-Mount Kit (7YYKH) WM-XSer-NSer-BR: X- and N-Series wall-mount bracket...
Page 14
1U-NSer-SSer-BR: N- and S-Series rack-mount brackets (7YYKH) Rack-mount brackets for the N1108P/T, N1108EP, S4112F-ON or S5212F-ON products 1U-Z93xx-BR: Z9332F-ON four-post brackets (RVH5J) 1U-N22-N32...
Page 15
1U-N22-N32-FM-BR: N2200-ON / N3200-ON Series MPS-1S flush- mount, offset-mount, or rear-mount brackets (PR8P0) Two-post rack. Flush-mount, rear-mount, or 5-in offset (127-mm offset) offset-mount insta...
Page 16
WM-N320x PC-WM-BR: N3208PX-ON wall-mount bracket (TK3JM) WM-N3208PX-DIN-WM-BR: N3208PX-ON DIN rail-mount bracket (YP5PR) 1U-N3208PX-2P-BR: N3208PX-ON rack-mount brackets (C94XW) N3208PX-ON two-post fl...
Page 17
BR-N3208PX-E-BAT-BR: N3208PX-ON external power adapter battery holder (N8JNG) 1U-N3208P-E-2BAT-BR: N3208PX-ON external power adapter two- battery holder brackets (39VWT) Two EPA holder, two-post flush...
Page 18
2U-N3208P-E-2BAT-2P-BR: N3208PX-ON external power adapter two-battery for two-post mount (YTM40) 1U-N3208P-E-BAT-4P-BR: N3208PX-ON external power adapter one-battery for four-post mount (1MJP0) 1U-DN-...
Page 19
BR-VEP-WM-BR: VEP14xx, Edge 61xx, or 510 wall-mount brackets (G90MW) Brackets technical details Table 5. Rack types supported Product Two-post Two-post Two-post Four-post Four-post Four-post square su...
Page 20
Table 5. Rack types supported (continued) Product Two-post Two-post Two-post Four-post Four-post Four-post square support round support threaded square support round support threaded support support 2...
Page 21
Table 6. Bracket adjustability range (continued) Product Square Square Round Round Threaded Threaded minimum maximum minimum maximum minimum maximum BR-VEP-WM- N/A N/A N/A N/A N/A N/A BR Brackets
Page 22
Trays The following sections describe Dell EMC Networking rack trays. Topics: Trays Trays technical details Trays For a list of switching equipment with appropriate trays, see the Quick reference sect...
Page 23
1U-XSer-NSer-Sb S-4P-TR: X-Series or N-Series Tandem Switch Tray (XRN98) For four-post racks. Half-rack, side-by-side mounting tray. Default tray provisioned with four-post brackets. Tray content chan...
Page 24
Trays technical details Table 8. Rack types supported Product Two-post Two-post Two-post Four-post Four-post Four-post square support round support threaded square support round support threaded suppo...
Page 25
Quick reference The following table is a quick reference guide of abbreviations, products, and rails, brackets, or trays by Dell Technology part number. Table 10. Rails, brackets, or trays listed by a...
Page 26
Table 10. Rails, brackets, or trays listed by abbreviation and Dell part number (continued) Abbreviation Product Part Number 1U-N3208PX-E-BAT-2P-BR N3208PX-ON external power adapter one-battery for tw...
Page 27
Table 11. Switch equipment for different rails, brackets, or trays by part number (continued) Switch equipment Rails Brackets Trays S5448F TDYXP 7PGWK S6100 HFX63, 6CJRH VEP14xx G90MW 8Y32N VEP4600 G4...
Page 28
Dell EMC support The Dell EMC support site provides documents and tools to help you use Dell EMC equipment and mitigate network outages. Through the support site you can obtain technical information, ...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 28 |
| File Size | 761.96 KB |
| Published | June 24, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the rack span supported by the Modified ReadyRail?
The Modified ReadyRail supports a rack span of 450 mm to 793 mm (17.72 in to 31.2 in).
Where can I find the correct rails for my specific switch?
Refer to the Quick reference section which lists switch equipment for different rails, brackets, or trays by part number.
How do I access support for my Dell EMC equipment?
Visit www.dell.com/support/, enter your Service Tag, and use the Contact Information page for technical support.
