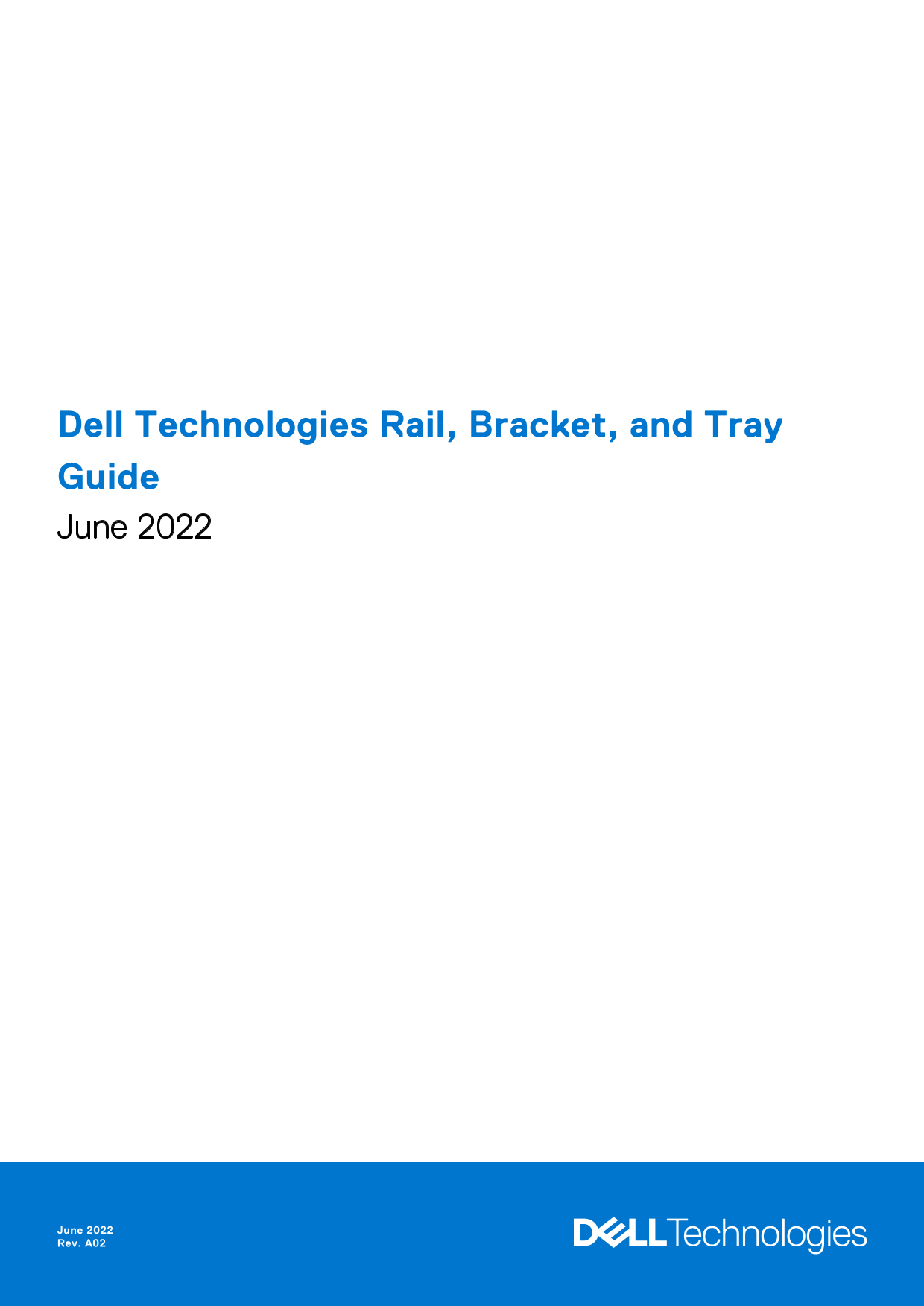

Dell Technologies Rail, Bracket, and Tray Guide June 2022
June 2022 Rev. A02
Page Summary Contents For Dell Technologies Rail, Bracket, and Tray Guide June 2022 Owner's Manual
Page 1
Dell Technologies Rail, Bracket, and Tray Guide June 2022 June 2022 Rev. A02
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Rails............................................................................................................................. Rack rails..........................................
Page 4
Rails The following sections describe Dell EMC Networking rack rails. Topics: Rack rails Rack rails technical details Rack rails For a list of switching equipment with appropriate rails, see the Quick...
Page 5
Table 1. Rails (continued) Abbreviation Rail description Rack Part SKU Additional information height number 558.8 mm, 711.2 mm, or 787.4 mm (22 in, 28 in, or 31 in) offset 558.8 mm to 863.6 mm (22 in ...
Page 6
Table 1. Rails (continued) Abbreviation Rail description Rack Part SKU Additional information height number 558.8 mm to 863.6 mm (22 in to 34 in) rack span (1) Extended NEBS "Deep rack" rail...
Page 7
2U-S-RR: 2RU Standard Ready Rail (6CJRH) Use with the Z9264F-ON, S6100-ON, or S5296-ON products. 2U-E-RR: 2RU Ready Rail Extension kit (NKFHM) For reverse-install scenarios. Permits an extra 9” face o...
Page 8
1U-S52-S41-12-4P: S5212F-ON or S4112-ON Series rails (TTVK9) For four-post racks. Use with the S5112F-ON or S4112-ON Series dual-trays. 1U-EMC-3.14-RR: EMC Gen3.14 bezel rails (19T1K) For rear-mount (...
Page 9
2U-EMC-Z92xx-RR: Z9264F-ON rails for EMC 2RU Gen 3.14/Gen 3 bezel (150-042-005) 1U-DN-RR: Z9432F-ON & S5448F-ON Special Ready Rails (TDYXP) Four-post rack. Rack span is 21.25 in to 41 in (539.7 mm...
Page 10
2U-DN-4P: Z9664F-ON Special Rails (JGF0H) Platform specific Four-post bracket rail. Use with a 438.5 mm (17.26 in) wide, 2 RU switch. Rack span is 23 in to 31 in (584.2 mm to 787.4 mm). 2U-EMC-RR: Z96...
Page 11
1U-DN-RR-Reversible: Z9432F-ON & S5448F-ON Special Ready Rails (X54PT) Platform specific Ready Rails Four-post rack-mount installations. Use with a 438.5 mm (17.26 in) wide switch. Rack span is 22...
Page 12
28 in or 31 in offset (711.2 mm or 787.4 mm offset). The rack span is 22 in to 34 in (558.8 mm to 863.6 mm wide). Use with a 438.5 mm (17.26 in) wide switch. S5448F-ON, Z9332F-ON, and Z9432F-ON Rack r...
Page 13
Table 3. Rail adjustability range (continued) Product Square Square Round Round Threaded Threaded minimum maximum minimum maximum minimum maximum 1U-S52- 660.4 812.8 660.4 812.8 660.4 812.8 S41-12-4P ...
Page 14
Brackets The following sections describe Dell EMC Networking brackets. Brackets are used with rack-, wall-, or ceiling-mount installations. Topics: Brackets Brackets technical details Brackets For a l...
Page 15
Table 4. Brackets (continued) Abbreviation Rail description Rack Part SKU Additional information height number WM- N3208PX-ON Wall-mount N/A TK3JM 750-ACPV N3208PX-ON wall-mount bracket. N320x PC- bra...
Page 16
WM-XSer-NSer-BR: X- and N-Series wall-mount brackets (9JM64) Wall-mount brackets for the N1108T-ON, N1108P-ON, X1018, X1026, X1052, or X4012 products. 1U-NSer-BR: N-Series rack-mount brackets (HCDHT) ...
Page 17
1U-Z93xx-BR: Z9332F-ON four-post brackets (RVH5J) 1U-N22-N32-BR: N2200-ON / N3200-ON Series MPS-3S flush- mount or offset-mount brackets (2V6KK) Two-post rack. Flush-mount or 5-in offset (127-mm offse...
Page 18
WM-N22-N32-WM-BR: N2224-ON / N3224-ON MPS-1S and 24-port wall-mount brackets(1DHH0) WM-N320x PC-WM-BR: N3208PX-ON wall-mount bracket (TK3JM) Brackets
Page 19
WM-N3208PX-DIN-WM-BR: N3208PX-ON DIN rail-mount bracket (YP5PR) 1U-N3208PX-2P-BR: N3208PX-ON rack-mount brackets (C94XW) N3208PX-ON two-post flush-mount and offset-mount brackets. BR-N3208PX-E-BAT-BR:...
Page 20
1U-N3208P-E-2BAT-BR: N3208PX-ON external power adapter two- battery holder brackets (39VWT) Two EPA holder, two-post flush-mount and offset-mount brackets. 1U-N3208PX-E-BAT-2P-BR: N3208PX-ON external ...
Page 21
1U-N3208P-E-BAT-4P-BR: N3208PX-ON external power adapter one-battery for four-post mount (1MJP0) 1U-DN-4P-BR: Z9432F-ON & S5448F-ON brackets (7PGWK) Four-post rack. Rack span is 22 in to 36 in (55...
Page 22
Brackets technical details Table 5. Rack types supported Product Two-post Two-post Two-post Four-post Four-post Four-post square support round support threaded square support round support threaded su...
Page 23
Table 6. Bracket adjustability range (continued) Product Square Square Round Round Threaded Threaded minimum maximum minimum maximum minimum maximum 1U-NSer-BR N/A N/A N/A N/A N/A N/A 1U-Xser-Nser- N/...
Page 24
Trays The following sections describe Dell EMC Networking rack trays. Topics: Trays Trays technical details Trays For a list of switching equipment with appropriate trays, see the Quick reference sect...
Page 25
1U-XSer-NSer-Sb S-4P-TR: X-Series or N-Series Tandem Switch Tray (XRN98) For four-post racks. Half-rack, side-by-side mounting tray. Default tray provisioned with four-post brackets. Tray content chan...
Page 26
Trays technical details Table 8. Rack types supported Product Two-post Two-post Two-post Four-post Four-post Four-post square support round support threaded square support round support threaded suppo...
Page 27
Quick reference The following table is a quick reference guide of abbreviations, products, and rails, brackets, or trays by Dell Technologies part number. Table 10. Rails, brackets, or trays listed by...
Page 28
Table 10. Rails, brackets, or trays listed by abbreviation and Dell part number (continued) Abbreviation Product Part Number 1U-N3208PX-E-BAT-2P-BR N3208PX-ON external power adapter one-battery for tw...
Page 29
Table 11. Switch equipment for different rails, brackets, or trays by part number (continued) Switch equipment Rails Brackets Trays S5448F TDYXP, X54PT 7PGWK S6100 HFX63, 6CJRH, 150-042-005 VEP14xx G9...
Page 30
