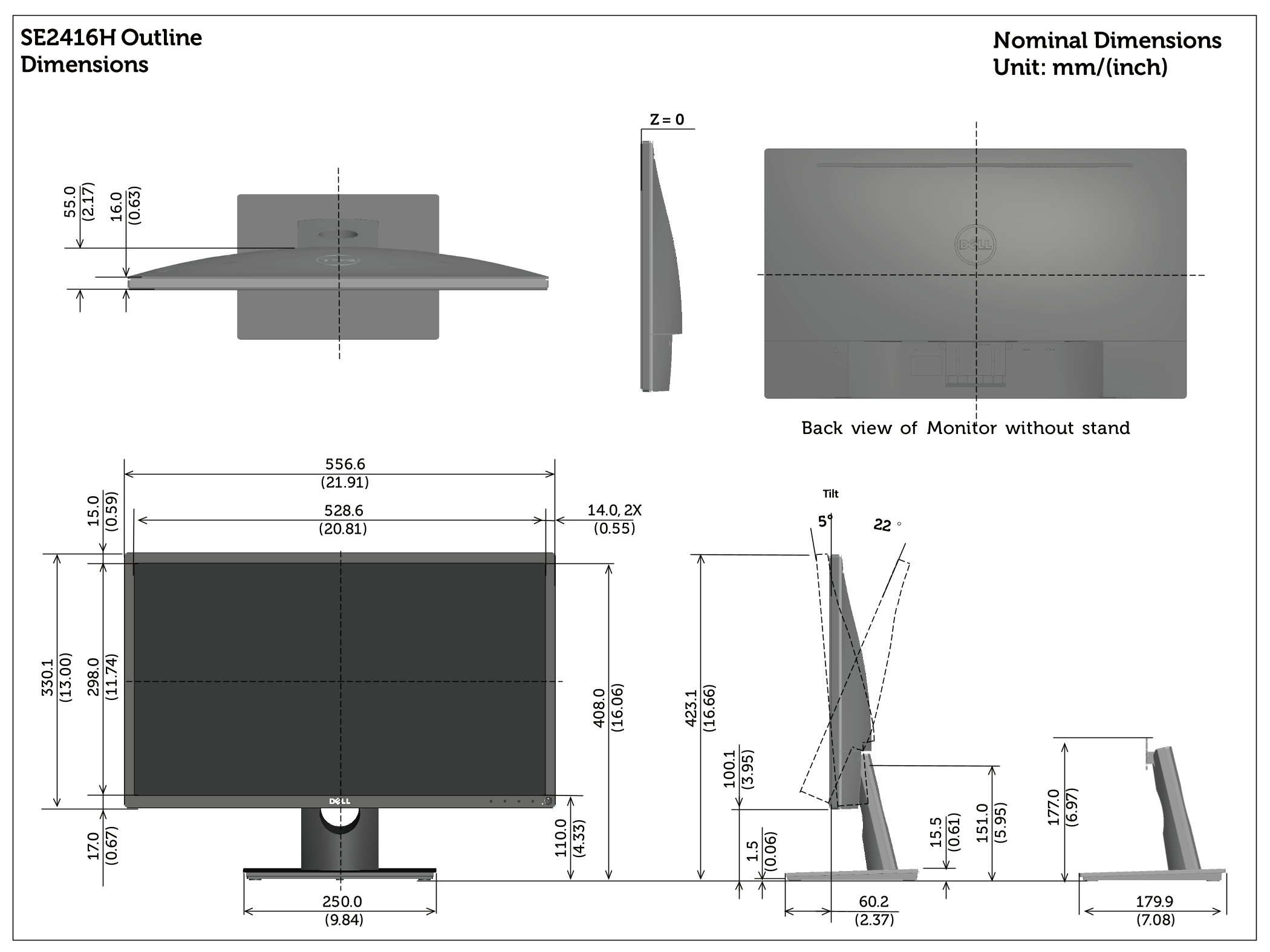

Dell SE2416H monitor outline dimension drawing showing nominal dimensions including overall width 556.6mm, height 423.1mm, depth 179.9mm, VESA 100mm mounting pattern, tilt adjustment, and detailed front/side/rear measurement specifications with monitor without stand back view.
Page 1 Text Content
SE2416H Outline Nominal Dimensions
Dimensions Unit: ) ) mm/(inch)
view of Monitor without stand
Page Summary Contents For Dell SE2416H Edge Guide User Manual
Page 1
SE2416H Outline Nominal Dimensions Dimensions Unit: ) ) mm/(inch) view of Monitor without stand
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 348.76 KB |
| Published | July 03, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall dimensions of the monitor without a stand?
The back view dimensions are 556.6 mm wide by 330.1 mm high, with a specified depth of 179.9 mm.
How much does the screen change when it is tilted to its maximum degree?
When tilted maximally (at least 14.0 degrees), the dimensions are 528.6 mm wide and 330.1 mm high.
What is the base clearance dimension near the bottom edge of the monitor assembly?
The lowest internal depth measurement shown is 15.0 mm.
