Dell Edge Gateway 3003 Specifications
Page 1 Text Content
Dell Edge Gateway 3003 Specifications
Computer Model: Dell Edge Gateway 3003 Regulatory Model: N03G Regulatory Type: N03G001
Page Summary Contents For Dell Edge Gateway 3003 Specifications

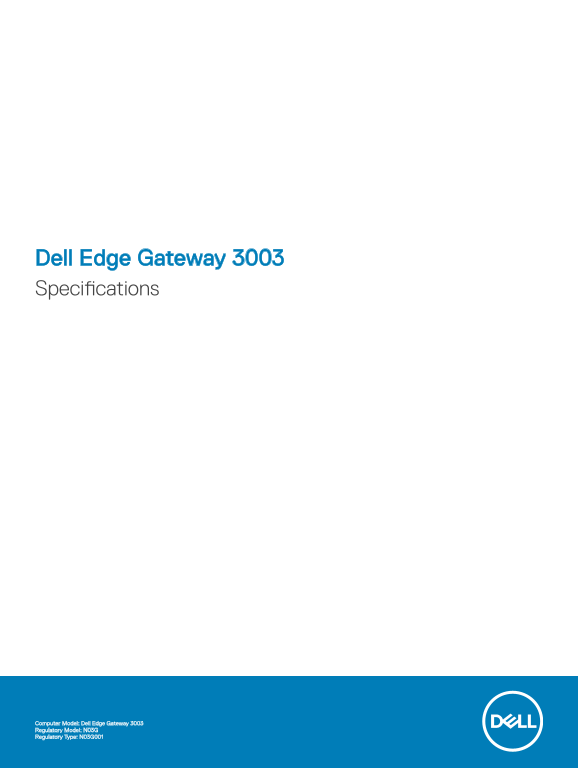

Page 1
Dell Edge Gateway 3003 Specifications Computer Model: Dell Edge Gateway 3003 Regulatory Model: N03G Regulatory Type: N03G001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Dimensions and weight...................................................................................................................................5 Product...............................
Page 4
13 Sensors...................................................................................................................................................... Pressure sensor...........................
Page 5
Dimensions and weight Product Table 1. Product Height 125 mm (4.92 in) Width 125 mm (4.92 in) Depth 51 mm (2 in) Weight 1 kg (2.20 lb) Volume 0.80 L Packaging NOTE: The packaging weight includes the t...
Page 6
Standard mount Quick mount Quick mount and DIN mount Perpendicular Standard mount cable control bars mount and cable control (6.58 in) (6.58 in) (10.76 in) (4.92 in) (5.65 in) (10.76 in) Depth 61.90 m...
Page 7
Environmental and operating conditions Environmental conditions Table 5. Environmental conditions Ingress protection rating IP50 Water and dust ingress IEC 60529 CAUTION: Install the Edge Gateway in a...
Page 8
All operational orientations; 40 G ± 5% with pulse duration of 2 msec ± 10% (equivalent to 20 in/sec [51 cm/sec]) Non-operational Half sine shock Tested on all six sides; 160 G ± 5% with pulse duratio...
Page 9
Power Power source The Edge Gateway supports the following power sources, which are isolated to 2.5 KV: DC Power over Ethernet (Po E) CAUTION: Power off the Edge Gateway before you change the power so...
Page 10
DC parameters Power management System power on, standby, and hibernate management through optional ignition input. Supported wake up events Alarm (real-time clock) WLAN and LAN (Windows OS only) USB I...
Page 11
Ignition Table 10. Ignition parameters Parameter Minimum voltage Maximum voltage Default High-level input voltage (VIH) 9 V 32 V 12 V Low-level input voltage(VIL) 0 V 1.2 V 0 V 3 V CMOS coin-cell batt...
Page 12
Operating systems The Edge Gateway supports the following operating systems: Windows 10 Io T Enterprise LTSB 2016 Ubuntu Core 16 Ubuntu Server 18.04 NOTE: Windows 10 Io T Enterprise LTSB 2016 is suppo...
Page 13
Processor Table 12. Processor Configuration Processor Cache Number of Cores Edge Gateway 3003 Intel Atom Processor E3815 512 KB L2 cache Processor
Page 14
Memory Table 13. Memory type Type DDR3L Memory channel Single Minimum memory 2 GB Maximum system memory 2 GB Memory
Page 15
Storage Table 14. Storage specifications Storage type Capacity supported micro-SD 8 GB 32 GB 64 GB 128 GB e MMC 8 GB 32 GB NOTE: Windows 10 Io T Enterprise LTSB 2016 is supported only on Edge Gateway ...
Page 16
Audio and video Audio Table 15. Audio specifications Controller Realtek ALC3277 Line-out 3.5 mm jack - Green Line-in 3.5 mm jack - Blue Display Port 1.1 Display Port 1.1 supports a maximum resolution ...
Page 17
External ports and connectors NOTE: For more information about ports and connectors location, see the Edge Gateway Installation and Operation Manual. Table 18. Ports and connectors on Edge Gateway Por...
Page 18
Communications Topics: Wireless LAN Wireless WAN Global Navigation Satellite System (GNSS) Bluetooth Wireless LAN Table 19. Wireless LAN specifications WLAN standards supported 802.11b, 802.11g or 802...
Page 19
Fallback network EDGE/GPRS Fallback speed Downlink: < 236.8 Kbps Uplink: < 118.4 Kbps SIM All DW5815 specifications Table 22. DW5815 card specifications Network LTE/HSPA+ Frequency bands LTE ban...
Page 20
DW5819 specifications Table 24. DW5819 card specifications Network LTE/HSPA+ Frequency bands LTE FDD Band 1, 3, 5, 7, 8, 18, 19, 21, 28 LTE TDD Band 38, 39, 40, 41 HSPA+/WCDMA Band 1, 5, 6, 8, 9, 19 S...
Page 21
Global Navigation Satellite System (GNSS) Table 26. GNSS specifications GNSS chip in Edge Gateway Supported GNSS systems u-blox UBX-M8030 Concurrent reception of up to three GNSS systems: GPS (Global ...
Page 22
Security Table 29. Security specifications Version 2.0 only Manufacturer part number Nuvoton NPCT654JBAYX External enclosure chassis intrusion switch When the chassis is opened, the external enclosure...
Page 23
Environmental compliance Table 30. Environmental compliance BFR/PVC-free No Environmental compliance
Page 24
Sensors Pressure sensor Table 31. Pressure sensor specifications Controller ST Micro LPS22HB Temperature range -40°C to 85°C (-40°F to 185°F) Relative humidity and temperature sensor Table 32. Relativ...
Page 25
Software The following software is supported in the Edge Gateway 3000 Series: Dell Command | Configure (DCC) Dell Command | Monitor (DCM) Dell Command | Powershell (DCPP)—For Windows only Edge Device ...
Page 26
Service and support Table 34. Service and support One year base hardware warranty, with mail-in service. Included Basic extensions up to five years, with mail-in service. Available Pro Support extensi...
Page 27
Contacting Dell To contact Dell for sales, technical assistance, or customer service issues: 1 Go to www.dell.com/contactdell. 2 Verify your country or region in the drop-down list at the bottom of th...
