Dell SE2416H Outline Drawing
Summary
The Dell SE2416H is a consumer monitor featuring detailed dimensional specifications and mechanical drawings. This outline document provides nominal dimensions in millimeters and inches, including back view measurements without stand, tilt specifications, and various component positioning dimensions. Target users include product designers, mechanical engineers, and manufacturing teams requiring precise physical specifications for integration or assembly purposes.
Page 1 Text Content

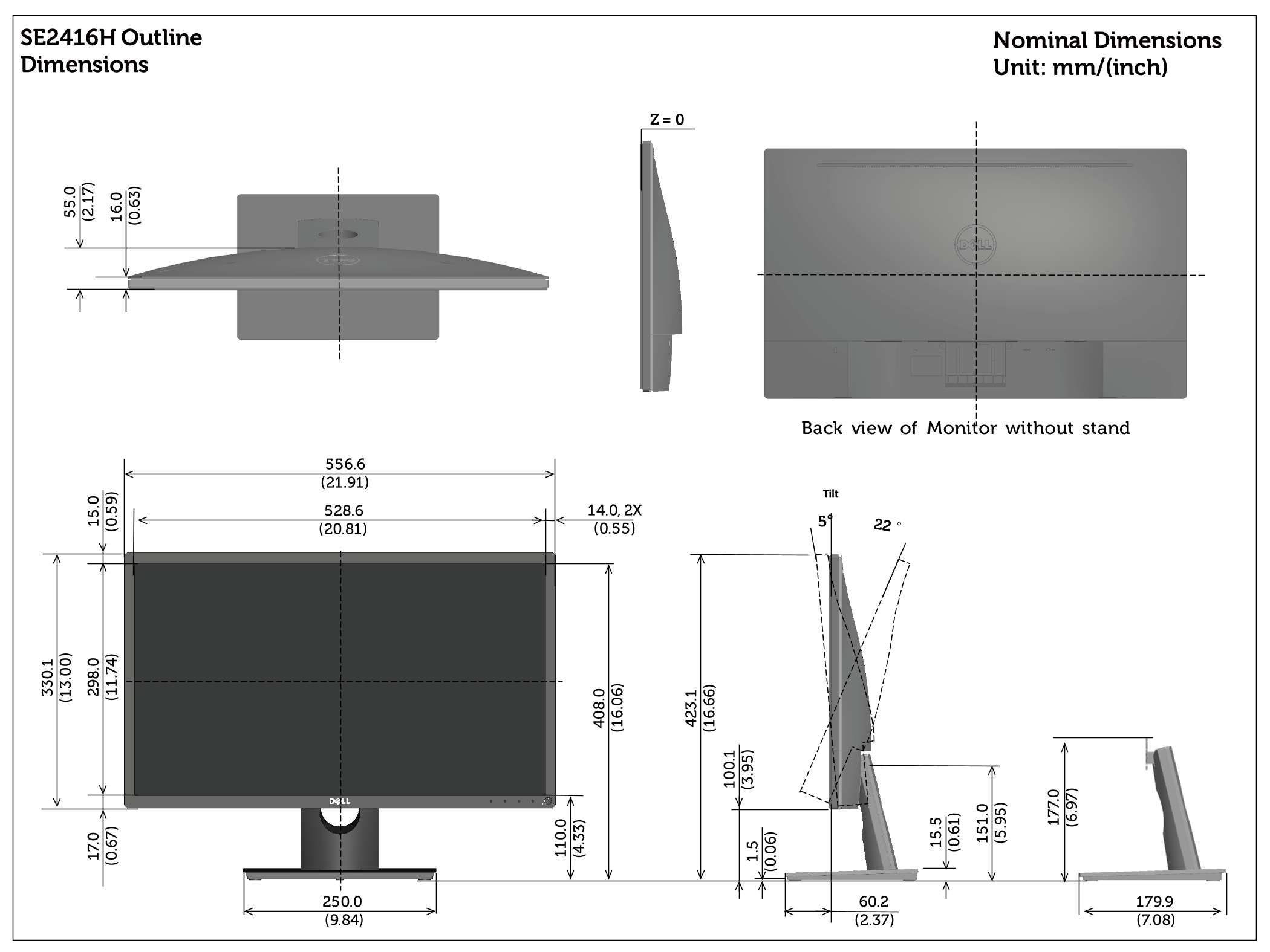

SE2416H Outline Nominal Dimensions
Dimensions Unit: ) ) mm/(inch)
view of Monitor without stand
Page Summary Contents For Dell SE2416H Outline Drawing
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 348.76 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the physical dimensions of the monitor?
Overall width is 556.6 mm (21.91 inch), height is 528.6 mm (20.81 inch), and depth is 330.1 mm (13.00 inch).
How much does the monitor weigh?
The unit weight is 250.0 (60.2).
What are the installation hole specifications?
The mounting hole pattern is 100.1 mm (3.95 inch) by 151.0 mm (5.95 inch).
