Dell S2319NX Outline Drawing
Summary
This document provides outline dimension specifications for Dell S2319H/S2319HN/S2319NX monitors. It includes detailed mechanical drawings with measurements in millimeters and inches, showing monitor dimensions with and without stand, tilt angles, VESA mounting hole patterns, and physical characteristics. The technical drawing specifies width, height, depth, and bezel dimensions for product integration and mounting planning. Designed for system integrators, architects, and planners requiring precise physical specifications for monitor deployment in custom installations or multi-monitor setups.
Page 1 Text Content
Unit: mm(inch)

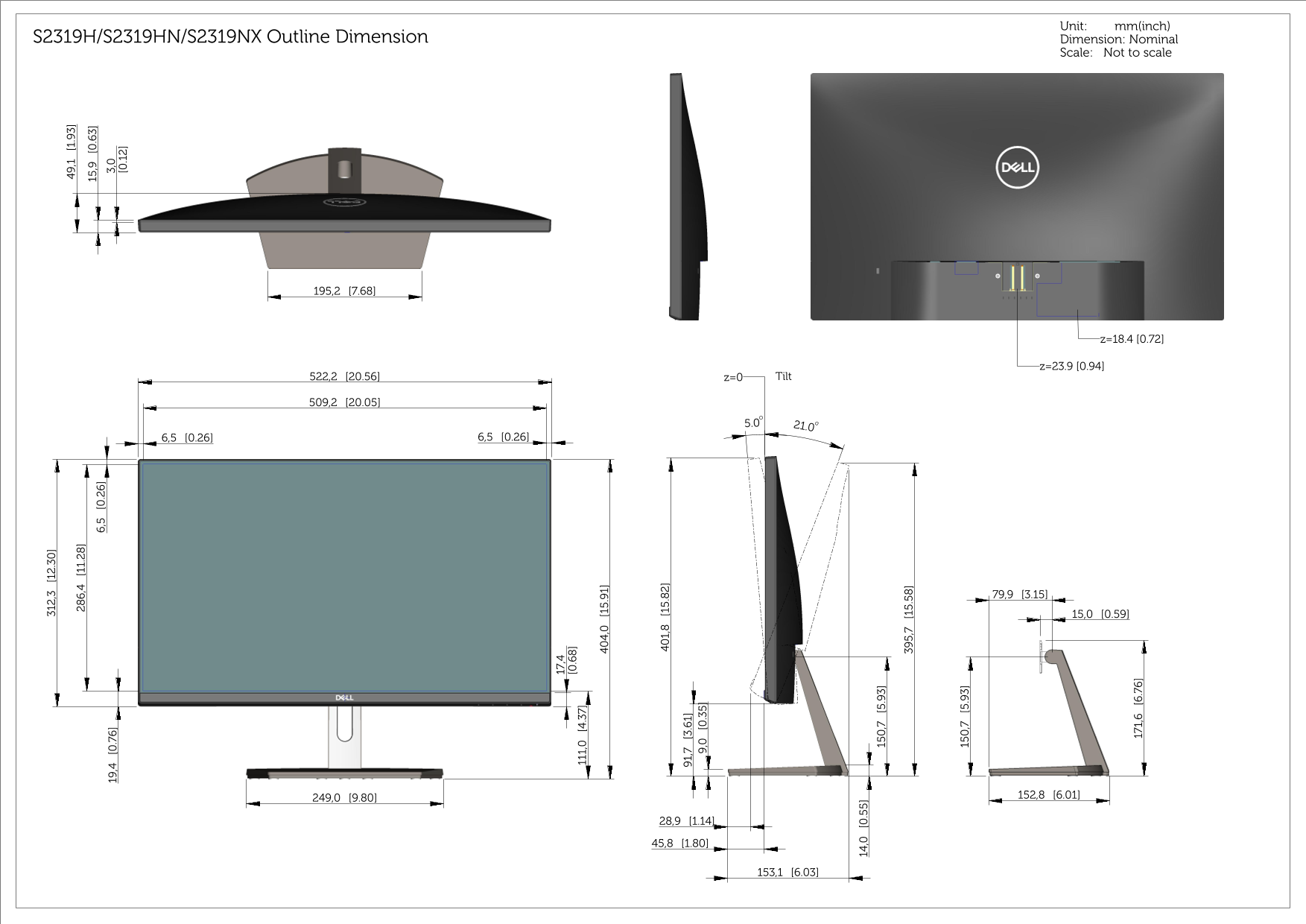

S2319H/S2319HN/S2319NX Outline Dimension Dimension: Nominal
,3 [1 .3 Scale: Not to scale
522,2 [20.56] z=0 Tilt
