Dell S2319HN Outline Drawing
Summary
This document provides mechanical outline dimension drawings for the Dell S2319H, S2319HN, and S2319NX monitors. It contains precise measurements in millimeters and inches for the monitor physical dimensions including width, height, depth, bezel width, stand dimensions, tilt angle range, and VESA mounting specifications. The technical drawing serves as a reference for industrial designers, mechanical engineers, and fixture manufacturers who need exact dimensional data for integration planning, mounting bracket design, or multi-monitor array configuration in professional and commercial installations.
Page 1 Text Content
Unit: mm(inch)

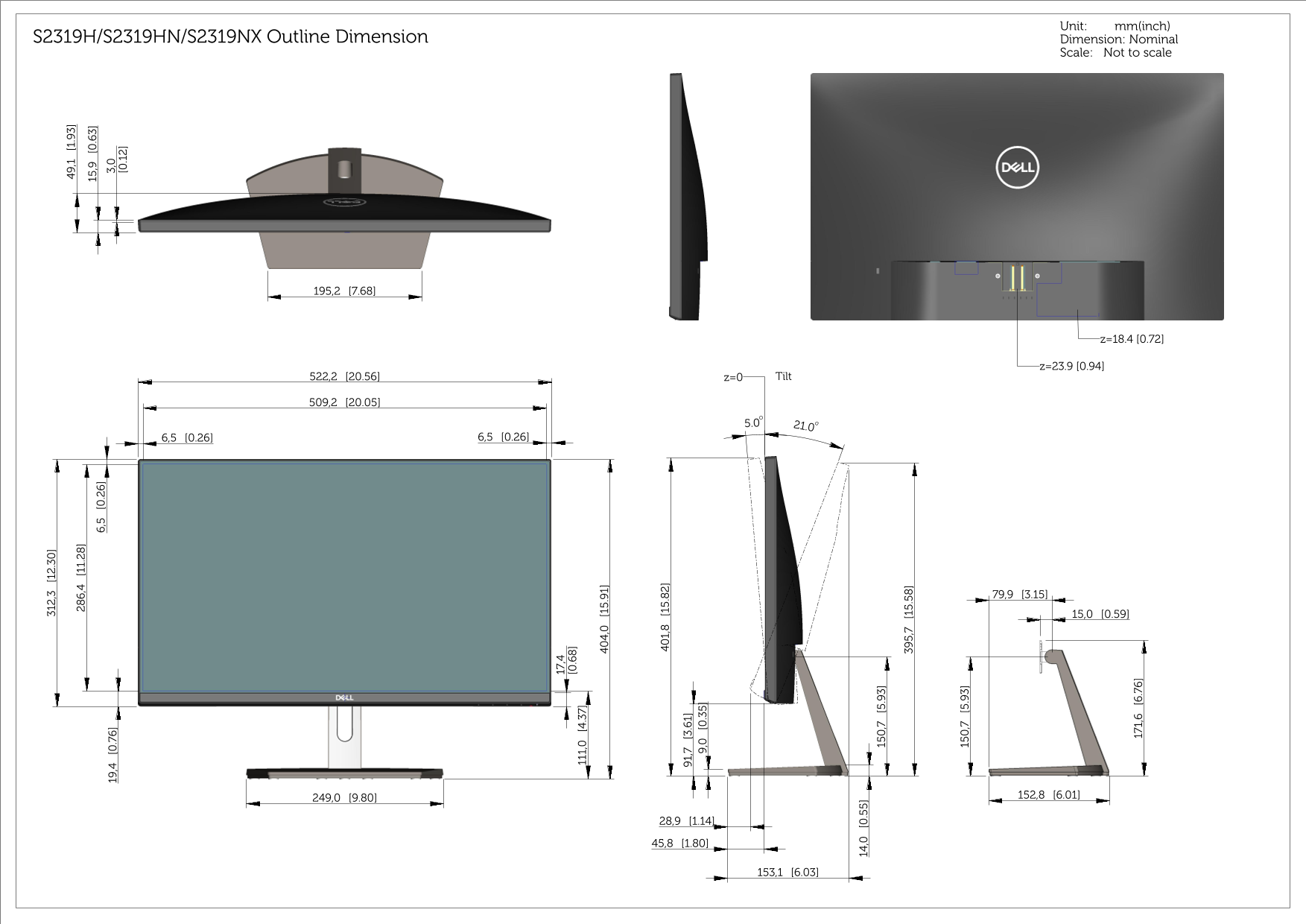

S2319H/S2319HN/S2319NX Outline Dimension Dimension: Nominal
,3 [1 .3 Scale: Not to scale
522,2 [20.56] z=0 Tilt
