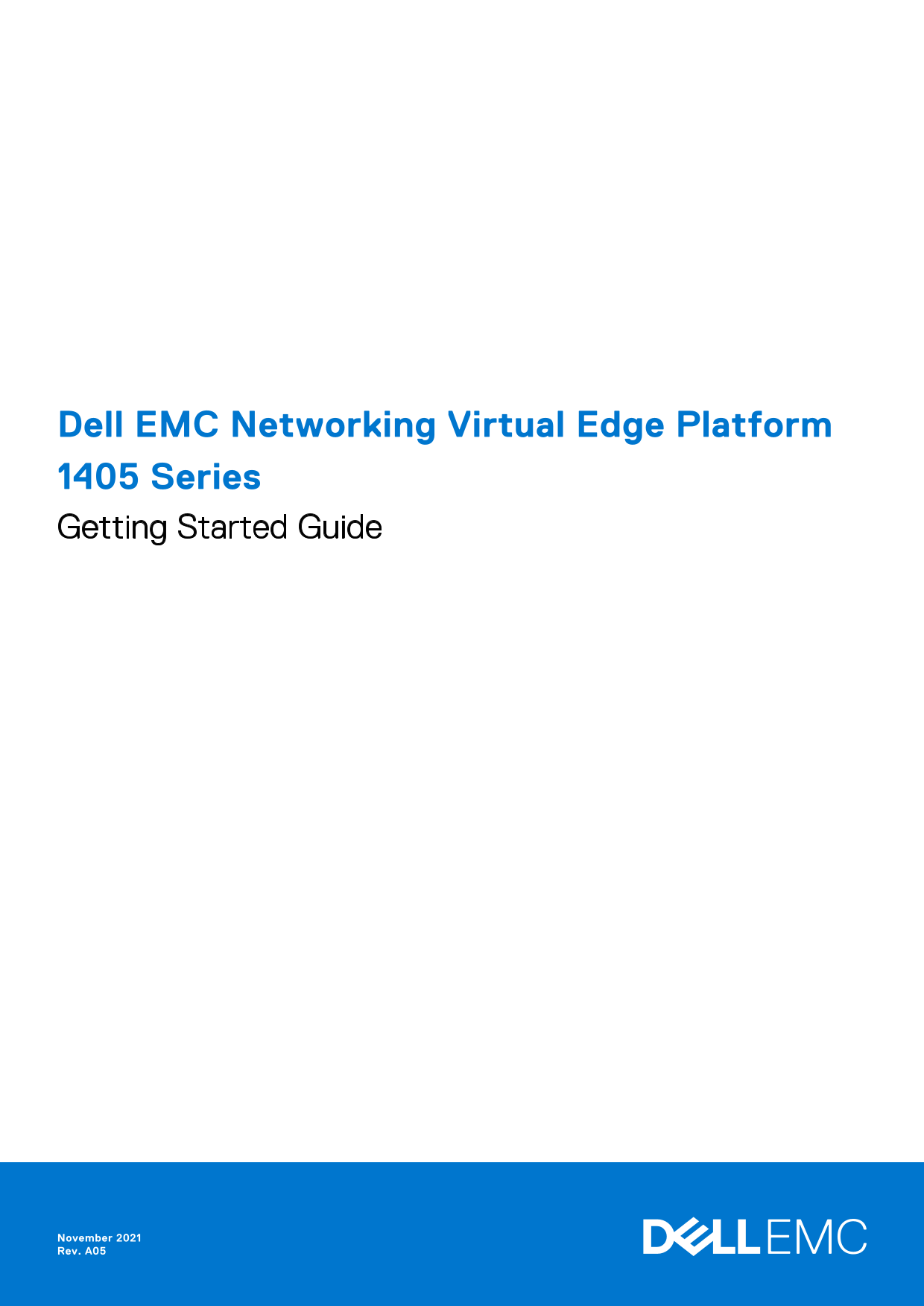

Dell EMC Networking Virtual Edge Platform 1405 Series Getting Started Guide
November 2021 Rev. A05
Page Summary Contents For Dell EMC Networking Virtual Edge Platform 1405 Series Getting Started Guide
Page 1
Dell EMC Networking Virtual Edge Platform 1405 Series Getting Started Guide November 2021 Rev. A05
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: About this Guide...........................................................................................................4 Related documents.........................................
Page 4
About this Guide This guide provides site preparation recommendations, step-by-step procedures for rack and desk mounting, inserting modules, and connecting to a power source for the Dell EMC Networki...
Page 5
Information symbols This book uses the following information symbols: NOTE: The Note icon signals important operational information. CAUTION: The Caution icon signals information about situations that...
Page 6
Site Preparations The Virtual Edge Platform 1405 series of systems, or VEP1405, are a universal customer premise equipment (u CPE) devices. The VEP1405 series connects the service provider edge or sma...
Page 7
Wall mount installation The VEP1405 series includes the hardware that is required for wall mount installation. Using a torque screwdriver, affix the wall mount brackets to the VEP1405 series using the...
Page 8
Figure 4. VEP1405 series wall mount, installation anchor, and screw dimensions NOTE: Before mounting the VEP1405 series to the wall, verify that the wall surface is strong enough to support a firm ins...
Page 9
Figure 6. VEP1405 series wall mount bracket installation - cross-shaped cutout Rack-mounted installation As an option, the VEP1405 series can be mounted to a dual rack mount tray. Purchased separately...
Page 10
Fans and airflow Fan installation is done as part of the factory install and is based on the stock keeping unit (SKU) type. The VEP1405 series of systems support a DC fan unit with fan airflow startin...
Page 11
VEP1405 Series Installation To install the VEP1405 series unit, complete the installation procedures in the order that is presented in this section. Always handle the platform and its components with ...
Page 12
Specifications This section lists the specifications for the VEP1405 series of systems. CAUTION: Operate the product at an ambient temperature between 0-40°C (32–104°F). WARNING: There is a danger of ...
Page 13
NOTE: For a listing of the supported optics guidelines for the VEP1405 series, see the Virtual Edge Platform 1405 Series Technology Guide. Figure 9. VEP1405 series front view 1. Security lock port 2. ...
Page 14
Figure 11. VEP1405 series back view (without port cover) 1. Micro USB serial console port 2. Reset button NOTE: See the Reset button behavior table below for more information. 3. LED status indicators...
Page 15
Table 6. Chassis physical design Parameter Configuration option 1 Configuration option 2 Height 5.2 cm (2.0 in) 5.2 cm (2.0 in) Width 20.8 cm (8.1 in) 20.8 cm (8.1 in) Depth 20.0 cm (7.9 in) 20.0 cm (...
Page 16
Meets or exceeds Hi Pot and Ground Continuity testing per UL 60950-1. CSA 60950-1-03, 2nd Edition EN 60950-1, 2nd Edition EN 60825-1, 1st Edition EN 60825-1 Safety of Laser Products—Part 1: Equipment ...
Page 17
NOTE: Some of the following declarations may apply only to systems that contain wireless capabilities This device complies with Part 15 of the FCC Rules. Operation is subject to the following two cond...
Page 18
The County Code Selection feature is disabled for products marketed in the US/Canada. La fonction de sélection de l'indicatif du pays est désactivée pour les produits commercialisés aux États-Unis et ...
Page 19
Brasil – Aviso da Anatel Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferê...
Page 20
Japan VCCI compliance for Class A equipment この装置は、情報処理装置等電波障害自主規制協議会 (VCCI) の基準に基づくクラス 情報技術装置です。 この装置を家庭環境で使用すると電波妨害を引き起こすことがあります。 この場合には使用者が適切な対策を講ずるよう要求されることがあります。 This is Class A product based on t...
Page 21
Radio compliance certificate Korea (Korean warning statement is only required for devices contain 2400~2483 and/or 5725~5825 MHz radios). The following is the Korean radio compliance certification: 해당...
Page 22
Support The support site provides documents and tools to help you effectively use your equipment and mitigate network outages. Through the support site you can obtain technical information, access sof...
