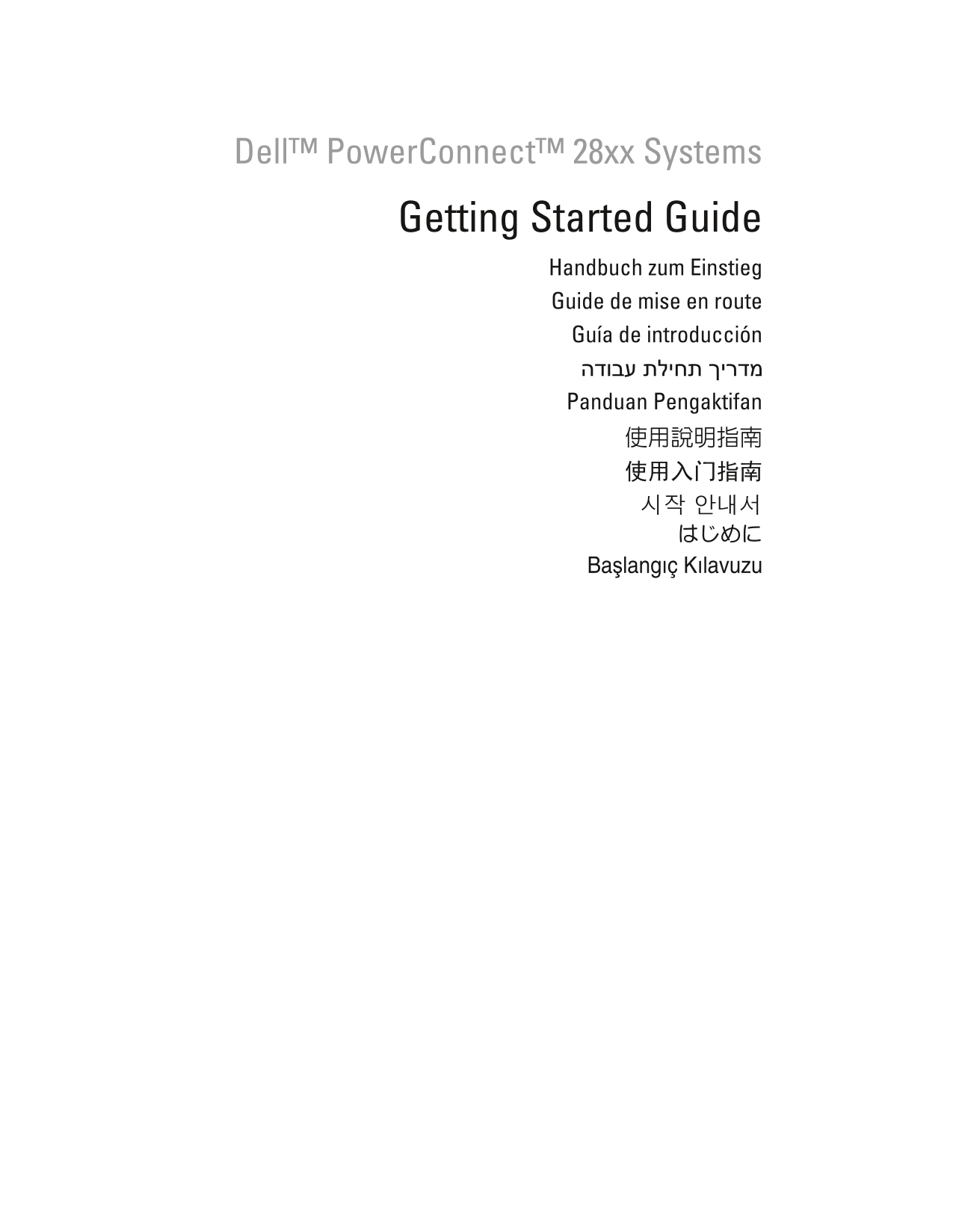

Dell™ Power Connect™ 28xx Systems Getting Started Guide Handbuch zum Einstieg Guide de mise en route Guía de introducción Panduan Pengaktifan Başlangıç Kılavuzu
Page 3
Dell™ Power Connect™ 28xx Systems Getting Started Guide
Page 4
Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps to make better use of the device. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data an...
Page 5
Contents Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Site Preparation . . . . . . . . . . . . . . . . . . . . ...
Page 6
Contents
Page 7
Installation Overview This document provides basic information to install and start running the following Power Connect 2800 series of Web-managed Gigabit Ethernet switches: Power Connect 2808 Power C...
Page 8
Before installing the device, verify that the site selected for the device meets the following site requirements: Power — The device is installed within 1.5 m (5 feet) of a grounded, easily accessible...
Page 9
Mounting the Device Overview The following mounting instructions apply to the Power Connect 2808/16/24/48 devices. There are three device mounting options: Installing in a Rack Installing on a Flat Su...
Page 10
Ensure that the device does not overload the power circuits, wiring, and over-current protection. To determine the possibility of overloading the supply circuits, add together the ampere ratings of al...
Page 11
Insert the device into the rack, ensuring the rack-mounting holes on the device line up to the mounting hole on the rack. Secure the device to the rack with the rack screws (not provided). Fasten the ...
Page 12
Figure 2-2. Bracket Installation for Wall Mounting Insert the supplied screws into the wall-mounting bracket holes and tighten with a screwdriver. Repeat the process for the wall-mounting bracket on t...
Page 13
Figure 2-3. Mounting Device on a Wall Mounting the Device
Page 14
Mounting the Device
Page 15
Starting and Configuring the Device After completing all external connections, proceed as follows: If the device is to be used as an unmanaged switch, there is no need for a terminal connection. A ter...
Page 16
Connecting the Terminal to the Device The device provides an external console port in models 2816/24/48. The console port enables a connection to a terminal desktop system running terminal emulation s...
Page 17
Attach the supplied standard AC power cable to the AC connector on the back panel of the device. Figure 3-1. Connecting to Power Connect 2800 Series Console Port Figure 3-2. Attaching AC Power cable t...
Page 18
When the power is turned on with the local terminal already connected, the device goes through Power On Self Test (POST). POST runs every time the device is initialized and checks hardware components ...
Page 19
IP subnet mask Default Gateway IP address The Setup Wizard displays the following information: Welcome to Dell Easy Setup Wizard. The Setup Wizard guides you through the initial switch configuration, ...
Page 20
You can use Dell Network Manager or CLI to change this setting, and to add additional management systems. For more information on adding management systems, see the user documentation. To add a manage...
Page 21
Enter the default gateway. Press Enter. The following is displayed (as per the example parameters described): This is the configuration information that has been collected: SNMP Interface = Dell_Netwo...
Page 22
Figure 3-3. Web management IP Interface Parameters Enter the IP Address, Subnet Mask and Default Gateway. Click Apply Changes. The device is configured. The Newly Introduced Eco-Friendly Feature: Gree...
Page 23
Regulatory Notices For additional regulatory information, see the Regulatory Compliance Homepage on www.dell.com at the following location: www.dell.com/regulatory_compliance. información NOM (únicame...
Page 24
Starting and Configuring the Device
Page 25
Dell™ Power Connect™ 28xx Systeme Handbuch zum Einstieg
Page 26
Anmerkungen, Vorsichtshinweise und Warnungen ANMERKUNG: Eine ANMERKUNG zeigt Ihnen wichtige Informationen, die Ihnen helfen können, diese Komponente besser verwenden zu können. HINWEIS: Ein VORSICHTSH...
Page 27
Inhalt Installation Übersicht . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Vorbereitung des Standorts . . . . . . . . . . . . . . . . ....
Page 28
Inhalt
Page 29
Installation Übersicht Dieses Dokument stellt grundlegende Informationen zu Installation und Inbetriebnahme folgender Web-verwalteter Gigabit Ethernet Switches der Serie Power Connect 2800 zur Verfügu...
Page 30
Vorbereitung des Standorts Standortanforderungen Die Power Connect 2808/16/24/48 Geräte können in ein Standardgeräte-Rack montiert, auf dem Tisch plat- ziert oder an der Wand angebracht werden. Überpr...
Page 31
Auspacken des Geräts Auspacken des Power Connect Geräts: ANMERKUNG: Überprüfen Sie vor dem Auspacken des Geräts die Verpackung und melden Sie jegliche Spu- ren von Beschädigung. Stellen Sie die Kiste ...
Page 32
Installation
Page 33
Einbau des Geräts Übersicht Die folgenden Montageanweisungen gelten für die Geräte Power Connect 2808/16/24/48. Es gibt drei Möglichkeiten für die Montage des Geräts: Installieren in einem Rack Instal...
Page 34
Achten Sie darauf, dass Stromkreise, Verkabelung und Überstromschutz vom Switch nicht überlastet wer- den. Addieren Sie zur Bestimmung der Wahrscheinlichkeit einer Überladung der Versorgungsschaltkrei...
Page 35
Führen Sie die mitgelieferten Schrauben in die Rack-Montagelöcher ein, und ziehen Sie diese mit einem Schraubenzieher fest. Wiederholen Sie dies beim Rack-Montageblech auf der anderen Seite des Geräts...
Page 36
Abbildung 2-2. Montageblechinstallation für die Wandmontage Setzen Sie die mitgelieferten Schrauben in die Löcher der Rackmontage ein und ziehen Sie sie mit einem Schraubenzieher fest. Wiederholen Sie...
Page 37
Abbildung 2-3. Montage des Geräts an einer Wand Anschließen des Geräts an die Stromversorgung Schließen Sie das mitgelieferte Standard-Stromversorgungskabel an den Stromanschluss auf der Rück- seite a...
Page 38
Abbildung 2-4. Anschließen an die Stromversorgung Überprüfen Sie nach Anschluss des Geräts an die Stromversorgung dessen korrekten Anschluss und Be- trieb, die durch die LEDs an der Vorderseite ausgew...
Page 39
Starten und Konfigurieren des Geräts Nachdem Sie sämtliche externen Verbindungen vollständig hergestellt haben, fahren Sie fort wie folgt: Wenn das Gerät als Unmanaged Switch verwendet werden soll, wi...
Page 40
ANMERKUNG: Wenn die Auto-Verhandlung an den Anschlüssen abgeschaltet ist, muss ein Geradeaus- kabel verwendet werden. Zum Anschließen des Geräts an das Netzwerk: Verbinden Sie ein Ende des Torsionskab...
