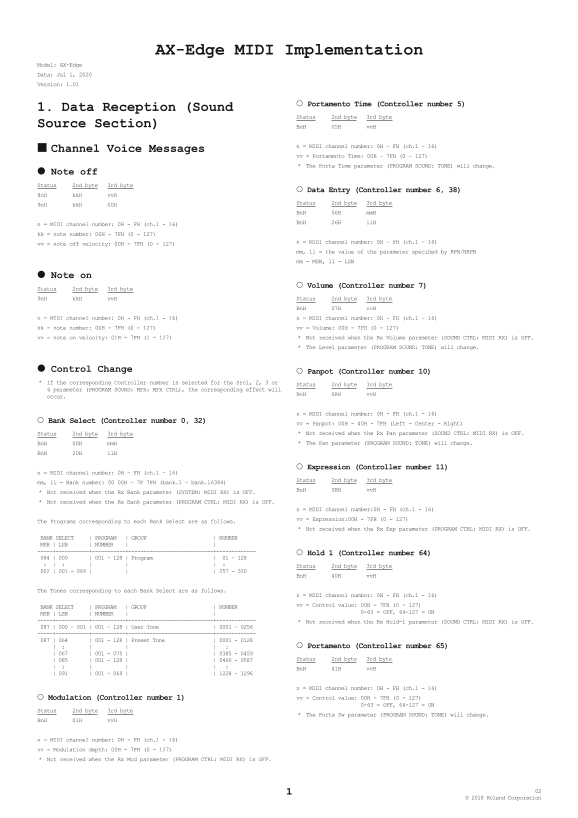

![Roland AX-Edge Shoulder Bag Synthesizer [English] AX-Edge MIDI Implementation User Guide - Page 1](https://img2.seekmanuals.com/20260602/b9c1a9a274/roland-ax-edge-shoulder-bag-synthesizer-english-ax-edge-midi-implementation-user-guide/1.png)
Page 1 Text Content
AX-Edge MIDI Implementation
Model: AX-Edge Data: Jul 1, 2020 Version: 1.01
Portamento Time (Controller number 5)
1. Data Reception (Sound
Status 2nd byte 3rd byte
Source Section) Bn H 05H vv H
n = MIDI channel number: 0H - FH (ch.1 - 16)
Channel Voice Messages
vv = Portamento Time: 00H - 7FH (0 - 127) The Porta Time parameter (PROGRAM SOUND: TONE) will change.
Note off Status 2nd byte 3rd byte
Data Entry (Controller number 6, 38)
8n H kk H vv H
9n H kk H 00H Status 2nd byte 3rd byte Bn H 06H mm H n = MIDI channel number: 0H - FH (ch.1 - 16) Bn H 26H ll H
kk = note number: 00H - 7FH (0 - 127)
vv = note off velocity: 00H - 7FH (0 - 127) n = MIDI channel number: 0H - FH (ch.1 - 16) mm, ll = the value of the parameter specified by RPN/NRPN mm = MSB, ll = LSB
Note on
Volume (Controller number 7)
Status 2nd byte 3rd byte
9n H kk H vv H Status 2nd byte 3rd byte Bn H 07H vv H n = MIDI channel number: 0H - FH (ch.1 - 16) n = MIDI channel number: 0H - FH (ch.1 - 16) kk = note number: 00H - 7FH (0 - 127) vv = Volume: 00H - 7FH (0 - 127) vv = note on velocity: 01H - 7FH (1 - 127) Not received when the Rx Volume parameter (SOUND CTRL: MIDI RX) is OFF. The Level parameter (PROGRAM SOUND: TONE) will change.
Control Change Panpot (Controller number 10) If the corresponding Controller number is selected for the Src1, 2, 3 or Status 2nd byte 3rd byte 4 parameter (PROGRAM SOUND: MFX: MFX CTRL), the corresponding effect will
Bn H 0AH vv H
occur.
n = MIDI channel number: 0H - FH (ch.1 - 16)
Bank Select (Controller number 0, 32)
vv = Panpot: 00H - 40H - 7FH (Left - Center - Right) Status 2nd byte 3rd byte Not received when the Rx Pan parameter (SOUND CTRL: MIDI RX) is OFF. Bn H 00H mm H The Pan parameter (PROGRAM SOUND: TONE) will change.
Bn H 20H ll H
Expression (Controller number 11)
n = MIDI channel number: 0H - FH (ch.1 - 16)
Status 2nd byte 3rd byte
mm, ll = Bank number: 00 00H - 7F 7FH (bank.1 - bank.16384)
Bn H 0BH vv H
Not received when the Rx Bank parameter (SYSTEM: MIDI RX) is OFF. Not received when the Rx Bank parameter (PROGRAM CTRL: MIDI RX) is OFF.
n = MIDI channel number:0H - FH (ch.1 - 16) vv = Expression:00H - 7FH (0 - 127)
The Programs corresponding to each Bank Select are as follows.
Not received when the Rx Exp parameter (PROGRAM CTRL: MIDI RX) is OFF.
BANK SELECT | PROGRAM | GROUP | NUMBER MSB | LSB | NUMBER | |
Hold 1 (Controller number 64)
084 | 000 | 001 - 128 | Program | 01 - 128 : | : | | | : Status 2nd byte 3rd byte 002 | 001 - 064 | | | 257 - 320
Bn H 40H vv H
The Tones corresponding to each Bank Select are as follows.
n = MIDI channel number: 0H - FH (ch.1 - 16) vv = Control value: 00H - 7FH (0 - 127)
BANK SELECT | PROGRAM | GROUP | NUMBER
MSB | LSB | NUMBER | | 0-63 = OFF, 64-127 = ON
Not received when the Rx Hold-1 parameter (SOUND CTRL: MIDI RX) is OFF.
087 | 000 - 001 | 001 - 128 | User Tone | 0001 - 0256
087 | 064 | 001 - 128 | Preset Tone | 0001 - 0128
| : | | | : Portamento (Controller number 65)
| 085 | 001 - 128 | | 0460 - 0587 Status 2nd byte 3rd byte
| : | | | : Bn H 41H vv H | 091 | 001 - 069 | | 1228 - 1296
n = MIDI channel number: 0H - FH (ch.1 - 16) Modulation (Controller number 1) vv = Control value: 00H - 7FH (0 - 127)
0-63 = OFF, 64-127 = ON
Status 2nd byte 3rd byte
The Porta Sw parameter (PROGRAM SOUND: TONE) will change.
Bn H 01H vv H
n = MIDI channel number: 0H - FH (ch.1 - 16) vv = Modulation depth: 00H - 7FH (0 - 127) Not received when the Rx Mod parameter (PROGRAM CTRL: MIDI RX) is OFF.
© 2018 Roland Corporation
