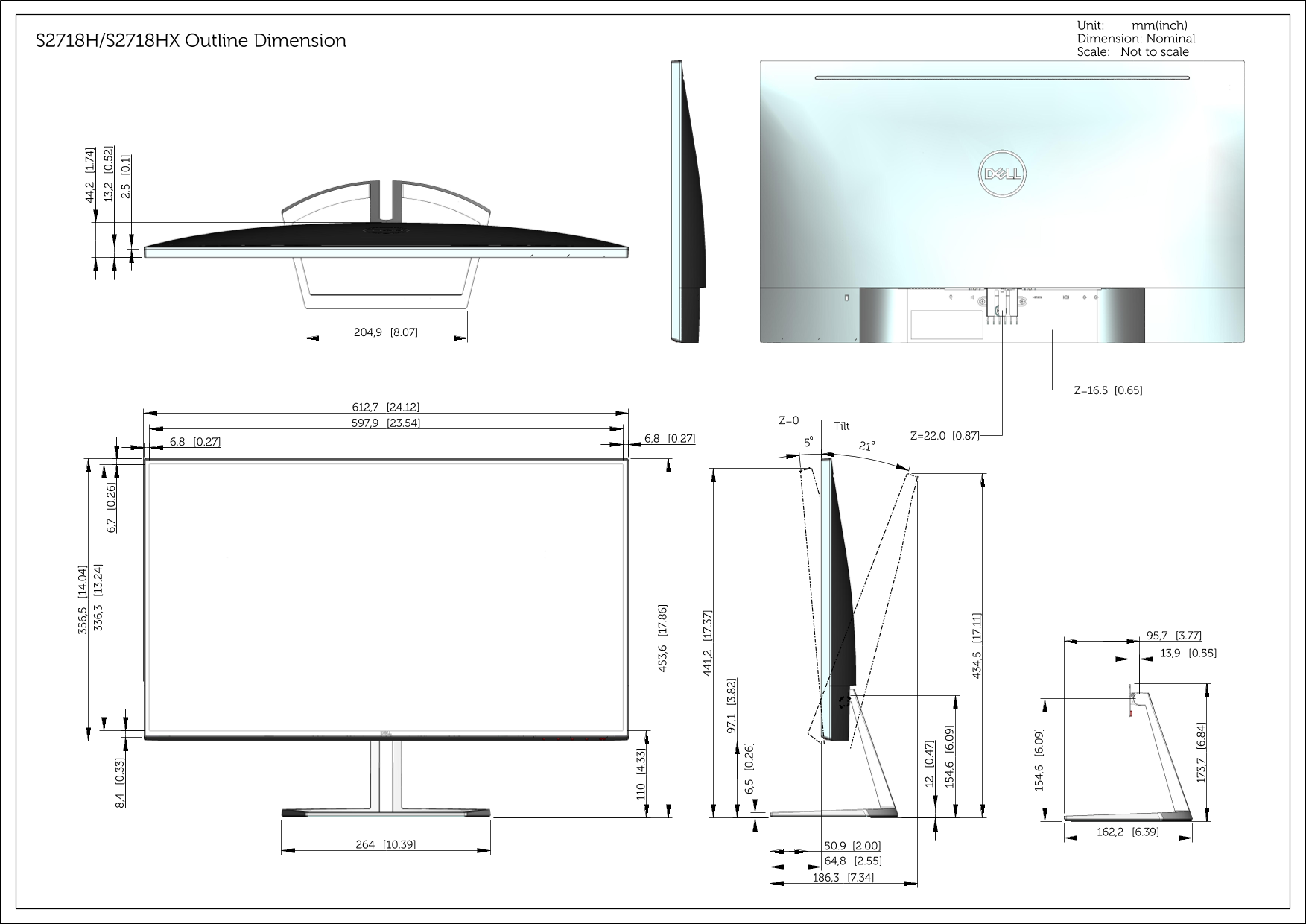

Dell S2718H/S2718HX monitor outline dimension drawing showing physical measurements (mm and inches) including display width (612.7mm), stand depth, tilt range, back view without stand, VESA mounting pattern, and full dimensional specifications for the 27-inch monitor.
Page 1 Text Content
Unit: mm(inch) S2718H/S2718HX Outline Dimension Dimension: Nominal Scale: Not to scale
Page Summary Contents For Dell S2718H S2718HX Edge Guide User Manual
Page 1
Unit: mm(inch) S2718H/S2718HX Outline Dimension Dimension: Nominal Scale: Not to scale
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 506.80 KB |
| Published | July 03, 2026 |
9 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall dimensions of Unit S2718H/S2718HX?
The nominal general outer dimensions are 597.9 mm (23.54 in) x 612.7 mm (24.12 in).
What is the depth dimension measurement of the unit?
One measured profile shows a depth of 204.9 mm (8.07 in).
How large are the marked attachment points on the unit's surface?
Several dimensions for smaller features are provided, including 6.5 mm (0.26 in) and 13.9 mm (0.55 in).
