Dell S2718H S2718HX Outline Drawing
Summary
This document contains the outline dimension drawings for Dell S2718H/S2718HX monitors. It provides nominal measurements in millimeters and inches, detailing the physical specifications including tilt dimensions, width, height, depth, stand base dimensions, and overall form factor. This technical drawing is intended for product designers, AV integrators, and furniture planners who need precise physical specifications for installation planning and ergonomic setup of these display models.
Page 1 Text Content

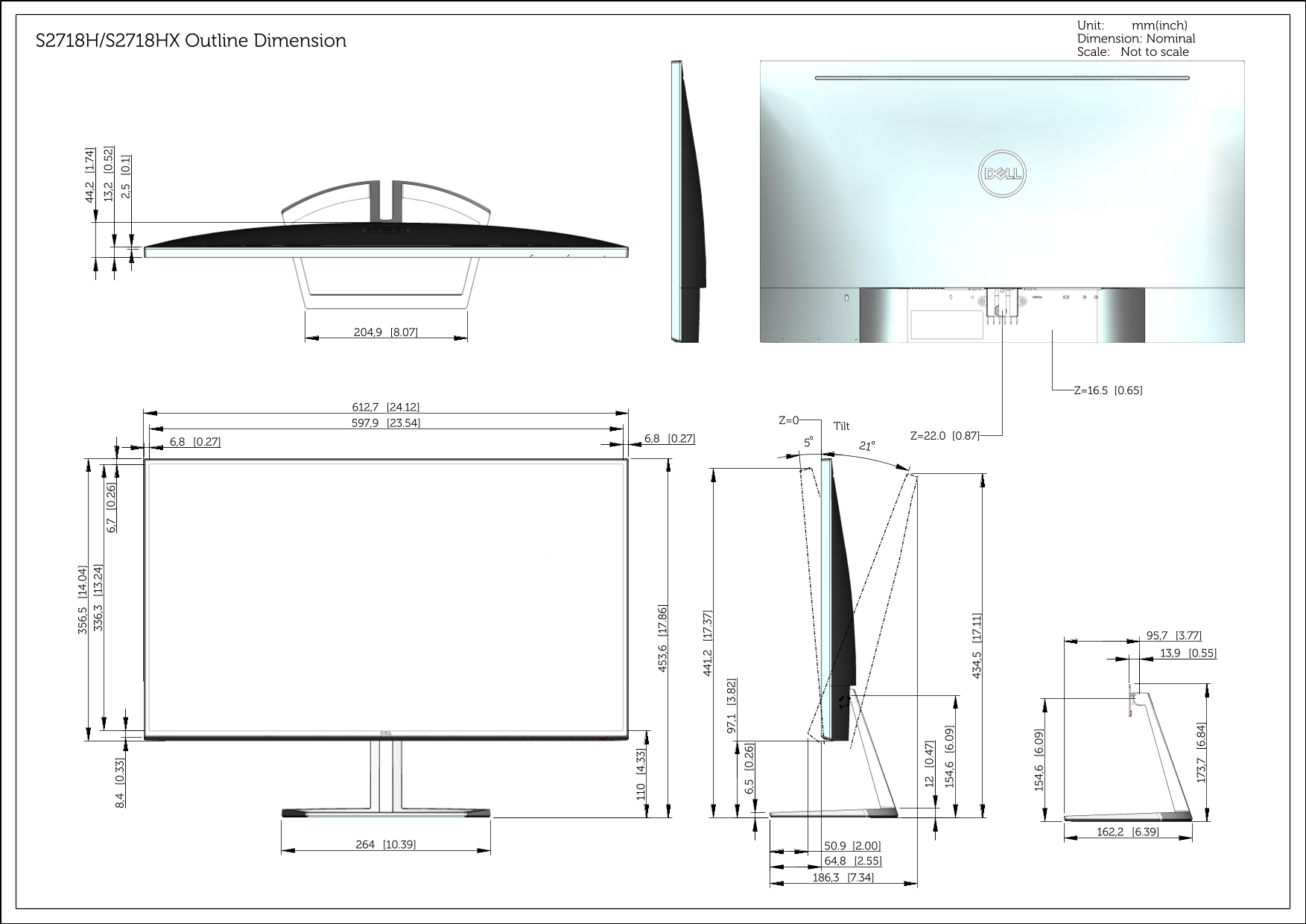

Unit: mm(inch) S2718H/S2718HX Outline Dimension Dimension: Nominal Scale: Not to scale
Page Summary Contents For Dell S2718H S2718HX Outline Drawing
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 506.73 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal outline dimensions of the unit?
The nominal outline dimension is 204.9 [8.07] and 612.7 [24.12].
What is the maximum tilt angle of the device?
The maximum tilt angle is Z=22.0 [0.87].
What are the dimensions at the zero Z position?
At Z=0, the dimensions are 597.9 [23.54] and 612.7 [24.12].
