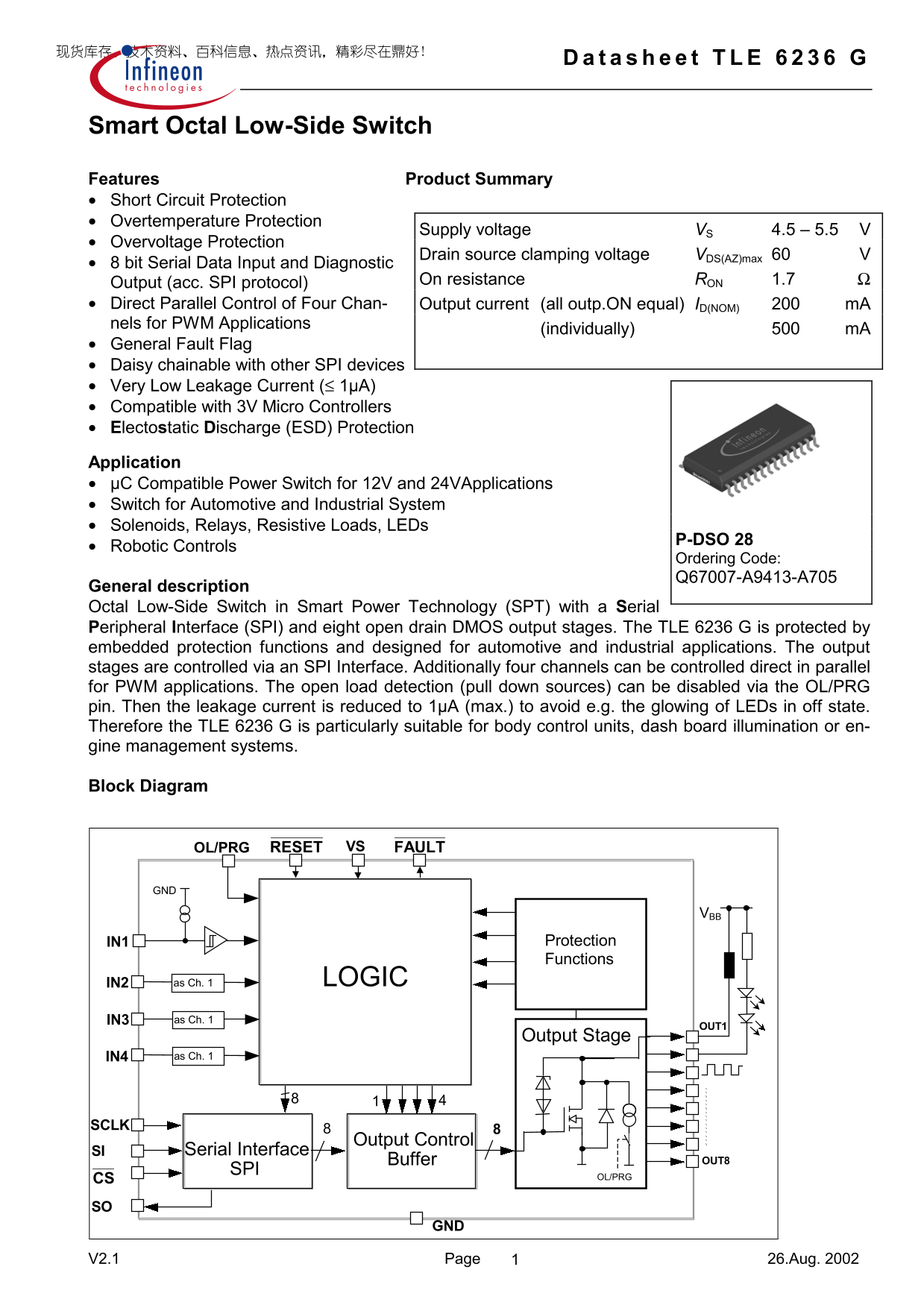

Smart Octal Low-Side Switch

Features Product Summary • Short Circuit Protection • Overtemperature Protection

Supply voltage VS 4.5 – 5.5

• Overvoltage Protection

Drain source clamping voltage VDS(AZ)max 60 V

• 8 bit Serial Data Input and Diagnostic

Output (acc. SPI protocol) On resistance RON 1.7

• Direct Parallel Control of Four Chan- Output current (all outp.ON equal) ID(NOM) m A nels for PWM Applications

(individually) m A

• General Fault Flag • Daisy chainable with other SPI devices • Very Low Leakage Current (≤ 1µA) • Compatible with 3V Micro Controllers • Electostatic Discharge (ESD) Protection

Application • µC Compatible Power Switch for 12V and 24VApplications • Switch for Automotive and Industrial System • Solenoids, Relays, Resistive Loads, LEDs

P-DSO 28

• Robotic Controls

Ordering Code: Q67007-A9413-A705

General description Octal Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and eight open drain DMOS output stages. The TLE 6236 G is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via an SPI Interface. Additionally four channels can be controlled direct in parallel for PWM applications. The open load detection (pull down sources) can be disabled via the OL/PRG pin. Then the leakage current is reduced to 1µA (max.) to avoid e.g. the glowing of LEDs in off state. Therefore the TLE 6236 G is particularly suitable for body control units, dash board illumination or en- gine management systems.

Block Diagram

OL/PRG RESET VS FAULT

IN1 Protection Functions

IN2 as Ch. 1 LOGIC

IN3 as Ch. 1

Output Stage

IN4 as Ch. 1

Output Control

Buffer Serial Interface OUT8

CS OL/PRG

V2.1 Page 26.Aug. 20021

Page Summary Contents For Dell Inspiron Data Sheet - TLE 6236G Manual User Guide

Page 1 Smart Octal Low-Side Switch Features Product Summary • Short Circuit Protection • Overtemperature Protection Supply voltage VS 4.5 – 5.5 • Overvoltage Protection Drain source clamping voltage VDS(AZ)m...
Page 2 Detailed Block Diagram OL/PRG FAULTRESET VS Channel 1 Open load/SCG SCB/Overload Output Stage OL/PRG ≥1 Channel 2 ≥1 Channel 3 OUT3 ≥1 Channel 4 OUT4 Channel 5 OUT5 Channel 6 OUT6 SI Interface Channel...
Page 3 Pin Description Pin Configuration (Top view) GND 1• GND Pin Symbol Function NC NC OUT1 OUT8 GND Ground OUT2 OUT7 NC not connected IN1 RESET OUT1 Power Output Channel 1 IN2 SI OUT2 Power Output Channel...
Page 4 Maximum Ratings for Tj = – 40°C to 150°C Parameter Symbol Values Unit Supply Voltage VS -0.3 ... +7 Continuous Drain Source Voltage (OUT1...OUT8) VDS Input Voltage, All Inputs and Data Lines VIN - 0.3...
Page 5 Electrical Characteristics Parameter and Conditions Symbol Values Unit VS = 4.5 to 5.5 V ; Tj = - 40 °C to + 150 °C ; Reset = H min typ max (unless otherwise specified) 1. Power Supply Supply Voltage ...
Page 6 Electrical Characteristics cont. Parameter and Conditions Symbol Values Unit VS = 4.5 to 5.5 V ; Tj = - 40 °C to + 150 °C ; Reset = H min typ max (unless otherwise specified) 6. SPI-Timing Serial Cloc...
Page 7 Functional Description The TLE 6236 G is an octal-low-side power switch which provides a serial peripheral interface (SPI) to control the 8 power DMOS switches, as well as diagnostic feedback. The pow...
Page 8 Power Transistor Protection Functions1) Each of the eight output stages has its own zener clamp, which causes a voltage limitation at the power transistor when solenoid loads are switched off. The out...
Page 9 SO - Serial Output. Diagnostic data bits are shifted out serially at this pin, the most significant bit first. SO is in a high impedance state until the CS pin goes to a logic low state. New diag- nos...
Page 10 SPI serial input (SI) bit overrides the parallel ON state control from IN1 to IN4 Vref is the threshold reference level for detecting an Open Load/Overload The standard way of obtaining diagnostic inf...
Page 11 Timing Diagrams MSB LSB Outputs OLD NEW Figure 2: Serial Interface CS 0.2 VS t SCKH tlead 0.7VS 0.2VS t SCKL t H 0.7VS 0.2VS Figure 3: Input Timing Diagram 0.7 VS CS SCLK 0.2 VS tvalid t EN t Dis 0.7 ...
Page 12 Application Circuits t ON t OFF Figure 5: Power Outputs VS = 5V OL/PRG FAULT RESET IN1 µC IN2 e.g. C167 IN3 TLE IN4 6236 G MTSR SI MRST SO OUT8 CLK CLK P xy CS GND V2.1 Page 26.Aug. 200212
Page 13 Typical electrical Characteristics S( ) [ hm VD S( Z) [V Drain-Source on-resistance RDS(ON) = f (Tj) ; Vs = 5V Channel 1,4,5,8 Typical Drain- Source ON-Resistance Channel 2,3,5,6 -50 -25 175Tj[°C] Fig...
Page 14 Parallel SPI Configuration Engine Management Application TLE 6236 G in combination with TLE 6240 GP (16-fold switch) for relays and general purpose loads and TLE 6220 GP (quad switch) to drive the inj...
Page 15 Package and Ordering Code (all dimensions in mm) P-DSO 28 Ordering Code TLE 6236 G Q67007-A9413-A705 Published by Infineon Technologies AG, Bereichs Kommunikation St.-Martin-Strasse 76, D-81541 Münche...
