Infineon BFP650 NPN Silicon Germanium RF transistor datasheet designed for high-power amplifiers and low phase noise oscillators. Key specifications include 70GHz transition frequency, 21dB maximum available gain at 1.8GHz, 0.9dB noise figure at 1.8GHz, 13V collector-emitter voltage, 150mA collector current, and SOT343 surface-mount package with gold metallization.
Page 1 Text Content

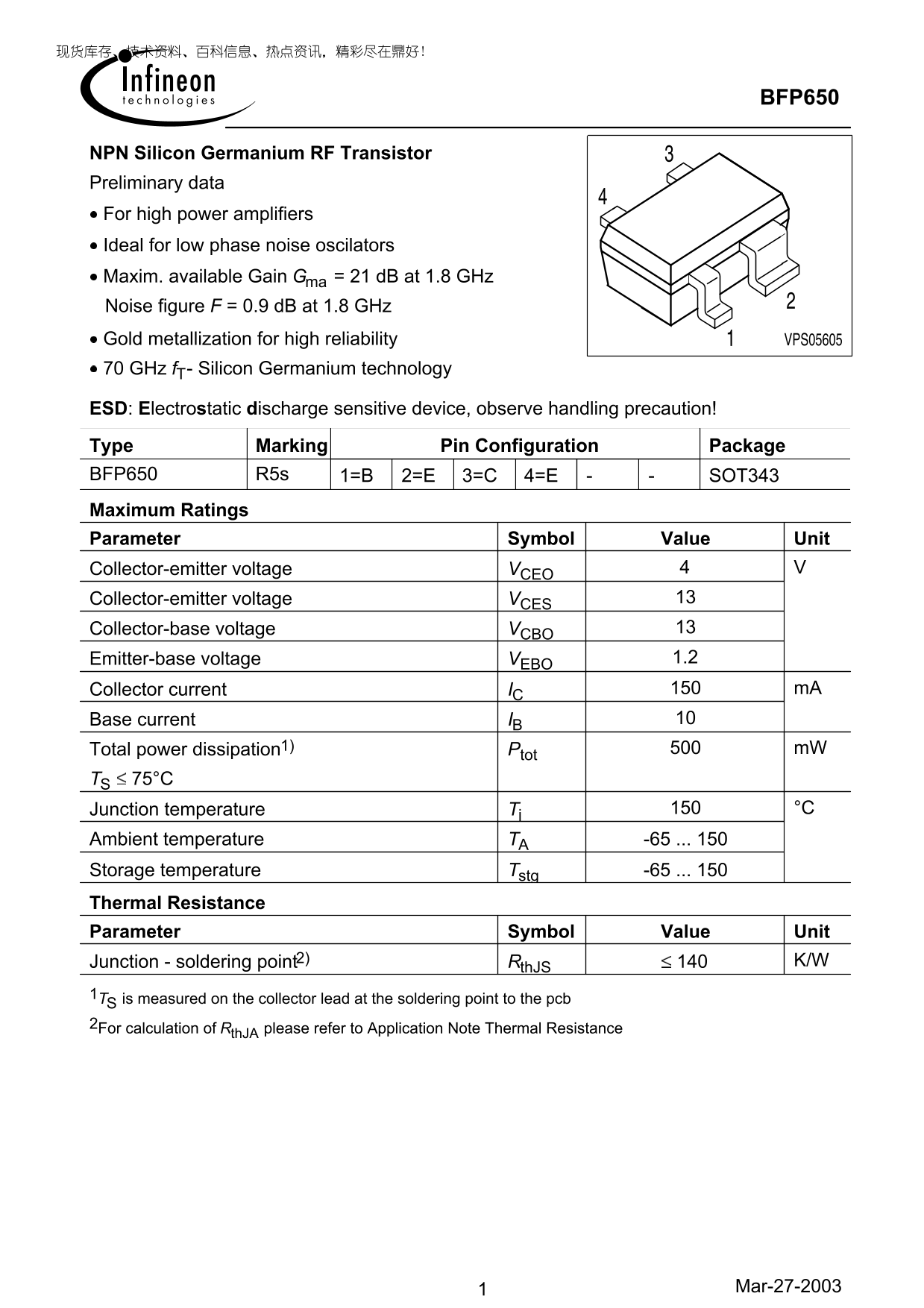

BFP650
NPN Silicon Germanium RF Transistor Preliminary data For high power amplifiers Ideal for low phase noise oscilators Maxim. available Gain Gma = 21 d B at 1.8 GHz Noise figure F = 0.9 d B at 1.8 GHz Gold metallization for high reliability VPS05605 70 GHz f T- Silicon Germanium technology
ESD: Electrostatic discharge sensitive device, observe handling precaution!
Type Marking Pin Configuration Package BFP650 R5s 1=B 2=E 3=C 4=E SOT343 Maximum Ratings Parameter Symbol Value Unit Collector-emitter voltage VCEO Collector-emitter voltage VCES Collector-base voltage VCBO
Emitter-base voltage VEBO 1.2
Collector current IC m A
Base current IB
Total power dissipation1) Ptot m W
TS 75°C
Junction temperature Tj °C
Ambient temperature TA -65 ... 150 Storage temperature Tstg -65 ... 150 Thermal Resistance Parameter Symbol Value Unit
Junction - soldering point2) Rth JS K/W
1TS is measured on the collector lead at the soldering point to the pcb
2For calculation of Rth JA please refer to Application Note Thermal Resistance
Mar-27-20031
