Dell 1510X Projector RS232 Command Interface Manual (English Only)
Summary
This RS232 protocol document for the Dell 1510X projector provides detailed technical specifications for serial communication control, including pin assignments for both the projector-side and cable-side connectors, communication settings such as baud rate (19200 bps), data bits (8), and parity (none). It defines the control command syntax with header and CRC structures, command codes for power and system status, and response message formats with error codes. Designed for AV integrators and control system programmers.
Page 1 Text Content

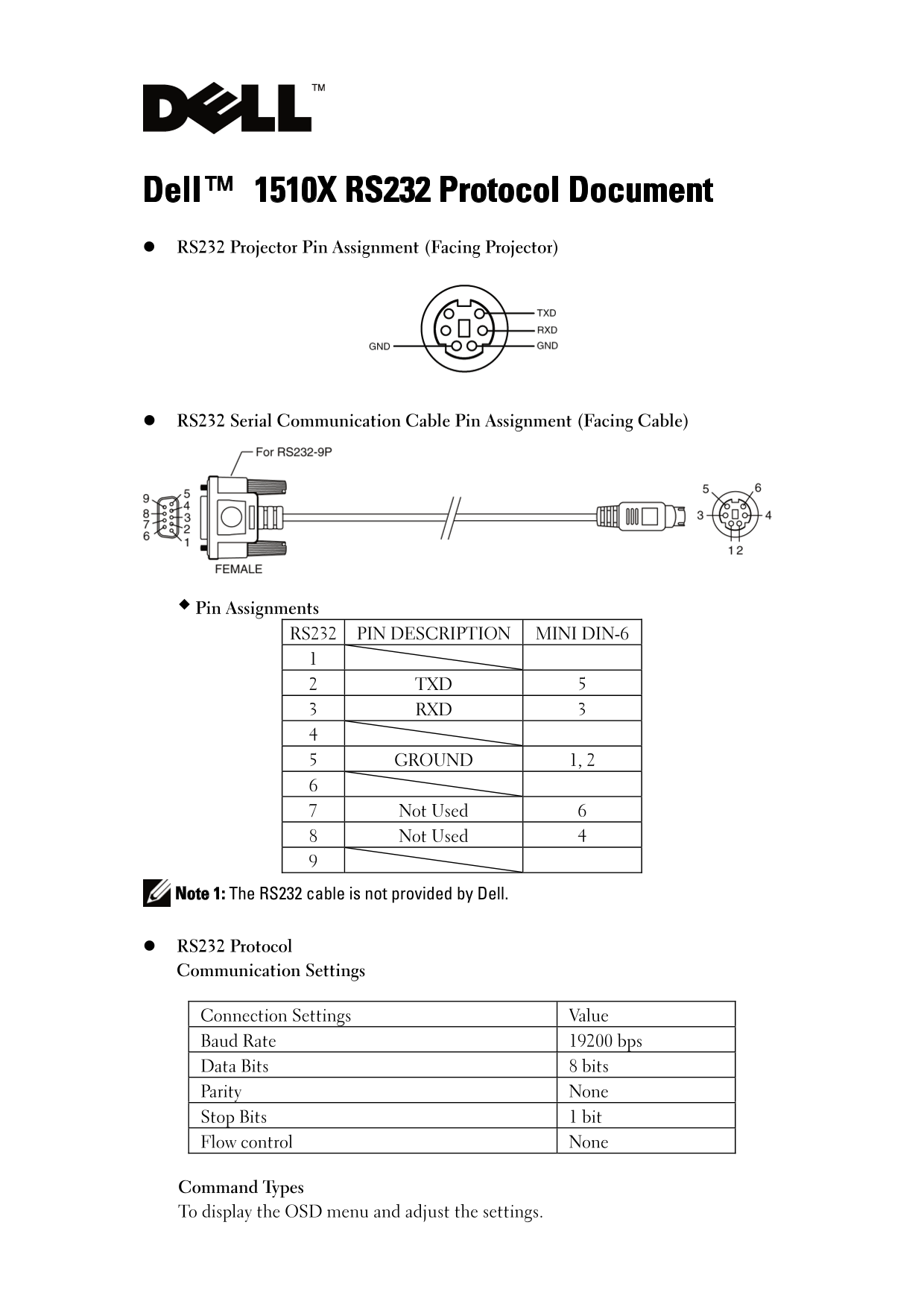

Dell™ 1510X RS232 Protocol Document RS232 Projector Pin Assignment (Facing Projector)
RS232 Serial Communication Cable Pin Assignment (Facing Cable)
Pin Assignments RS232 PIN DESCRIPTION MINI DIN-6
2 TXD 5 3 RXD 3
5 GROUND 1, 2
7 Not Used 6 8 Not Used 4
Note 1: The RS232 cable is not provided by Dell.
RS232 Protocol Communication Settings
Connection Settings Value Baud Rate 19200 bps Data Bits 8 bits Parity None Stop Bits 1 bit Flow control None
Command Types To display the OSD menu and adjust the settings.
Page Summary Contents For Dell 1510X Projector RS232 Command Interface Manual (English Only)
Manual Details
| Brand | Dell |
|---|---|
| Pages | 5 |
| File Size | 289.30 KB |
| Published | July 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the required communication settings for connecting via RS232?
The connection requires a Baud Rate of 19200 bps, Data Bits set to 8 bits, Parity None, Stop Bits set to 1 bit, and Flow control set to None.
How is the 'Power On' command structured?
The full sequence is: 0xbe, 0xef, 0x10, 0x05, 0x00, 0xc6, 0xff, 0x11, 0x11, 0x01, 0x00, 0x01.
What specific response value indicates a connection error or unknown command?
A return value of 0x02 (Error Command) at Byte0 signifies an error, including CRC errors and commands that are not recognized by the projector.
