Dell RS232 Command Line Interface Guide for 1510X Projector
Summary
The Dell 1510X RS232 Protocol Document defines the serial communication protocol for controlling Dell 1510X projectors via RS232. Specifies pin assignments, communication settings (19200 bps, 8 data bits, no parity), command syntax, and response formats. Includes command codes for power control, input selection, OSD navigation, and status queries. Intended for AV integrators and control system programmers.
Page 1 Text Content

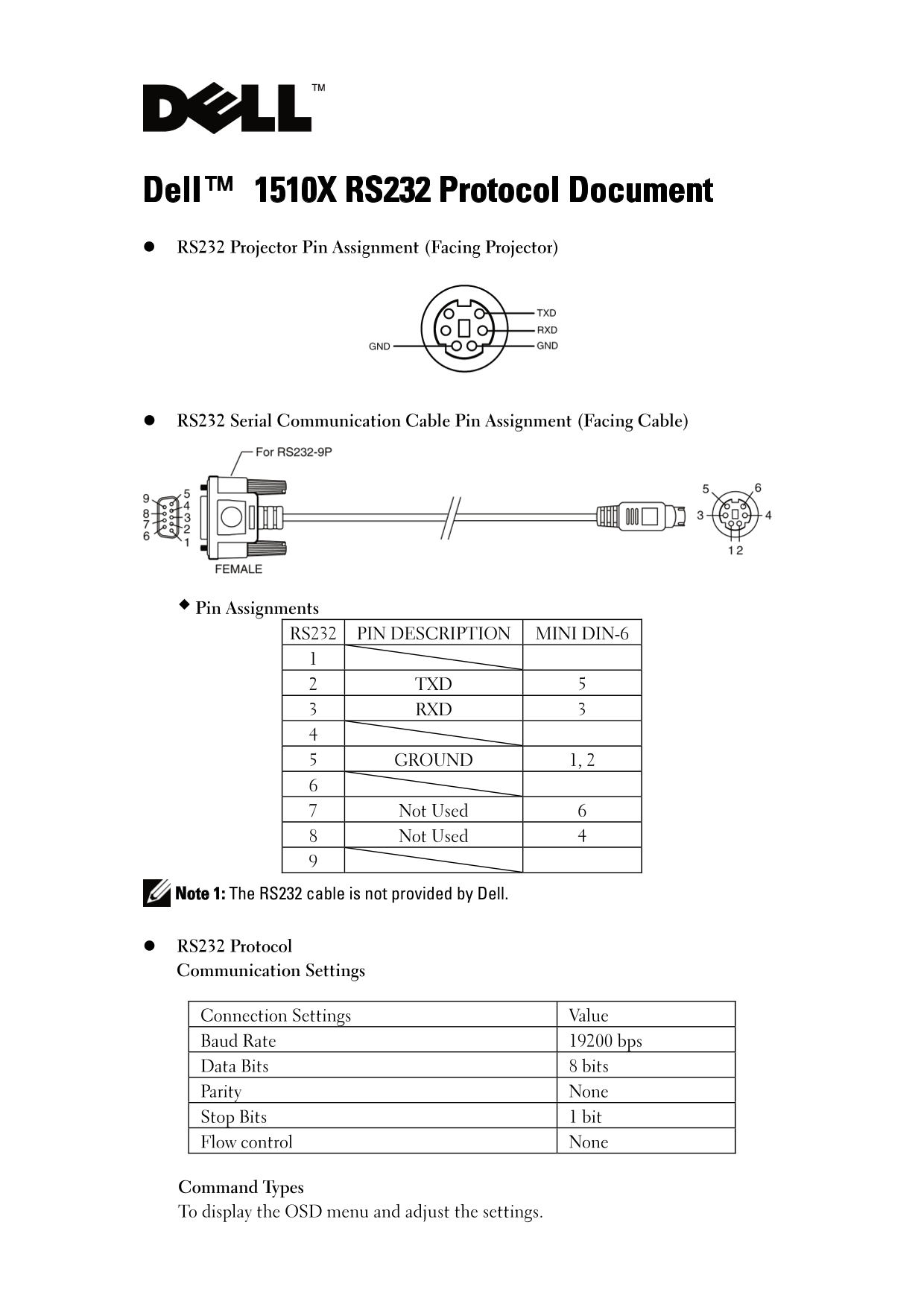

Dell™ 1510X RS232 Protocol Document RS232 Projector Pin Assignment (Facing Projector)
RS232 Serial Communication Cable Pin Assignment (Facing Cable)
Pin Assignments RS232 PIN DESCRIPTION MINI DIN-6
2 TXD 5 3 RXD 3
5 GROUND 1, 2
7 Not Used 6 8 Not Used 4
Note 1: The RS232 cable is not provided by Dell.
RS232 Protocol Communication Settings
Connection Settings Value Baud Rate 19200 bps Data Bits 8 bits Parity None Stop Bits 1 bit Flow control None
Command Types To display the OSD menu and adjust the settings.
