Dell 4220 Projector RS232 Command Line Interface Guide
Summary
The Dell 4220/4320 RS232 Protocol Document defines the serial communication protocol for controlling Dell projectors. It specifies pin assignments for RS232 and Mini DIN-6 connectors, communication settings (19200 bps, 8 data bits, no parity), and command syntax structure including header, address code, payload size, CRC16, message ID, and command codes. The document details control commands for power management, input source selection, and system status queries, along with projector response message formats. Target users are AV integrators, system programmers, and IT professionals who need to integrate Dell projectors into automated control systems.
Page 1 Text Content

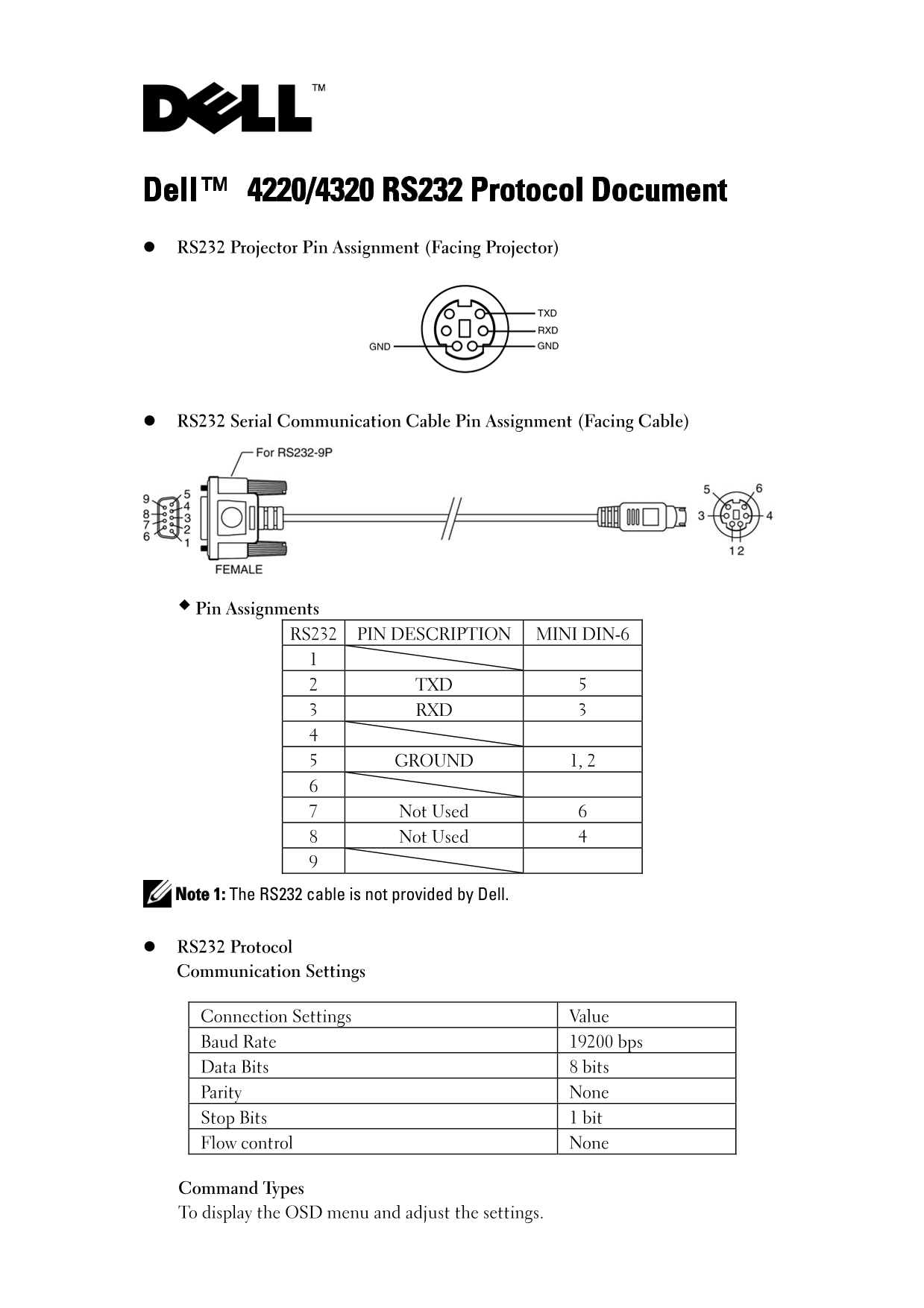

Dell™ 4220/4320 RS232 Protocol Document RS232 Projector Pin Assignment (Facing Projector)
RS232 Serial Communication Cable Pin Assignment (Facing Cable)
Pin Assignments RS232 PIN DESCRIPTION MINI DIN-6
2 TXD 5 3 RXD 3
5 GROUND 1, 2
7 Not Used 6 8 Not Used 4
Note 1: The RS232 cable is not provided by Dell.
RS232 Protocol Communication Settings
Connection Settings Value Baud Rate 19200 bps Data Bits 8 bits Parity None Stop Bits 1 bit Flow control None
Command Types To display the OSD menu and adjust the settings.
