Dell 7700HD Projector SNMP Command Set Document (English Only)
Summary
SNMP Protocol Control Commands List for the Dell 7700FullHD projector. Comprehensive MIB reference documenting RFC1213 standard system and interface OIDs, plus proprietary pdmGeneral MIB objects for product identification, serial number, asset tag, hardware/firmware versions, device age, power-on count, and service personnel. Includes display controller MIBs for TI DDP3021 monitoring and network time server configuration.

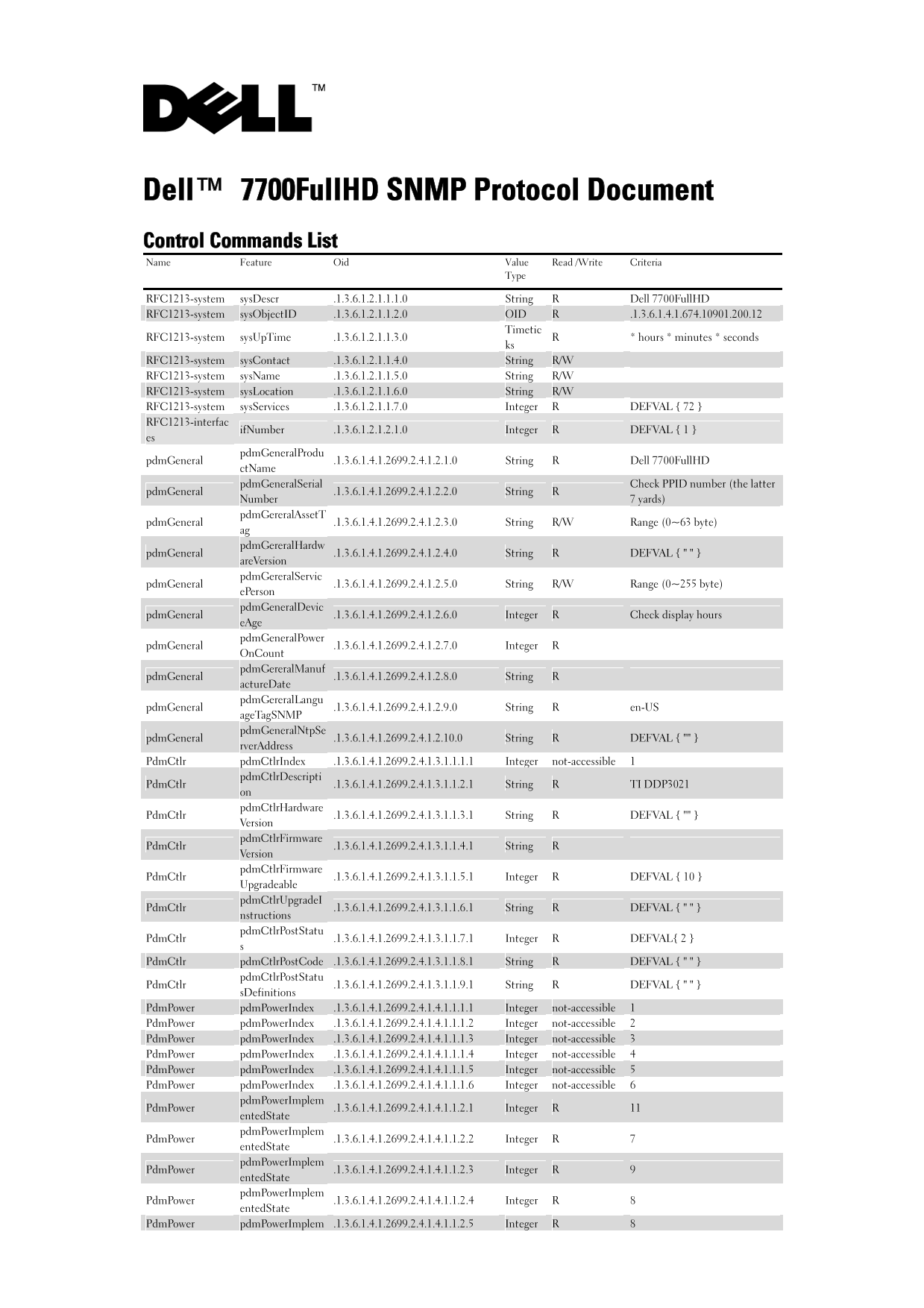

Page 1 Text Content
Dell™ 7700Full HD SNMP Protocol Document Control Commands List Name Feature Oid Value Read /Write Criteria
RFC1213-system sys Descr .1.3.6.1.2.1.1.1.0 String R Dell 7700Full HD RFC1213-system sys Object ID .1.3.6.1.2.1.1.2.0 OID R .1.3.6.1.4.1.674.10901.200.12
Timetic
RFC1213-system sys Up Time .1.3.6.1.2.1.1.3.0 R * hours * minutes * seconds
RFC1213-system sys Contact .1.3.6.1.2.1.1.4.0 String R/W RFC1213-system sys Name .1.3.6.1.2.1.1.5.0 String R/W RFC1213-system sys Location .1.3.6.1.2.1.1.6.0 String R/W RFC1213-system sys Services .1.3.6.1.2.1.1.7.0 Integer R DEFVAL { 72 } RFC1213-interfac
if Number .1.3.6.1.2.1.2.1.0 Integer R DEFVAL { 1 }
pdm General Produ
pdm General .1.3.6.1.4.1.2699.2.4.1.2.1.0 String R Dell 7700Full HD
ct Name pdm General Serial Check PPID number (the latter
pdm General .1.3.6.1.4.1.2699.2.4.1.2.2.0 String R
Number 7 yards) pdm Gereral Asset T
pdm General .1.3.6.1.4.1.2699.2.4.1.2.3.0 String R/W Range (0~63 byte)
ag pdm Gereral Hardw
pdm General .1.3.6.1.4.1.2699.2.4.1.2.4.0 String R DEFVAL { " " }
are Version pdm Gereral Servic
pdm General .1.3.6.1.4.1.2699.2.4.1.2.5.0 String R/W Range (0~255 byte)
e Person pdm General Devic
pdm General .1.3.6.1.4.1.2699.2.4.1.2.6.0 Integer R Check display hours
e Age pdm General Power
pdm General .1.3.6.1.4.1.2699.2.4.1.2.7.0 Integer R
On Count pdm Gereral Manuf
pdm General .1.3.6.1.4.1.2699.2.4.1.2.8.0 String R
acture Date pdm Gereral Langu
pdm General .1.3.6.1.4.1.2699.2.4.1.2.9.0 String R en-US
age Tag SNMP pdm General Ntp Se
pdm General .1.3.6.1.4.1.2699.2.4.1.2.10.0 String R DEFVAL { "" }
rver Address
Pdm Ctlr pdm Ctlr Index .1.3.6.1.4.1.2699.2.4.1.3.1.1.1.1 Integer not-accessible 1
pdm Ctlr Descripti
Pdm Ctlr .1.3.6.1.4.1.2699.2.4.1.3.1.1.2.1 String R TI DDP3021
on pdm Ctlr Hardware
Pdm Ctlr .1.3.6.1.4.1.2699.2.4.1.3.1.1.3.1 String R DEFVAL { "" }
Version pdm Ctlr Firmware
Pdm Ctlr .1.3.6.1.4.1.2699.2.4.1.3.1.1.4.1 String R
Version pdm Ctlr Firmware
Pdm Ctlr .1.3.6.1.4.1.2699.2.4.1.3.1.1.5.1 Integer R DEFVAL { 10 }
Upgradeable pdm Ctlr Upgrade I
Pdm Ctlr .1.3.6.1.4.1.2699.2.4.1.3.1.1.6.1 String R DEFVAL { " " }
nstructions pdm Ctlr Post Statu
Pdm Ctlr .1.3.6.1.4.1.2699.2.4.1.3.1.1.7.1 Integer R DEFVAL{ 2 }
Pdm Ctlr pdm Ctlr Post Code .1.3.6.1.4.1.2699.2.4.1.3.1.1.8.1 String R DEFVAL { " " }
pdm Ctlr Post Statu
Pdm Ctlr .1.3.6.1.4.1.2699.2.4.1.3.1.1.9.1 String R DEFVAL { " " }
s Definitions
Pdm Power pdm Power Index .1.3.6.1.4.1.2699.2.4.1.4.1.1.1.1 Integer not-accessible 1 Pdm Power pdm Power Index .1.3.6.1.4.1.2699.2.4.1.4.1.1.1.2 Integer not-accessible 2 Pdm Power pdm Power Index .1.3.6.1.4.1.2699.2.4.1.4.1.1.1.3 Integer not-accessible 3 Pdm Power pdm Power Index .1.3.6.1.4.1.2699.2.4.1.4.1.1.1.4 Integer not-accessible 4 Pdm Power pdm Power Index .1.3.6.1.4.1.2699.2.4.1.4.1.1.1.5 Integer not-accessible 5 Pdm Power pdm Power Index .1.3.6.1.4.1.2699.2.4.1.4.1.1.1.6 Integer not-accessible 6
pdm Power Implem
Pdm Power .1.3.6.1.4.1.2699.2.4.1.4.1.1.2.1 Integer R 11
ented State pdm Power Implem
Pdm Power .1.3.6.1.4.1.2699.2.4.1.4.1.1.2.2 Integer R 7
ented State pdm Power Implem
Pdm Power .1.3.6.1.4.1.2699.2.4.1.4.1.1.2.3 Integer R 9
ented State pdm Power Implem
Pdm Power .1.3.6.1.4.1.2699.2.4.1.4.1.1.2.4 Integer R 8
ented State
Pdm Power pdm Power Implem .1.3.6.1.4.1.2699.2.4.1.4.1.1.2.5 Integer R 8
