VISHAY MODELS VPR220 AND VPR221 Precision Foil Power Resistors in TO 220 Configuration

Models VPR220 AND VPR221, made from Vishay Bulk Metal® foil, offer low TCR, high stability, tight tolerance and fast response time in a small, molded resistor. Model VPR220 is a 2 lead de- vice. Model VPR221 is a 4 lead Kelvin connected device. The 4 leaded version is highly recommended for precision applications requiring ohmic values of 100R or less.

FEATURES Power: 8 watts chassis mounted (per MIL-R-39009) Load Life Stability: ±0.05% maximum ∆R at rated power and temperature for 2,000 hours Temperature Coefficient of Resistance: to ±5 ppm/°C Resistance Range: 0.5 to 10K Ω Tolerance: To ±0.01% Low Thermal EMF: 0.15 µV/°C maximum (lead effect) Non-Inductive Construction Heat sink is Isolated

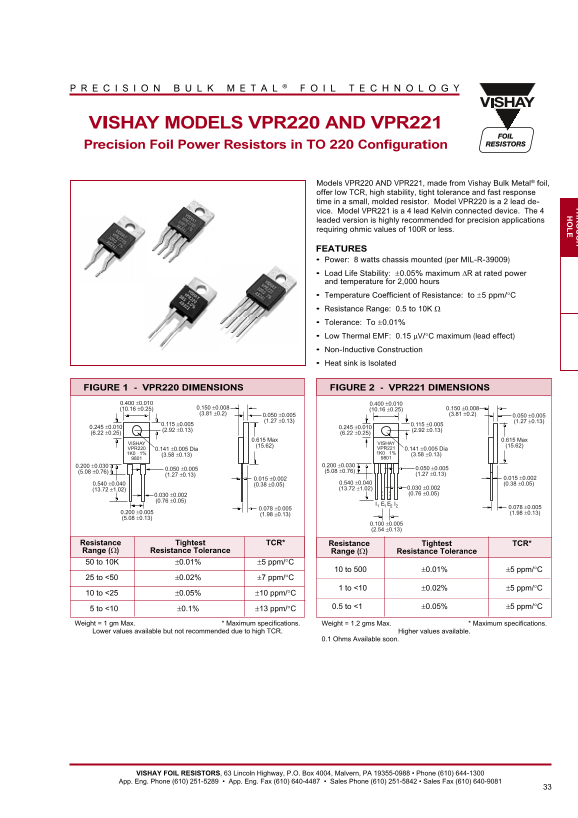

FIGURE 1 - VPR220 DIMENSIONS FIGURE 2 - VPR221 DIMENSIONS

0.615 Max 0.615 Max

VISHAY VISHAY

VPR220 0.141 ±0.005 Dia VPR221 0.141 ±0.005 Dia 1K0 1% 1K0 1% (3.58 ±0.13)

Resistance Tightest TCR* Resistance Tightest TCR* Range (Ω) Resistance Tolerance Range (Ω) Resistance Tolerance 50 to 10K ±0.01% ±5 ppm/°C

10 to ±0.01% ±5 ppm/°C

25 to <50 ±0.02% ±7 ppm/°C

1 to <10 ±0.02% ±5 ppm/°C

10 to <25 ±0.05% ±10 ppm/°C

0.5 to <1 ±0.05% ±5 ppm/°C

5 to <10 ±0.1% ±13 ppm/°C Weight = 1 gm Max. * Maximum specifications. Weight = 1.2 gms Max. * Maximum specifications. Lower values available but not recommended due to high TCR. Higher values available.

0.1 Ohms Available soon.
