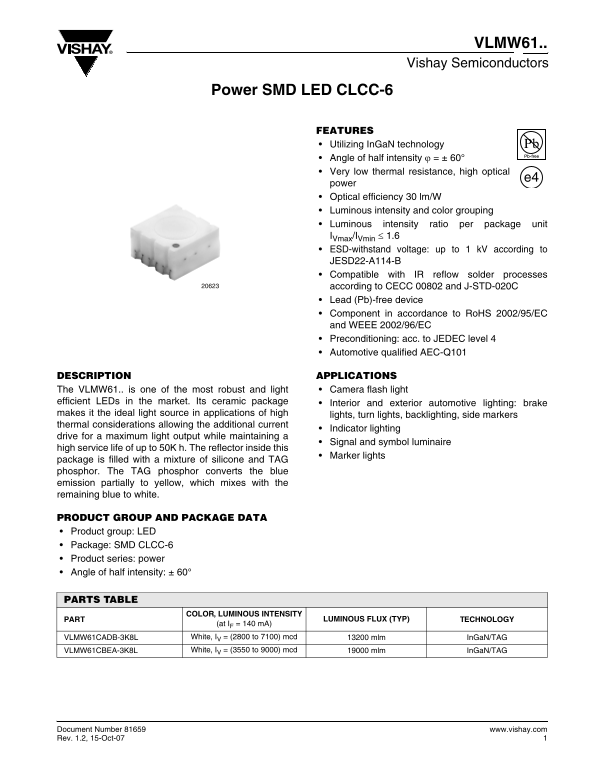

VLMW61..
Vishay Semiconductors
Power SMD LED CLCC-6
FEATURES Utilizing In Ga N technology Angle of half intensity ϕ = ± 60° Very low thermal resistance, high optical
power Optical efficiency 30 lm/W Luminous intensity and color grouping Luminous intensity ratio per package unit IVmax/IVmin ≤ 1.6 ESD-withstand voltage: up to 1 k V according to JESD22-A114-B Compatible with IR reflow solder processes according to CECC 00802 and J-STD-020C Lead (Pb)-free device Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC Preconditioning: acc. to JEDEC level 4 Automotive qualified AEC-Q101
DESCRIPTION APPLICATIONS The VLMW61.. is one of the most robust and light Camera flash light
efficient LEDs in the market. Its ceramic package Interior and exterior automotive lighting: brake makes it the ideal light source in applications of high lights, turn lights, backlighting, side markers thermal considerations allowing the additional current
Indicator lighting
drive for a maximum light output while maintaining a
Signal and symbol luminaire
high service life of up to 50K h. The reflector inside this
Marker lights
package is filled with a mixture of silicone and TAG phosphor. The TAG phosphor converts the blue emission partially to yellow, which mixes with the remaining blue to white.
PRODUCT GROUP AND PACKAGE DATA Product group: LED Package: SMD CLCC-6 Product series: power Angle of half intensity: ± 60°
PARTS TABLE
COLOR, LUMINOUS INTENSITY
PART LUMINOUS FLUX (TYP) TECHNOLOGY
(at IF = 140 m A) VLMW61CADB-3K8L White, IV = (2800 to 7100) mcd 13200 mlm In Ga N/TAG VLMW61CBEA-3K8L White, IV = (3550 to 9000) mcd 19000 mlm In Ga N/TAG
Document Number 81659 www.vishay.com Rev. 1.2, 15-Oct-07
