Vishay VLM.33.. Specifications and User Guide
Summary
Discover the VLM.33.. Series of high-performance Power SMD LEDs in a reliable PLCC-2 package. Featuring advanced AlInGaP technology, these components are designed for mission-critical applications like traffic signals, dashboard illumination, and general indicator lighting. This technical guide provides comprehensive details on electrical characteristics, thermal performance, compatibility with various soldering techniques (Reflow, wave), and assures compliance with industry standards including AEC-Q101 and RoHS directives. Ideal for electronics manufacturers requiring bright, reliable, and colored LED solutions.

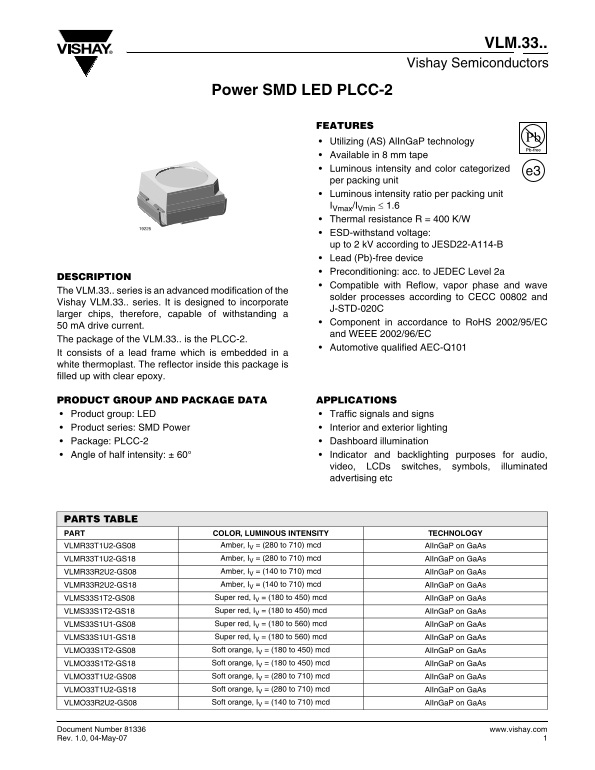

Page 1 Text Content
VLM.33..
Vishay Semiconductors
Power SMD LED PLCC-2
FEATURES Utilizing (AS) Al In Ga P technology Available in 8 mm tape Luminous intensity and color categorized
per packing unit Luminous intensity ratio per packing unit IVmax/IVmin ≤ 1.6 Thermal resistance R = 400 K/W ESD-withstand voltage: up to 2 k V according to JESD22-A114-B Lead (Pb)-free device Preconditioning: acc. to JEDEC Level 2a
DESCRIPTION
Compatible with Reflow, vapor phase and wave
The VLM.33.. series is an advanced modification of the
solder processes according to CECC 00802 and
Vishay VLM.33.. series. It is designed to incorporate
J-STD-020C
larger chips, therefore, capable of withstanding a
Component in accordance to Ro HS 2002/95/EC
50 m A drive current.
and WEEE 2002/96/EC
The package of the VLM.33.. is the PLCC-2.
Automotive qualified AEC-Q101
It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled up with clear epoxy.
PRODUCT GROUP AND PACKAGE DATA APPLICATIONS Product group: LED Traffic signals and signs Product series: SMD Power Interior and exterior lighting Package: PLCC-2 Dashboard illumination Angle of half intensity: ± 60° Indicator and backlighting purposes for audio, video, LCDs switches, symbols, illuminated advertising etc
PARTS TABLE PART COLOR, LUMINOUS INTENSITY TECHNOLOGY
VLMR33T1U2-GS08 Amber, IV = (280 to 710) mcd Al In Ga P on Ga As VLMR33T1U2-GS18 Amber, IV = (280 to 710) mcd Al In Ga P on Ga As VLMR33R2U2-GS08 Amber, IV = (140 to 710) mcd Al In Ga P on Ga As VLMR33R2U2-GS18 Amber, IV = (140 to 710) mcd Al In Ga P on Ga As VLMS33S1T2-GS08 Super red, IV = (180 to 450) mcd Al In Ga P on Ga As VLMS33S1T2-GS18 Super red, IV = (180 to 450) mcd Al In Ga P on Ga As VLMS33S1U1-GS08 Super red, IV = (180 to 560) mcd Al In Ga P on Ga As VLMS33S1U1-GS18 Super red, IV = (180 to 560) mcd Al In Ga P on Ga As VLMO33S1T2-GS08 Soft orange, IV = (180 to 450) mcd Al In Ga P on Ga As VLMO33S1T2-GS18 Soft orange, IV = (180 to 450) mcd Al In Ga P on Ga As VLMO33T1U2-GS08 Soft orange, IV = (280 to 710) mcd Al In Ga P on Ga As VLMO33T1U2-GS18 Soft orange, IV = (280 to 710) mcd Al In Ga P on Ga As VLMO33R2U2-GS08 Soft orange, IV = (140 to 710) mcd Al In Ga P on Ga As
Document Number 81336 www.vishay.com Rev. 1.0, 04-May-07
Page Summary Contents For Vishay VLM.33.. Specifications and User Guide
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 13 |
| File Size | 178.42 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the mechanical package type for VLM.33.. LEDs?
The package is a PLCC-2 that consists of a lead frame embedded in white thermoplast.
Does this device comply with RoHS and other regulations?
Yes, it is a Lead (Pb)-free device compatible with RoHS 2002/95/EC and WEEE 2002/96/EC standards.
What are the operating temperature ranges?
The product has an operating temperature range of -40 to +100°C, with storage up to -40 to +100°C.
Can this LED be used in various soldering processes?
Yes, it is compatible with Reflow, vapor phase, and wave soldering methods.
