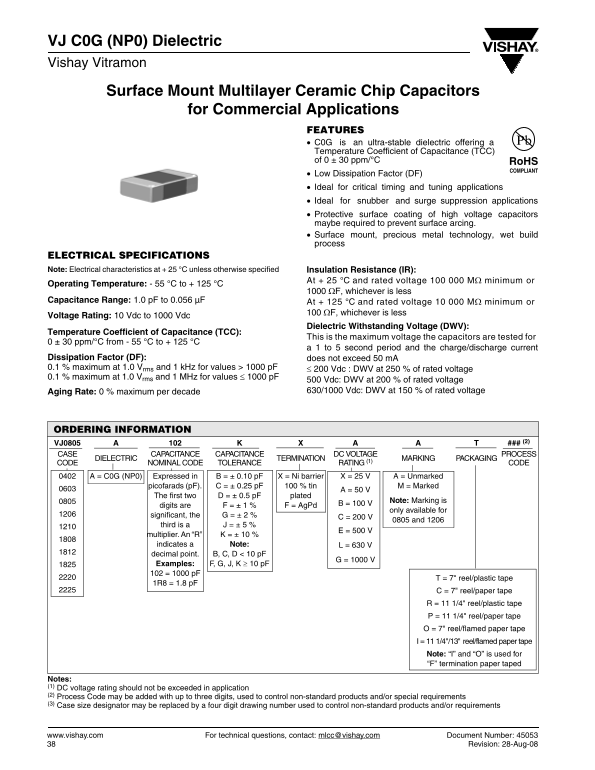

Vishay VJ C0G( NP0) Dielectric Data Sheet
Summary
These Vishay VJ C0G (NP0) surface mount chip capacitors are ultra-stable components engineered for critical electronic applications like timing, tuning, and surge suppression. Ideal for professional designers building robust circuits in commercial settings, these capacitors maintain excellent stability (TCC of 0 ± 30 ppm/°C). The accompanying manual provides comprehensive technical coverage, including full dimensional specifications, detailed electrical parameters across multiple voltage ratings, precise ordering codes, and application guidelines to ensure optimal integration.
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 6 |
| File Size | 103.48 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What dielectric constant is recommended for ultra-stable performance?
The C0G (NP0) dielectric is recommended for its ultra-stability, offering a Temperature Coefficient of Capacitance (TCC) of 0 ± 30 ppm/°C.
What are the operating temperature extremes for these capacitors?
They operate from -55 °C to +125 °C.
Which dimensions are available in surface mount packages?
Available case sizes include 0402, 0603, 0805, 1206, and 1210.
Are these capacitors suitable for high voltage applications?
Yes, the Voltage Rating ranges from 10 Vdc up to components rated for up to 1000 Vdc.
