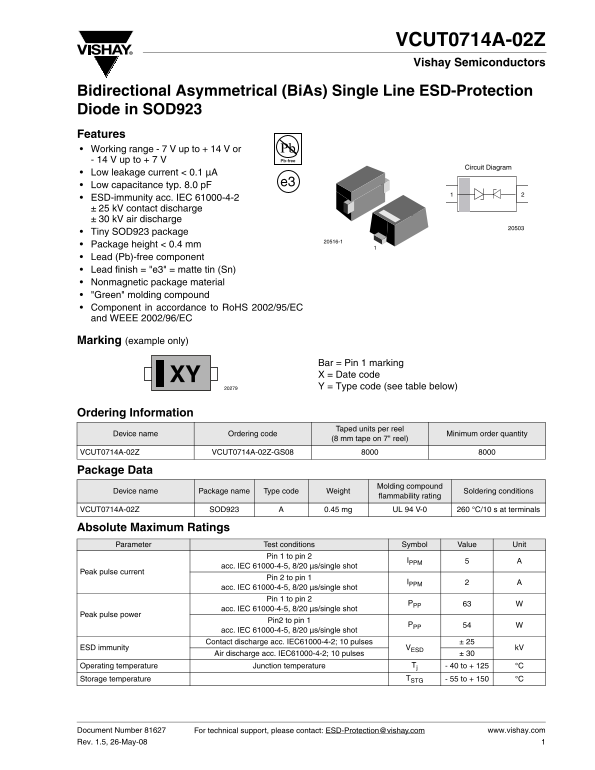

VCUT0714A-02Z Vishay Semiconductors
Bidirectional Asymmetrical (Bi As) Single Line ESD-Protection Diode in SOD923 Features Working range - 7 V up to + 14 V or - 14 V up to + 7 V
Circuit Diagram
Low leakage current < 0.1 µA
Low capacitance typ. 8.0 p F e3
ESD-immunity acc. IEC 61000-4-2 ± 25 k V contact discharge ± 30 k V air discharge Tiny SOD923 package
Package height < 0.4 mm Lead (Pb)-free component Lead finish = "e3" = matte tin (Sn) Nonmagnetic package material "Green" molding compound Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Marking (example only)
Bar = Pin 1 marking XY X = Date code Y = Type code (see table below)
Ordering Information
Taped units per reel
Device name Ordering code Minimum order quantity
(8 mm tape on 7" reel)
VCUT0714A-02Z VCUT0714A-02Z-GS08
Package Data
Molding compound
Device name Package name Type code Weight Soldering conditions
flammability rating
VCUT0714A-02Z SOD923 0.45 mg UL 94 V-0 260 °C/10 s at terminals
Absolute Maximum Ratings Parameter Test conditions Symbol Value Unit
Pin 1 to pin 2
acc. IEC 61000-4-5, 8/20 µs/single shot
Peak pulse current
Pin 2 to pin 1
acc. IEC 61000-4-5, 8/20 µs/single shot
Pin 1 to pin 2
acc. IEC 61000-4-5, 8/20 µs/single shot
Peak pulse power
Pin2 to pin 1
acc. IEC 61000-4-5, 8/20 µs/single shot Contact discharge acc. IEC61000-4-2; 10 pulses ± 25
ESD immunity VESD k V
Air discharge acc. IEC61000-4-2; 10 pulses ± 30
Operating temperature Junction temperature Tj - 40 to + 125 °C Storage temperature TSTG - 55 to + 150 °C
