Vishay TZMC Data Sheet
Summary
Explore detailed specifications and performance data for semiconductor voltage stabilization diodes, engineered for robust power management in sensitive circuitry. This technical manual provides critical electrical characteristics, including absolute maximum ratings, current-voltage curves, and temperature compensation information. It is essential reading for electronics designers and engineers who require reliable components built to meet stringent global standards, including verifiable compliance regarding ozone depleting substances (ODSs).
Page 1 Text Content
查询TZMC供应商
TZMC... Vishay Telefunken

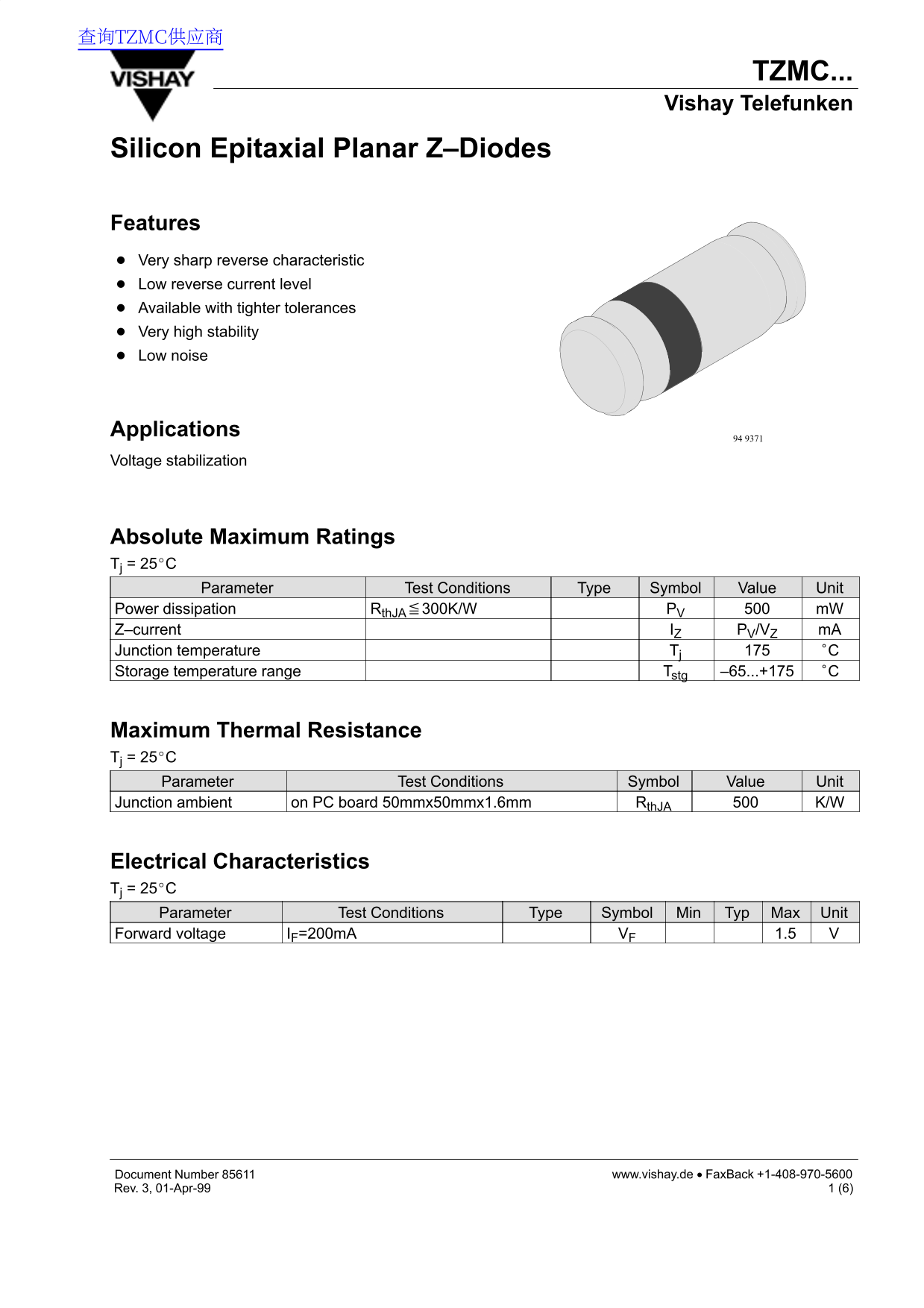

Silicon Epitaxial Planar Z–Diodes
Features Very sharp reverse characteristic Low reverse current level Available with tighter tolerances Very high stability Low noise
Applications
Voltage stabilization
Absolute Maximum Ratings Tj = 25C
Parameter Test Conditions Type Symbol Value Unit
Power dissipation Rth JA300K/W PV m W Z–current IZ PV/VZ m A Junction temperature Tj Storage temperature range Tstg –65...+175
Maximum Thermal Resistance Tj = 25C Parameter Test Conditions Symbol Value Unit Junction ambient on PC board 50mmx50mmx1.6mm Rth JA K/W
Electrical Characteristics Tj = 25C Parameter Test Conditions Type Symbol Min Typ Max Unit Forward voltage IF=200m A VF 1.5
www.vishay.de • Fax Back +1-408-970-5600Document Number 85611
Rev. 3, 01-Apr-99 1 (6)
