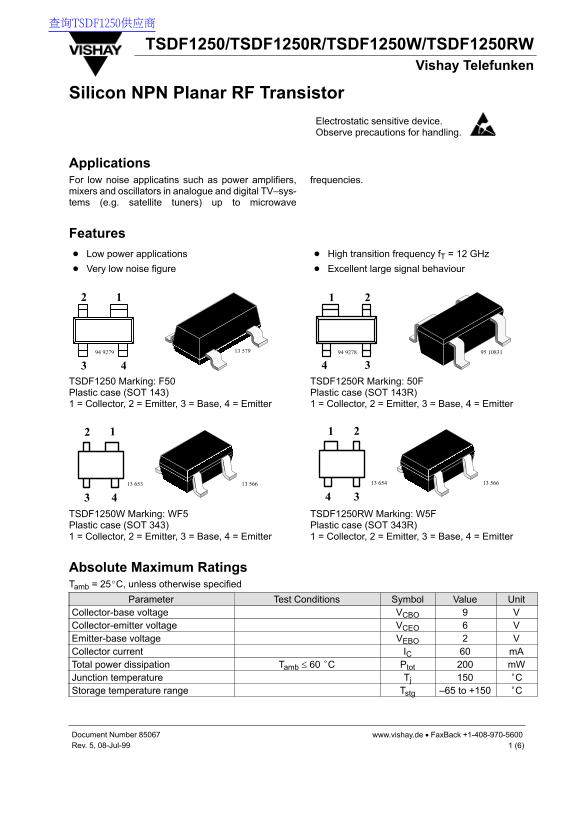

Page 1 Text Content
查询TSDF1250供应商
TSDF1250/TSDF1250R/TSDF1250W/TSDF1250RW
Vishay Telefunken
Silicon NPN Planar RF Transistor
Electrostatic sensitive device. Observe precautions for handling.
Applications
For low noise applicatins such as power amplifiers, frequencies.
mixers and oscillators in analogue and digital TV–sys- tems (e.g. satellite tuners) up to microwave
Features Low power applications High transition frequency f T = 12 GHz Very low noise figure Excellent large signal behaviour
TSDF1250 Marking: F50 TSDF1250R Marking: 50F Plastic case (SOT 143) Plastic case (SOT 143R) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter
TSDF1250W Marking: WF5 TSDF1250RW Marking: W5F Plastic case (SOT 343) Plastic case (SOT 343R) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter
Absolute Maximum Ratings Tamb = 25C, unless otherwise specified
Parameter Test Conditions Symbol Value Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO Collector current IC m A Total power dissipation Tamb ≤ 60 C Ptot m W Junction temperature Tj Storage temperature range Tstg –65 to +150
Document Number 85067 www.vishay.de • Fax Back +1-408-970-5600 Rev. 5, 08-Jul-99 1 (6)
