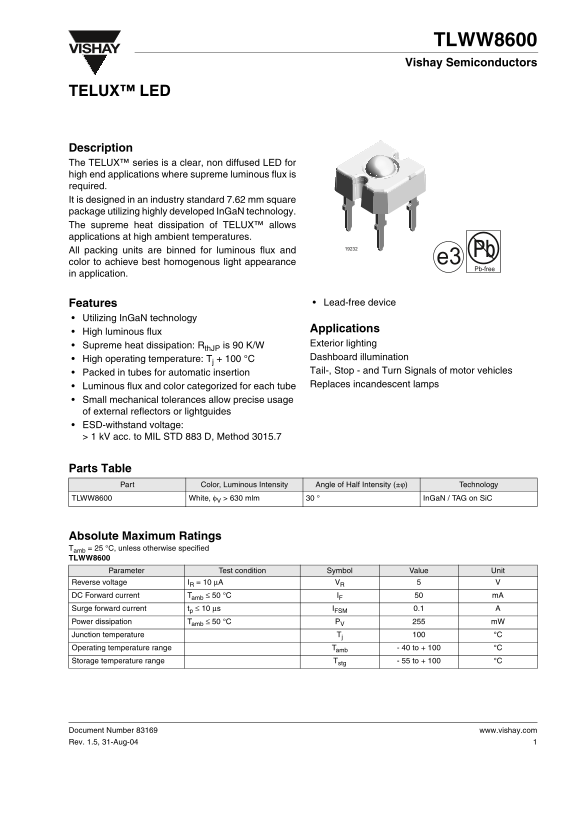

Page 1 Text Content
TLWW8600
VISHAY
Vishay Semiconductors
TELUX™ LED
Description The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed In Ga N technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux and Pb
color to achieve best homogenous light appearance e3 Pb-free
in application.
Features Lead-free device
Utilizing In Ga N technology
Applications
High luminous flux
Supreme heat dissipation: Rth JP is 90 K/W Exterior lighting High operating temperature: Tj + 100 °C Dashboard illumination Packed in tubes for automatic insertion Tail-, Stop - and Turn Signals of motor vehicles Luminous flux and color categorized for each tube Replaces incandescent lamps
Small mechanical tolerances allow precise usage of external reflectors or lightguides ESD-withstand voltage: > 1 k V acc. to MIL STD 883 D, Method 3015.7
Parts Table
Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology
TLWW8600 White, φV > 630 mlm In Ga N / TAG on Si C
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified TLWW8600
Parameter Test condition Symbol Value Unit
Reverse voltage IR = 10 µA VR
DC Forward current Tamb ≤ 50 °C IF m A
Surge forward current tp ≤ 10 µs IFSM 0.1
Power dissipation Tamb ≤ 50 °C PV m W
Junction temperature Tj °C
Operating temperature range Tamb - 40 to + 100 °C Storage temperature range Tstg - 55 to + 100 °C
Document Number 83169 www.vishay.com Rev. 1.5, 31-Aug-04
