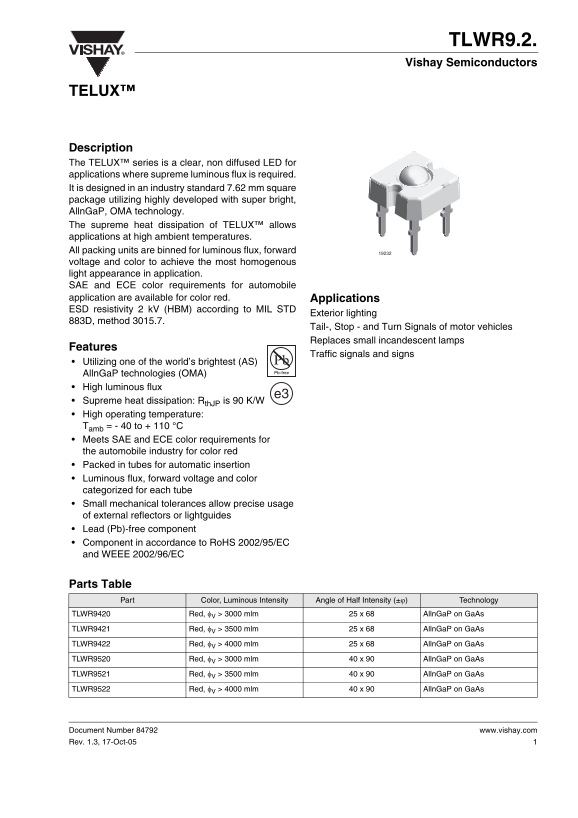

TLWR9.2. Vishay Semiconductors
TELUX™
Description The TELUX™ series is a clear, non diffused LED for applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed with super bright, Alln Ga P, OMA technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux, forward voltage and color to achieve the most homogenous light appearance in application. SAE and ECE color requirements for automobile application are available for color red. Applications ESD resistivity 2 k V (HBM) according to MIL STD
Exterior lighting
883D, method 3015.7.
Tail-, Stop - and Turn Signals of motor vehicles Replaces small incandescent lamps
Features
Traffic signals and signs
Utilizing one of the world’s brightest (AS) Alln Ga P technologies (OMA) High luminous flux
Supreme heat dissipation: Rth JP is 90 K/W High operating temperature: Tamb = - 40 to + 110 °C Meets SAE and ECE color requirements for the automobile industry for color red Packed in tubes for automatic insertion Luminous flux, forward voltage and color categorized for each tube Small mechanical tolerances allow precise usage of external reflectors or lightguides Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Parts Table
Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology
TLWR9420 Red, φV > 3000 mlm 25 x 68 Alln Ga P on Ga As
TLWR9421 Red, φV > 3500 mlm 25 x 68 Alln Ga P on Ga As
TLWR9422 Red, φV > 4000 mlm 25 x 68 Alln Ga P on Ga As
TLWR9520 Red, φV > 3000 mlm 40 x 90 Alln Ga P on Ga As
TLWR9521 Red, φV > 3500 mlm 40 x 90 Alln Ga P on Ga As
TLWR9522 Red, φV > 4000 mlm 40 x 90 Alln Ga P on Ga As
Document Number 84792 www.vishay.com Rev. 1.3, 17-Oct-05
