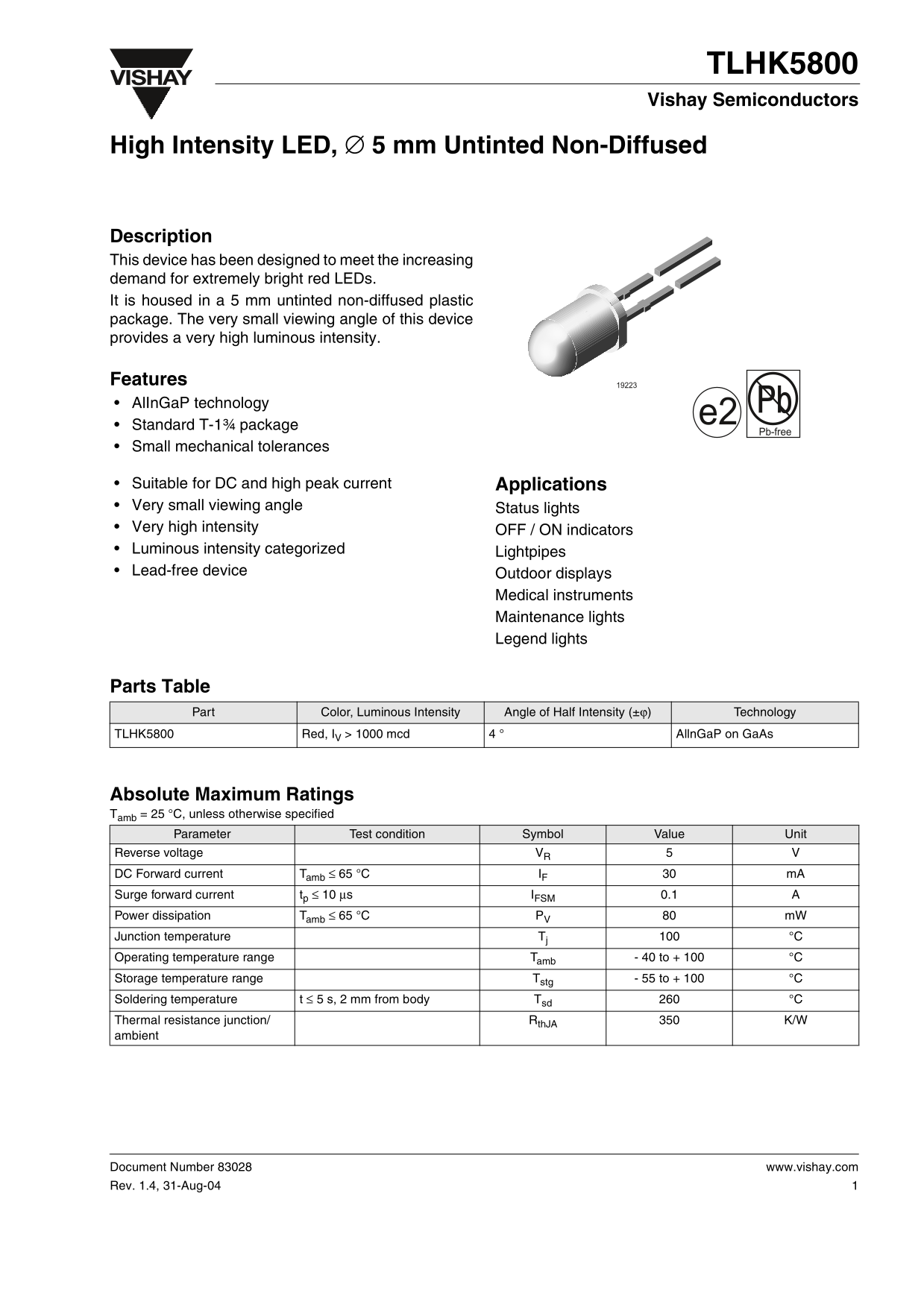

TLHK5800
VISHAY
Vishay Semiconductors
High Intensity LED, ∅ 5 mm Untinted Non-Diffused
Description This device has been designed to meet the increasing demand for extremely bright red LEDs. It is housed in a 5 mm untinted non-diffused plastic package. The very small viewing angle of this device provides a very high luminous intensity.
Features Al In Ga P technology Pb
Standard T-1¾ package
Pb-free
Small mechanical tolerances
Suitable for DC and high peak current Applications Very small viewing angle Status lights Very high intensity OFF / ON indicators Luminous intensity categorized Lightpipes Lead-free device Outdoor displays
Medical instruments Maintenance lights Legend lights
Parts Table
Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology
TLHK5800 Red, IV > 1000 mcd Alln Ga P on Ga As
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Reverse voltage VR DC Forward current Tamb ≤ 65 °C IF m A
Surge forward current tp ≤ 10 µs IFSM 0.1
Power dissipation Tamb ≤ 65 °C PV m W
Junction temperature Tj °C
Operating temperature range Tamb - 40 to + 100 °C
Storage temperature range Tstg - 55 to + 100 °C
Soldering temperature t ≤ 5 s, 2 mm from body Tsd °C Thermal resistance junction/ Rth JA K/W
ambient
Document Number 83028 www.vishay.com Rev. 1.4, 31-Aug-04
