These high-efficiency LED indicators are ideal for applications requiring precise visual signals, such as status lights, readouts, and background illumination. Available in brilliant Red, Yellow, and Green across a standard 5mm package, these components boast a small viewing angle and exceptional brightness. This manual provides comprehensive technical specifications, including detailed electrical ratings, luminous intensity variations, and operational curves. It empowers designers to select the optimal LED for demanding tasks like indicator lights and maintenance systems with guaranteed performance and uniform color appearance.

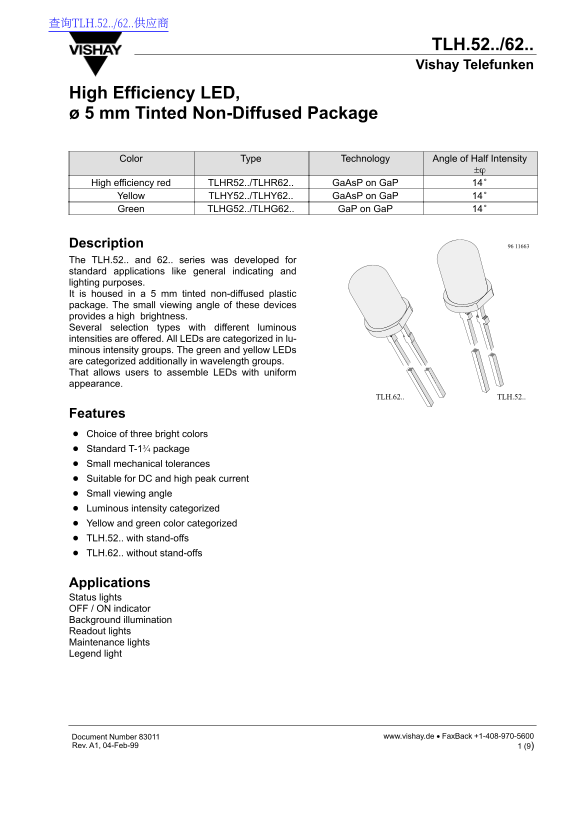

Page 1 Text Content
查询TLH.52../62..供应商
TLH.52../62.. Vishay Telefunken
High Efficiency LED, ø 5 mm Tinted Non-Diffused Package
Color Type Technology Angle of Half Intensity
High efficiency red TLHR52../TLHR62.. Ga As P on Ga P Yellow TLHY52../TLHY62.. Ga As P on Ga P Green TLHG52../TLHG62.. Ga P on Ga P
Description 96 11663 The TLH.52.. and 62.. series was developed for standard applications like general indicating and lighting purposes. It is housed in a 5 mm tinted non-diffused plastic package. The small viewing angle of these devices provides a high brightness. Several selection types with different luminous intensities are offered. All LEDs are categorized in lu- minous intensity groups. The green and yellow LEDs are categorized additionally in wavelength groups. That allows users to assemble LEDs with uniform appearance.
TLH.62.. TLH.52..
Features Choice of three bright colors Standard T-1 package Small mechanical tolerances Suitable for DC and high peak current Small viewing angle Luminous intensity categorized Yellow and green color categorized TLH.52.. with stand-offs TLH.62.. without stand-offs
Applications Status lights OFF / ON indicator Background illumination Readout lights Maintenance lights Legend light
www.vishay.de • Fax Back +1-408-970-5600Document Number 83011
1 (9)Rev. A1, 04-Feb-99
Page Summary Contents For Vishay TLH.52.. 62.. Data Sheet
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 9 |
| File Size | 131.33 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Which colors are available in the TLH.52../62.. series?
Three bright colors—Red, Yellow, and Green—are offered in this LED series.
What is the maximum recommended soldering temperature?
The allowable soldering temperature (t) is T ≤ 260°C for a period of t ≤ 5 s, applied at least 2 mm from the body.
Are all operating parameters universal across applications?
No; all operating parameters must be validated by the customer for each specific application.
Is this product certified free of Ozone Depleting Substances (ODS)?
Vishay offers certification that the semiconductors are not manufactured with, nor do they contain, ozone depleting substances.
