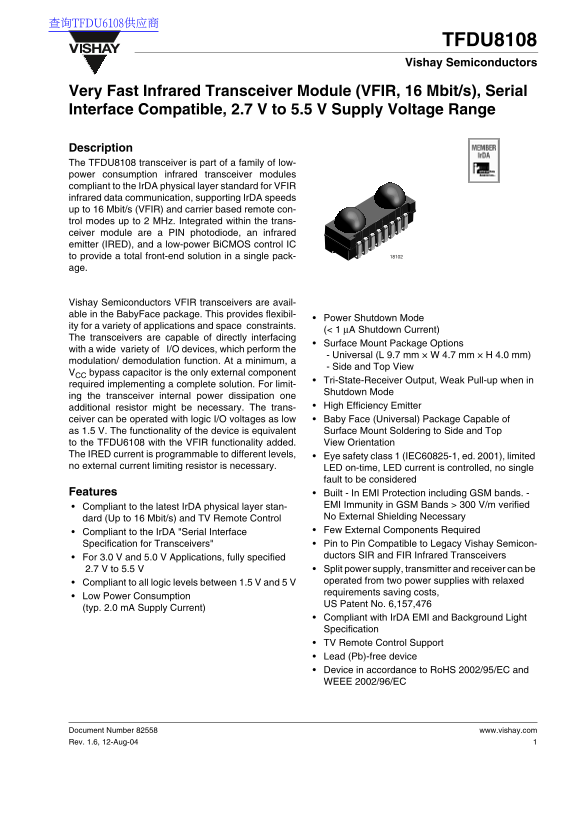

TFDU8108 Vishay Semiconductors

Very Fast Infrared Transceiver Module (VFIR, 16 Mbit/s), Serial Interface Compatible, 2.7 V to 5.5 V Supply Voltage Range

Description The TFDU8108 transceiver is part of a family of low- power consumption infrared transceiver modules compliant to the Ir DA physical layer standard for VFIR infrared data communication, supporting Ir DA speeds up to 16 Mbit/s (VFIR) and carrier based remote con- trol modes up to 2 MHz. Integrated within the trans- ceiver module are a PIN photodiode, an infrared emitter (IRED), and a low-power Bi CMOS control IC to provide a total front-end solution in a single pack- age.

Vishay Semiconductors VFIR transceivers are avail- able in the Baby Face package. This provides flexibil-

Power Shutdown Mode

ity for a variety of applications and space constraints.

(< 1 µA Shutdown Current)

The transceivers are capable of directly interfacing

Surface Mount Package Options

with a wide variety of I/O devices, which perform the

- Universal (L 9.7 mm × W 4.7 mm × H 4.0 mm)

modulation/ demodulation function. At a minimum, a

- Side and Top View

VCC bypass capacitor is the only external component

Tri-State-Receiver Output, Weak Pull-up when in

required implementing a complete solution. For limit-

Shutdown Mode

ing the transceiver internal power dissipation one

additional resistor might be necessary. The trans- High Efficiency Emitter ceiver can be operated with logic I/O voltages as low Baby Face (Universal) Package Capable of as 1.5 V. The functionality of the device is equivalent Surface Mount Soldering to Side and Top to the TFDU6108 with the VFIR functionality added. View Orientation

The IRED current is programmable to different levels, Eye safety class 1 (IEC60825-1, ed. 2001), limited no external current limiting resistor is necessary. LED on-time, LED current is controlled, no single

fault to be considered

Features Built - In EMI Protection including GSM bands. -

Compliant to the latest Ir DA physical layer stan- EMI Immunity in GSM Bands > 300 V/m verified dard (Up to 16 Mbit/s) and TV Remote Control No External Shielding Necessary Compliant to the Ir DA "Serial Interface Few External Components Required Specification for Transceivers" Pin to Pin Compatible to Legacy Vishay Semicon- For 3.0 V and 5.0 V Applications, fully specified ductors SIR and FIR Infrared Transceivers 2.7 V to 5.5 V Split power supply, transmitter and receiver can be Compliant to all logic levels between 1.5 V and 5 V operated from two power supplies with relaxed requirements saving costs,

Low Power Consumption

US Patent No. 6,157,476

(typ. 2.0 m A Supply Current)

Compliant with Ir DA EMI and Background Light Specification TV Remote Control Support Lead (Pb)-free device Device in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC

Document Number 82558 www.vishay.com Rev. 1.6, 12-Aug-04
