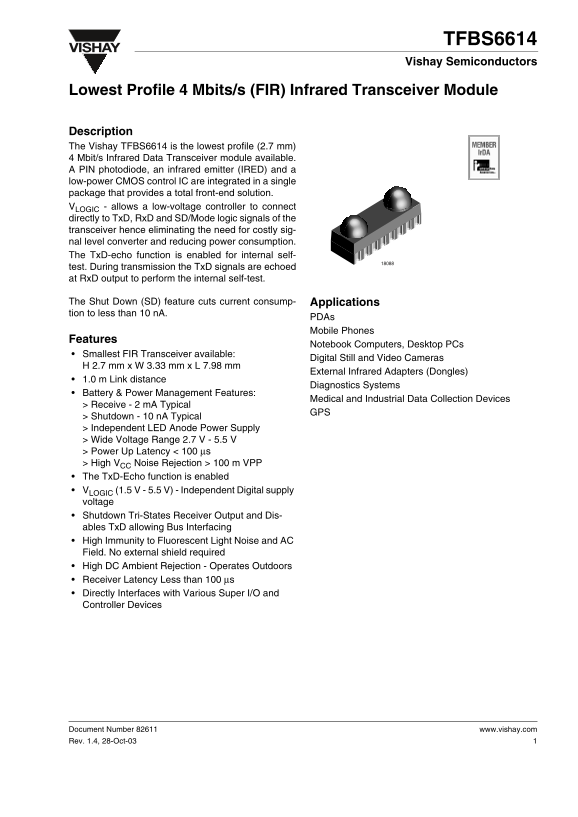

TFBS6614
VISHAY
Vishay Semiconductors
Lowest Profile 4 Mbits/s (FIR) Infrared Transceiver Module
Description The Vishay TFBS6614 is the lowest profile (2.7 mm) 4 Mbit/s Infrared Data Transceiver module available. A PIN photodiode, an infrared emitter (IRED) and a low-power CMOS control IC are integrated in a single package that provides a total front-end solution. VLOGIC - allows a low-voltage controller to connect directly to Tx D, Rx D and SD/Mode logic signals of the transceiver hence eliminating the need for costly sig- nal level converter and reducing power consumption. The Tx D-echo function is enabled for internal self- test. During transmission the Tx D signals are echoed at Rx D output to perform the internal self-test.
The Shut Down (SD) feature cuts current consump- Applications tion to less than 10 n A.
PDAs Mobile Phones
Features
Notebook Computers, Desktop PCs
Smallest FIR Transceiver available:
Digital Still and Video Cameras
H 2.7 mm x W 3.33 mm x L 7.98 mm
External Infrared Adapters (Dongles)
1.0 m Link distance
Diagnostics Systems
Battery & Power Management Features:
Medical and Industrial Data Collection Devices
> Receive - 2 m A Typical
> Shutdown - 10 n A Typical > Independent LED Anode Power Supply > Wide Voltage Range 2.7 V - 5.5 V > Power Up Latency < 100 µs > High VCC Noise Rejection > 100 m VPP The Tx D-Echo function is enabled VLOGIC (1.5 V - 5.5 V) - Independent Digital supply voltage Shutdown Tri-States Receiver Output and Dis- ables Tx D allowing Bus Interfacing High Immunity to Fluorescent Light Noise and AC Field. No external shield required High DC Ambient Rejection - Operates Outdoors Receiver Latency Less than 100 µs Directly Interfaces with Various Super I/O and Controller Devices
