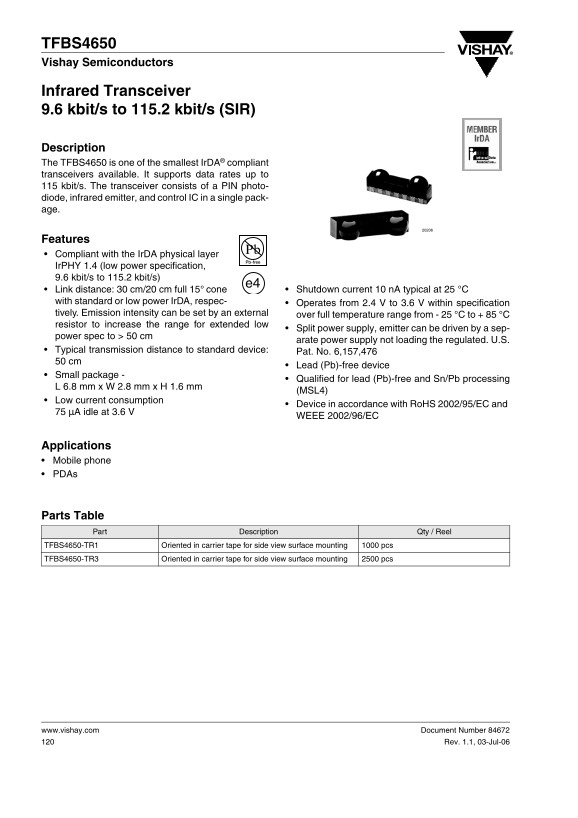

TFBS4650 Vishay Semiconductors

Infrared Transceiver 9.6 kbit/s to 115.2 kbit/s (SIR)

Description The TFBS4650 is one of the smallest Ir DA® compliant transceivers available. It supports data rates up to 115 kbit/s. The transceiver consists of a PIN photo- diode, infrared emitter, and control IC in a single pack- age.

Features Compliant with the Ir DA physical layer Ir PHY 1.4 (low power specification, 9.6 kbit/s to 115.2 kbit/s)

Link distance: 30 cm/20 cm full 15° cone Shutdown current 10 n A typical at 25 °C

with standard or low power Ir DA, respec- Operates from 2.4 V to 3.6 V within specification tively. Emission intensity can be set by an external over full temperature range from - 25 °C to + 85 °C resistor to increase the range for extended low

Split power supply, emitter can be driven by a sep-

power spec to > 50 cm

arate power supply not loading the regulated. U.S.

Typical transmission distance to standard device: Pat. No. 6,157,476 50 cm

Lead (Pb)-free device

Small package -

Qualified for lead (Pb)-free and Sn/Pb processing

L 6.8 mm x W 2.8 mm x H 1.6 mm

(MSL4)

Low current consumption

Device in accordance with Ro HS 2002/95/EC and

75 µA idle at 3.6 V

WEEE 2002/96/EC

Applications • Mobile phone • PDAs

Parts Table

Part Description Qty / Reel

TFBS4650-TR1 Oriented in carrier tape for side view surface mounting 1000 pcs TFBS4650-TR3 Oriented in carrier tape for side view surface mounting 2500 pcs

www.vishay.com Document Number 84672

Rev. 1.1, 03-Jul-06

Page Summary Contents For Vishay TFBS4650 Specifications and User Guide

Page 1 TFBS4650 Vishay Semiconductors Infrared Transceiver 9.6 kbit/s to 115.2 kbit/s (SIR) Description The TFBS4650 is one of the smallest Ir DA® compliant transceivers available. It supports data rates up ...
Page 2 TFBS4650 Vishay Semiconductors Functional Block Diagram PD Tri-State Driver Comparator Rx DAmplifier IREDA SD IRED Driver Mode Control IRED IREDC Pin Description Pin Number Function Description I/O Ac...
Page 3 TFBS4650 Vishay Semiconductors Absolute Maximum Ratings Reference point Pin, GND unless otherwise noted. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing. Param...
Page 4 TFBS4650 Vishay Semiconductors Electrical Characteristics Transceiver Tamb = 25 °C, VCC = 2.4 V to 3.6 V unless otherwise noted. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to p...
Page 5 TFBS4650 Vishay Semiconductors Optoelectronic Characteristics Receiver Tamb = 25 °C, VCC = 2.4 V to 3.6 V unless otherwise noted. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to ...
Page 6 TFBS4650 Vishay Semiconductors Transmitter Tamb = 25 °C, VCC = 2.4 V to 3.6 V unless otherwise noted. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing. Paramete...
Page 7 TFBS4650 Vishay Semiconductors Recommended Circuit Diagram Operated at a clean low impedance power supply the recommended to position C2 as close as possible to TFBS4650 needs only one additional exte...
Page 8 TFBS4650 Vishay Semiconductors em er at re /° Recommended Solder Profiles Solder Profile for Sn/Pb soldering Manual Soldering Manual soldering is the standard method for lab use. However, for a produc...
Page 9 TFBS4650 Vishay Semiconductors Package Dimensions Figure 4. TFBS4650 mechanical dimensions, tolerance ± 0.2 mm, if not otherwise mentioned Figure 5. TFBS4650 soldering footprint, tolerance ± 0.2 mm, i...
Page 10 TFBS4650 Vishay Semiconductors Reel Dimensions Drawing-No.: 9.800-5090.01-4 Issue: 1; 29.11.05 Tape Width A max. W1 min. W2 max. W3 min. W3 max. mm mm mm mm mm mm mm Document Number 84672 www.vishay.c...
Page 11 TFBS4650 Vishay Semiconductors Tape Dimensions in mm www.vishay.com Document Number 84672 Rev. 1.1, 03-Jul-06
Page 12 TFBS4650 Vishay Semiconductors Ozone Depleting Substances Policy Statement It is the policy of Vishay Semiconductor Gmb H to 1. Meet all present and future national and international statutory require...
Page 13 Legal Disclaimer Notice Vishay Notice Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc., or anyone on its behalf, assumes no responsibi...
