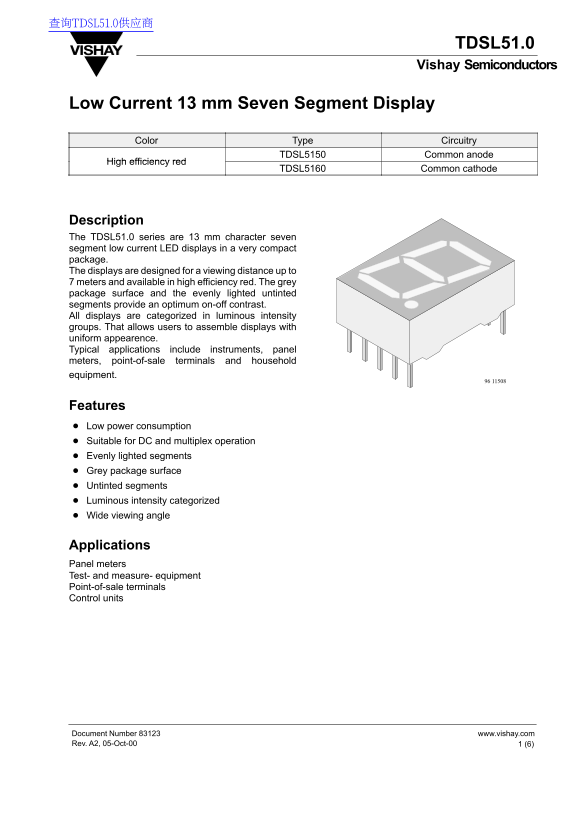

TDSL51.0 Vishay Semiconductors
Low Current 13 mm Seven Segment Display Color Type Circuitry
TDSL5150 Common anode
High efficiency red
TDSL5160 Common cathode
Description The TDSL51.0 series are 13 mm character seven segment low current LED displays in a very compact package. The displays are designed for a viewing distance up to 7 meters and available in high efficiency red. The grey package surface and the evenly lighted untinted segments provide an optimum on-off contrast. All displays are categorized in luminous intensity groups. That allows users to assemble displays with uniform appearence. Typical applications include instruments, panel meters, point-of-sale terminals and household equipment.
Features Low power consumption Suitable for DC and multiplex operation Evenly lighted segments Grey package surface Untinted segments Luminous intensity categorized Wide viewing angle
Applications Panel meters Test- and measure- equipment Point-of-sale terminals Control units
www.vishay.com Document Number 83123
1 (6)Rev. A2, 05-Oct-00
