This advanced reflective optical sensor is designed for reliable, general-purpose touchless switch applications. Utilizing the patented HALIOS® principle, it ensures superior ambient light suppression, maintaining performance even in bright environments like sunlight. The manual provides comprehensive technical documentation details, including electrical characteristics, system integration guidelines, and detailed operating curves, making it an essential resource for engineers needing to select and maximize its reliability within sophisticated sensing systems.

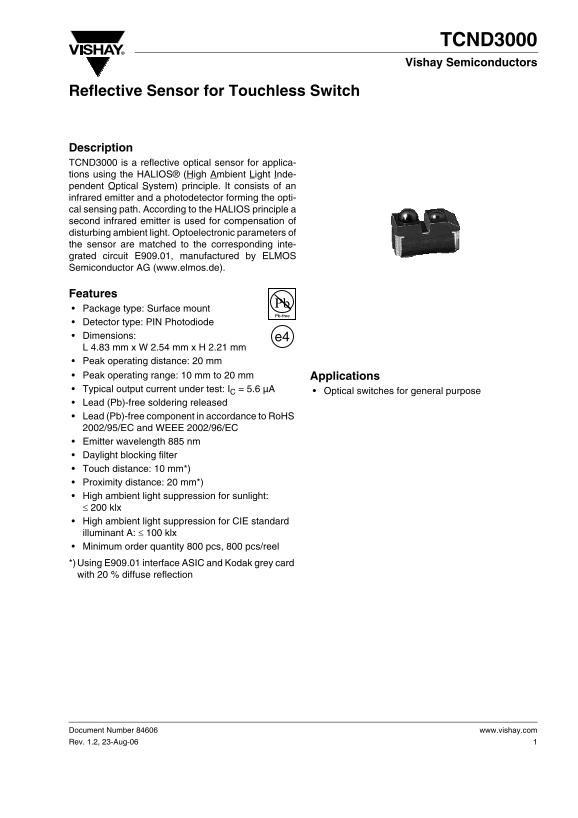

Page 1 Text Content
TCND3000 Vishay Semiconductors
Reflective Sensor for Touchless Switch
Description TCND3000 is a reflective optical sensor for applica- tions using the HALIOS® (High Ambient Light Inde- pendent Optical System) principle. It consists of an infrared emitter and a photodetector forming the opti- cal sensing path. According to the HALIOS principle a second infrared emitter is used for compensation of disturbing ambient light. Optoelectronic parameters of the sensor are matched to the corresponding inte- grated circuit E909.01, manufactured by ELMOS Semiconductor AG (www.elmos.de).
Features Package type: Surface mount Detector type: PIN Photodiode Dimensions: e4 L 4.83 mm x W 2.54 mm x H 2.21 mm Peak operating distance: 20 mm Peak operating range: 10 mm to 20 mm Applications Typical output current under test: IC = 5.6 µA Optical switches for general purpose Lead (Pb)-free soldering released Lead (Pb)-free component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC Emitter wavelength 885 nm Daylight blocking filter Touch distance: 10 mm*) Proximity distance: 20 mm*) High ambient light suppression for sunlight: ≤ 200 klx High ambient light suppression for CIE standard illuminant A: ≤ 100 klx Minimum order quantity 800 pcs, 800 pcs/reel Using E909.01 interface ASIC and Kodak grey card with 20 % diffuse reflection
Document Number 84606 www.vishay.com Rev. 1.2, 23-Aug-06
Page Summary Contents For Vishay - TCND3000 Data Sheet
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 9 |
| File Size | 148.55 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operational range and detection distance of this sensor?
The peak operating range is 10 mm to 20 mm, with a typical touch distance set at 10 mm.
How does the sensor handle strong ambient light, like sunlight?
It uses the HALIOS® principle, which employs a second infrared emitter for compensation, offering high suppression (≤ 200 klx for sunlight).
Is this component suitable for lead-free or environmentally regulated soldering processes?
Yes, it is a Lead (Pb)-free component in accordance with RoHS and WEEE directives.
What interface ASIC is utilized for connecting this sensor to a system?
The optoelectronic parameters are matched to the E909.01 integrated circuit manufactured by ELMOS Semiconductor AG.
