Vishay SiP41109 41110 Data Sheet

Summary

Optimize your power electronics designs with these high-speed half-bridge low-side MOSFET gate drivers. Ideal for demanding DC/DC conversion circuits spanning multiple phases and core voltage supplies. The units feature multi-phase capability, PWM control, and integrated adaptive shoot-through protection, allowing reliable operation up to 1 MHz in critical systems like mobile computing and PC microprocessors. This manual provides comprehensive technical specifications on performance parameters, recommended operating ranges, and application circuit details necessary for seamless integration into high-power designs.

📄 Preview PAGE OF 7

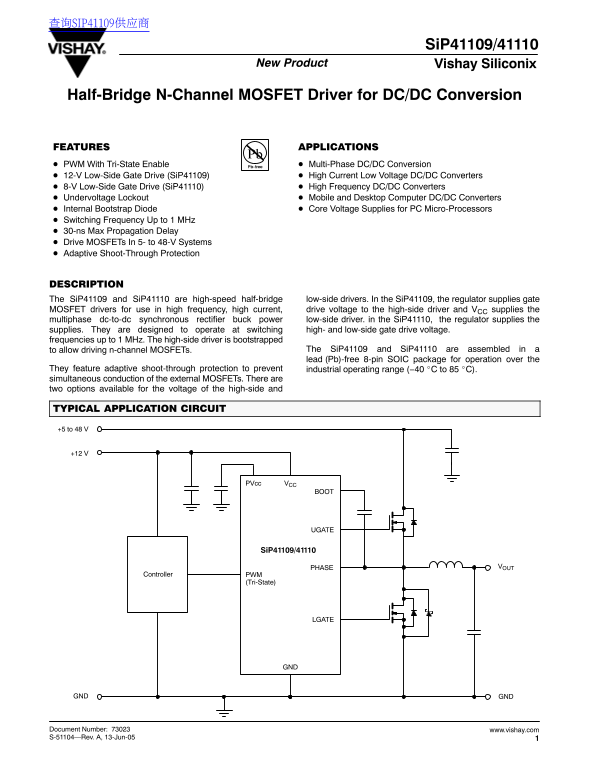

Page 1 Text Content

查询SIP41109供应商

Si P41109/41110 Vishay Siliconix New Product

Half-Bridge N-Channel MOSFET Driver for DC/DC Conversion

FEATURES APPLICATIONS

PWM With Tri-State Enable Multi-Phase DC/DC Conversion 12-V Low-Side Gate Drive (Si P41109) High Current Low Voltage DC/DC Converters 8-V Low-Side Gate Drive (Si P41110) High Frequency DC/DC Converters Undervoltage Lockout Mobile and Desktop Computer DC/DC Converters Internal Bootstrap Diode Core Voltage Supplies for PC Micro-Processors

Switching Frequency Up to 1 MHz 30-ns Max Propagation Delay Drive MOSFETs In 5- to 48-V Systems Adaptive Shoot-Through Protection

DESCRIPTION The Si P41109 and Si P41110 are high-speed half-bridge low-side drivers. In the Si P41109, the regulator supplies gate MOSFET drivers for use in high frequency, high current, drive voltage to the high-side driver and VCC supplies the multiphase dc-to-dc synchronous rectifier buck power low-side driver. in the Si P41110, the regulator supplies the supplies. They are designed to operate at switching high- and low-side gate drive voltage. frequencies up to 1 MHz. The high-side driver is bootstrapped

to allow driving n-channel MOSFETs. The Si P41109 and Si P41110 are assembled in a lead (Pb)-free 8-pin SOIC package for operation over the

They feature adaptive shoot-through protection to prevent industrial operating range (−40 C to 85 C). simultaneous conduction of the external MOSFETs. There are two options available for the voltage of the high-side and

TYPICAL APPLICATION CIRCUIT

+5 to 48 V

PVcc VCC

UGATE

Si P41109/41110

PHASE VOUT

Controller PWM

(Tri-State)

LGATE

GNDGND

Document Number: 73023 www.vishay.com S-51104—Rev. A, 13-Jun-05

Page Summary Contents For Vishay SiP41109 41110 Data Sheet

Page 1 查询SIP41109供应商 Si P41109/41110 Vishay Siliconix New Product Half-Bridge N-Channel MOSFET Driver for DC/DC Conversion FEATURES APPLICATIONS PWM With Tri-State Enable Multi-Phase DC/DC Conversion 12-V Lo...
Page 2 Si P41109/41110 Vishay Siliconix New Product ABSOLUTE MAXIMUM RATINGS (ALL VOLTAGES REFERENCED TO GND = 0 V) V CC, PVCC −0.3 to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 3 Si P41109/41110 Vishay Siliconix New Product SPECIFICATIONSa Limits Test Conditions Unless Specified VCC = 12 V, VBOOT − VPHASE = 8 V TA = −40 to 85CParameter Unit Maxa Typb Mina Symbol MOSFET Driver...
Page 4 Si P41109/41110 Vishay Siliconix New Product TIMING WAVEFORMS UGate 90% 90% tf H tr H LGate 10%10% tr L tf L td(off)H td(off)L td(on)H td(on)L Phase PIN CONFIGURATION AND TRUTH TABLE TRUTH TABLE 1UGAT...
Page 5 Si P41109/41110 Vishay Siliconix New Product FUNCTIONAL BLOCK DIAGRAM +8-V Linear VCC BOOT Regulator UGATE UVLO OTP Linear PHASE Regulator +5 V Tri-State Detect VBBM LGATE Si P41109 − VDRL = VCC (12 V...
Page 6 Si P41109/41110 Vishay Siliconix New Product where QGATE is the gate charge needed to turn on the VCC Bypass Capacitor high-side MOSFET and VBOOT − PHASE is the amount of droop allowed in the bootstr...
Page 7 Si P41109/41110 Vishay Siliconix New Product TYPICAL WAVEFORMS Figure 3. PWM Signal vs. HS Gate, LS Gate Figure 2. PWM Signal vs. HS Gate, LS Gate and PHASE (Falling) and PHASE (Rising) PWM PWM 5 V/di...

Manual Details

Brand Vishay
Pages 7
File Size 98.46 KB
Published June 02, 2026
35 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What protection prevents simultaneous conduction of external MOSFETs?

Adaptive shoot-through protection is utilized to prevent the simultaneous conduction of external MOSFETs.

What is the specified operating temperature range?

The recommended operating temperature range is -40 to 85°C.

What type of DC/DC conversion are these drivers designed for?

They are high-speed half-bridge low-side drivers used for high current, low voltage DC/DC converters.

How does the device handle overheating?

If the die temperature rises above 165°C, Thermal Protection disables the drivers and re-enables them after it drops below 140°C.
