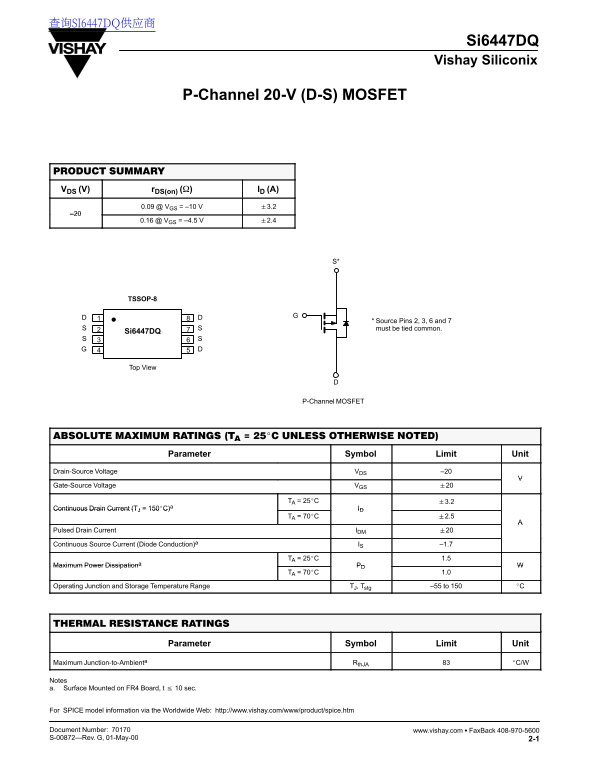

Si6447DQ Vishay Siliconix
P-Channel 20-V (D-S) MOSFET
VDS (V) r DS(on) () ID (A)
0.09 @ VGS = –10 V 3.2
0.16 @ VGS = –4.5 V 2.4
TSSOP-8
Source Pins 2, 3, 6 and 7 must be tied common.
Si6447DQ
Top View
P-Channel MOSFET
Parameter Symbol Limit Unit
Drain-Source Voltage VDS –20
Gate-Source Voltage VGS
TA = 25C 3.2
Continuous Drain Current (TJ = 150C)a ID
TA = 70C 2.5
Pulsed Drain Current IDM
Continuous Source Current (Diode Conduction)a IS –1.7
TA = 25C 1.5
Maximum Power Dissipationa PD
TA = 70C 1.0
Operating Junction and Storage Temperature Range TJ, Tstg –55 to 150
Parameter Symbol Limit Unit
Maximum Junction-to-Ambienta Rth JA C/W
Notes a. Surface Mounted on FR4 Board, t 10 sec.
For SPICE model information via the Worldwide Web: http://www.vishay.com/www/product/spice.htm
Document Number: 70170 www.vishay.com Fax Back 408-970-5600 S-00872—Rev. G, 01-May-00 2-1
