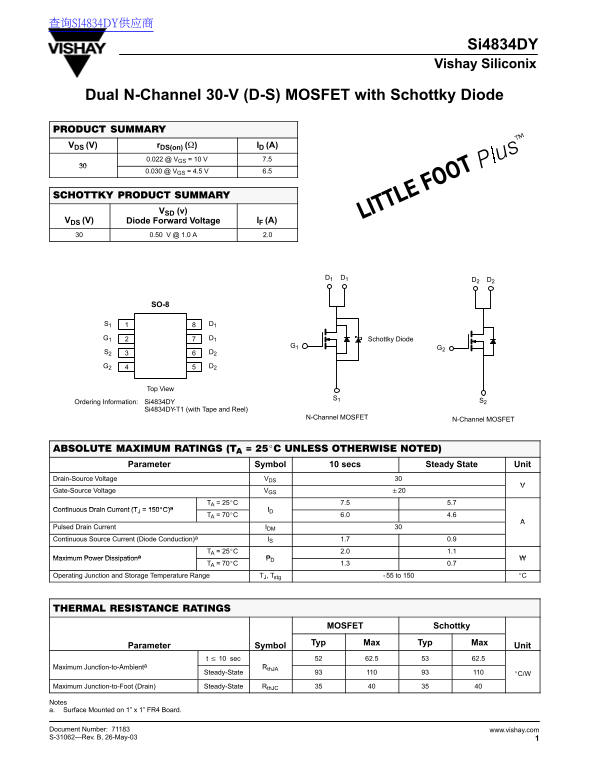

Si4834DY Vishay Siliconix
Dual N-Channel 30-V (D-S) MOSFET with Schottky Diode
PRODUCT SUMMARY VDS (V) r DS(on) () ID (A)
0.022 @ VGS = 10 V 7.5 0.030 @ VGS = 4.5 V 6.5
SCHOTTKY PRODUCT SUMMARY
VSD (v)
VDS (V) Diode Forward Voltage IF (A)
G1 D1 Schottky Diode
Top View
Ordering Information: Si4834DY S2
Si4834DY-T1 (with Tape and Reel)
N-Channel MOSFET
N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TA = 25C UNLESS OTHERWISE NOTED)
Parameter Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS Gate-Source Voltage VGS
TA = 25C 7.5 5.7
Continuous Drain Current (TJ = 150C)a ID
TA = 70C 6.0 4.6
Pulsed Drain Current IDM Continuous Source Current (Diode Conduction)a IS 1.7 0.9
TA = 25C 2.0 1.1
Maximum Power Dissipationa PD
TA = 70C 1.3 0.7
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 150
THERMAL RESISTANCE RATINGS
MOSFET Schottky Typ Max Typ Max
Parameter Symbol Unit
t 10 sec 62.5 62.5
ax mum unc ti on- o- bi en ta th JA
Steady-State C/W
Maximum Junction-to-Foot (Drain) Steady-State Rth JC
Notes a. Surface Mounted on 1” x 1” FR4 Board.
Document Number: 71183 www.vishay.com S-31062—Rev. B, 26-May-03
