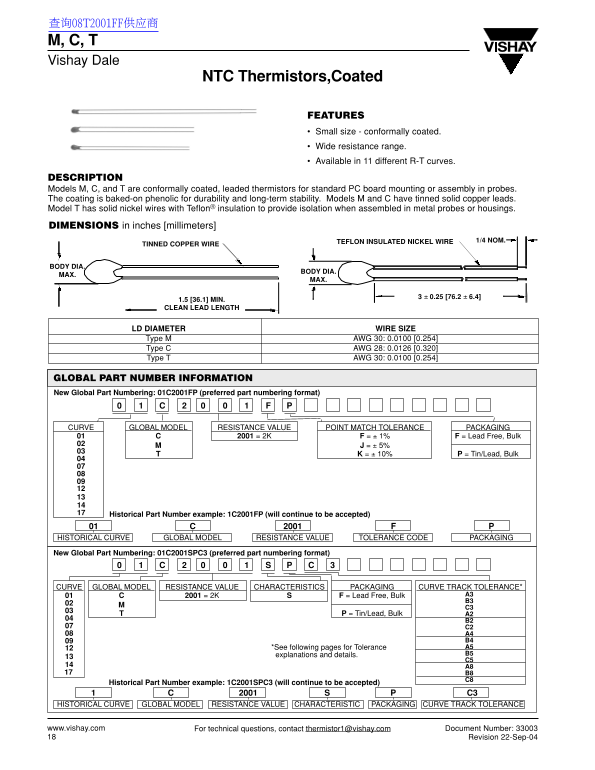

Page 1 Text Content
查询08T2001FF供应商 M, C, T Vishay Dale
NTC Thermistors,Coated
FEATURES Small size - conformally coated. Wide resistance range. Available in 11 different R-T curves.
DESCRIPTION Models M, C, and T are conformally coated, leaded thermistors for standard PC board mounting or assembly in probes. The coating is baked-on phenolic for durability and long-term stability. Models M and C have tinned solid copper leads. Model T has solid nickel wires with Teflon® insulation to provide isolation when assembled in metal probes or housings. DIMENSIONS in inches [millimeters]
TEFLON INSULATED NICKEL WIRE 1/4 NOM.
TINNED COPPER WIRE
BODY DIA.
BODY DIA.
1.5 [36.1] MIN. CLEAN LEAD LENGTH
LD DIAMETER WIRE SIZE Type M AWG 30: 0.0100 [0.254] Type C AWG 28: 0.0126 [0.320] Type T AWG 30: 0.0100 [0.254]
GLOBAL PART NUMBER INFORMATION New Global Part Numbering: 01C2001FP (preferred part numbering format)
CURVE GLOBAL MODEL RESISTANCE VALUE POINT MATCH TOLERANCE PACKAGING
2001 = 2K F = ± 1% F = Lead Free, Bulk
J = ± 5% K = ± 10% P = Tin/Lead, Bulk
Historical Part Number example: 1C2001FP (will continue to be accepted)
HISTORICAL CURVE GLOBAL MODEL RESISTANCE VALUE TOLERANCE CODE PACKAGING
New Global Part Numbering: 01C2001SPC3 (preferred part numbering format)
CURVE GLOBAL MODEL RESISTANCE VALUE CHARACTERISTICS PACKAGING CURVE TRACK TOLERANCE*
2001 = 2K F = Lead Free, Bulk A3 B3 C3
P = Tin/Lead, Bulk A2
B2 C2 A4 B4 *See following pages for Tolerance A5 explanations and details. B5 C5 A8 B8 C8
Historical Part Number example: 1C2001SPC3 (will continue to be accepted)
HISTORICAL CURVE GLOBAL MODEL RESISTANCE VALUE CHARACTERISTIC PACKAGING CURVE TRACK TOLERANCE
www.vishay.com For technical questions, contact [email protected] Document Number: 33003
Revision 22-Sep-04
