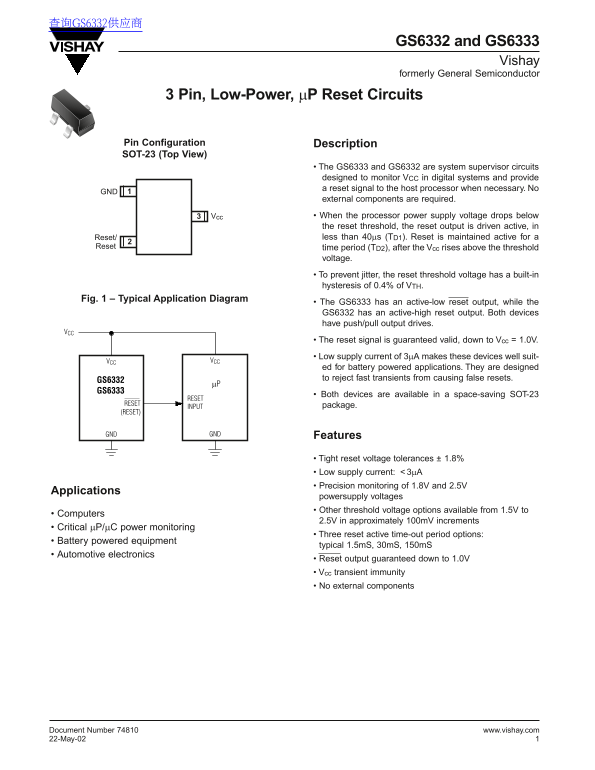

GS6332 and GS6333
Vishay
formerly General Semiconductor
3 Pin, Low-Power, µP Reset Circuits
Pin Configuration Description SOT-23 (Top View)
• The GS6333 and GS6332 are system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No
external components are required. Vcc • When the processor power supply voltage drops below the reset threshold, the reset output is driven active, in Reset/ less than 40µs (TD1). Reset is maintained active for a
Reset time period (TD2), after the Vcc rises above the threshold
voltage. • To prevent jitter, the reset threshold voltage has a built-in hysteresis of 0.4% of VTH.
Fig. 1 – Typical Application Diagram
• The GS6333 has an active-low reset output, while the GS6332 has an active-high reset output. Both devices have push/pull output drives.
• The reset signal is guaranteed valid, down to Vcc = 1.0V. • Low supply current of 3µA makes these devices well suit-
VCC VCC
ed for battery powered applications. They are designed to reject fast transients from causing false resets.
GS6332
GS6333
• Both devices are available in a space-saving SOT-23
RESET
RESET package.
INPUT
(RESET)
GND GND Features
• Tight reset voltage tolerances ± 1.8% • Low supply current: 3µA • Precision monitoring of 1.8V and 2.5V
Applications
powersupply voltages • Other threshold voltage options available from 1.5V to
• Computers
2.5V in approximately 100m V increments
• Critical µP/µC power monitoring
• Three reset active time-out period options:
• Battery powered equipment
typical 1.5m S, 30m S, 150m S
• Automotive electronics
• Reset output guaranteed down to 1.0V • Vcc transient immunity • No external components
Document Number 74810 www.vishay.com 22-May-02
