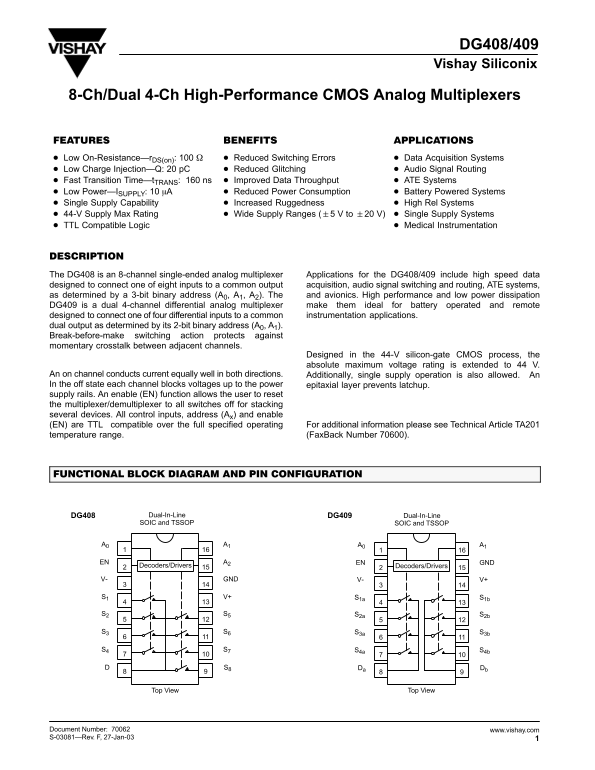

Page 1 Text Content

DG408/409 Vishay Siliconix

8-Ch/Dual 4-Ch High-Performance CMOS Analog Multiplexers

FEATURES BENEFITS APPLICATIONS

Low On-Resistance—r DS(on): 100 Reduced Switching Errors Data Acquisition Systems Low Charge Injection—Q: 20 p C Reduced Glitching Audio Signal Routing Fast Transition Time—t TRANS: 160 ns Improved Data Throughput ATE Systems Low Power—ISUPPLY: 10 A Reduced Power Consumption Battery Powered Systems Single Supply Capability Increased Ruggedness High Rel Systems 44-V Supply Max Rating Wide Supply Ranges (5 V to 20 V) Single Supply Systems

TTL Compatible Logic Medical Instrumentation

DESCRIPTION

The DG408 is an 8-channel single-ended analog multiplexer Applications for the DG408/409 include high speed data designed to connect one of eight inputs to a common output acquisition, audio signal switching and routing, ATE systems, as determined by a 3-bit binary address (A0, A1, A2). The and avionics. High performance and low power dissipation DG409 is a dual 4-channel differential analog multiplexer make them ideal for battery operated and remote designed to connect one of four differential inputs to a common instrumentation applications.

dual output as determined by its 2-bit binary address (A0, A1). Break-before-make switching action protects against momentary crosstalk between adjacent channels.

Designed in the 44-V silicon-gate CMOS process, the absolute maximum voltage rating is extended to 44 V.

An on channel conducts current equally well in both directions. Additionally, single supply operation is also allowed. An In the off state each channel blocks voltages up to the power epitaxial layer prevents latchup. supply rails. An enable (EN) function allows the user to reset the multiplexer/demultiplexer to all switches off for stacking several devices. All control inputs, address (Ax) and enable (EN) are TTL compatible over the full specified operating For additional information please see Technical Article TA201 temperature range. (Fax Back Number 70600).

FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION

DG408 Dual-In-Line DG409 Dual-In-Line SOIC and TSSOP SOIC and TSSOP

EN A2 EN GND

Decoders/Drivers Decoders/Drivers

V- GND V- V+

S8 Da Db

Top View Top View

Document Number: 70062 www.vishay.com S-03081—Rev. F, 27-Jan-03

Page Summary Contents For Vishay DG408 409 Specifications and User Guide

Page 1 DG408/409 Vishay Siliconix 8-Ch/Dual 4-Ch High-Performance CMOS Analog Multiplexers FEATURES BENEFITS APPLICATIONS Low On-Resistance—r DS(on): 100 Reduced Switching Errors Data Acquisition Systems Low...
Page 2 DG408/409 Vishay Siliconix TRUTH TABLES AND ORDERING INFORMATION TRUTH TABLE  DG408 TRUTH TABLE  DG409 A2 A1 A0 EN On Switch A1 A0 EN On Switch None None Logic “0” VAL  0.8 V VAH 2.4 V Logic “1” X ...
Page 3 DG408/409 Vishay Siliconix SPECIFICATIONSa Test Conditions A Suffix D Suffix Unless Otherwise Specified -55 to 125C -40 to 85C V+ = 15 V, V- = -15 V Parameter Symbol VAL = 0.8 V, VAH = 2.4 Vf Tempb ...
Page 4 DG408/409 Vishay Siliconix SPECIFICATIONSa FOR SINGLE SUPPLY Test Conditions A Suffix D Suffix Unless Otherwise Specified -55 to 125C -40 to 85C Parameter Symbol VAL = 0.8 V, VAH = 2.4 Vf Tempb Typc...
Page 5 DG408/409 Vishay Siliconix TYPICAL CHARACTERISTICS (25C UNLESS NOTED) Drain Leakage Current vs. Source/Drain Voltage Source/Drain Capacitance vs. Analog Voltage (Single 12-V Supply) VS = 0 V for ID(o...
Page 6 DG408/409 Vishay Siliconix (o n) I+ TYPICAL CHARACTERISTICS (25C UNLESS NOTED) Positive Supply Current vs. Switching Frequency ISUPPLY vs. Temperature VSUPPLY = 15 V VEN = 2.4 V 100 n A -(I-) VSUPPL...
Page 7 DG408/409 t ( ns (d (o n) Vishay Siliconix TYPICAL CHARACTERISTICS (25C UNLESS NOTED) r DS(on) vs. VS and Temperature r DS(on) vs. VS and Temperature (Single Supply) VS - Source Voltage (V) VS - Sour...
Page 8 DG408/409 Vishay Siliconix SCHEMATIC DIAGRAM (TYPICAL CHANNEL) GND VREF V-Decode/ Level AX Shift Drive FIGURE 1. TEST CIRCUITS DG408 S8 10 V tr <20 ns tf <20 ns EN VO Logic V-GND Input 50% Switc...
Page 9 DG408/409 Vishay Siliconix TEST CIRCUITS DG408 A1 tr <20 ns A2 Logic tf <20 ns3 V VO Input GND V- t OFF(EN)t ON(EN) Switch Output S1a - S4a, Da DG409 A1 Db VO GND V- FIGURE 3. Enable Switching T...
Page 10 DG408/409 Vishay Siliconix TEST CIRCUITS OFF ONLogic OFF Input Channel A1 Select CL A2 Switch Output GND V- VO is the measured voltage due to charge transfer error Q, when the channel turns off. -15 V...
Page 11 DG408/409 Vishay Siliconix APPLICATION HINTS Overvoltage Protection A very convenient form of overvoltage protection consists of supply of the IC. From the point of view of the chip, nothing has addin...
